QJIT compilation with Qrack and Catalyst¶

How Qrack works¶

When developing Qrack, we wanted to provide the emulator as open source, free of charge, agnostic to any specific GPU or hardware accelerator provider, backwards compatible to serve those with very limited classical computer hardware resources, but (nonetheless) capable of scaling to supercomputer systems, as secure and free of external dependencies as possible, and under the reasonably permissive LGPL license, with bindings and wrappers for third-party libraries provided under even more permissive licenses like MIT and Apache 2.0. Our hope was that the global floor of minimal access to cost-competitive quantum workload throughput would never be lower than the capabilities of Qrack.

When simulating quantum subroutines of varying qubit widths, Qrack will transparently, automatically, and dynamically transition between GPU-based and CPU-based simulation techniques for maximal execution speed, to respond to situations when qubit registers might be too narrow to benefit from the large parallel processing element count of a GPU (up to maybe roughly 20 qubits, depending upon the classical hardware platform). Qrack also offers so-called hybrid stabilizer simulation (with fallback to universal simulation) and near-Clifford simulation with a greatly reduced memory footprint on Clifford gate sets with the inclusion of the RZ variational Pauli Z-axis rotation gate. (For more information, see the QCE’23 report 1 by the Qrack and Unitary Fund teams.)

Particularly for systems that don’t rely on GPU acceleration, Qrack offers a quantum binary decision diagram (QBDD) simulation algorithm option that might significantly reduce the memory footprint or execution complexity for circuits with low entanglement, as judged by the complexity of a QBDD to represent the state. (Qrack’s implementation of QBDD is entirely original source code, but it is based on reports like this one 2.) Qrack also offers approximation options aimed at trading off minimal fidelity reduction for maximum reduction in simulation complexity (as opposed to models of physical noise), including methods based on the Schmidt decomposition rounding parameter (SDRP) 1 and the near-Clifford rounding parameter (NCRP).

The Qrack simulator doesn’t fit neatly into a single canonical category of quantum computer simulation algorithm: it optionally and by default leverages elements of state vector simulation, tensor network simulation, stabilizer and near-Clifford simulation, and QBDD simulation, often all at once, while it introduces some novel algorithmic tricks for the Schmidt decomposition of state vectors in a manner similar to matrix product state (MPS) simulation.

Demonstrating Qrack with the quantum Fourier transform¶

The quantum Fourier transform (QFT) is a building-block subroutine of many other quantum algorithms. Qrack exhibits unique capability for many cases of the QFT algorithm, and its worst-case performance is competitive with other popular quantum computer simulators 1. In this section, you’ll be presented with examples of Qrack’s uniquely optimal performance on the QFT.

In the case of a trivial computational basis eigenstate input, Qrack can simulate basically any QFT width. Below, we pick a random eigenstate initialization and perform the QFT across a width of 60 qubits, with Catalyst’s qjit.

import pennylane as qml
from pennylane import numpy as np
from catalyst import qjit

import matplotlib.pyplot as plt

import random

qubits = 60
dev = qml.device("qrack.simulator", qubits, shots=8)

@qjit
@qml.qnode(dev)
def circuit():
    for i in range(qubits):
        if random.uniform(0, 1) < 0.5:
            qml.X(wires=[i])
    qml.QFT(wires=range(qubits))
    return qml.sample(wires=range(qubits))

def counts_from_samples(samples):
    counts = {}
    for sample in samples:
        s = 0

        for bit in sample:
            s = (s << 1) | bit

        s = str(s)

        if s in counts:
            counts[s] = counts[s] + 1
        else:
            counts[s] = 1

    return counts

counts = counts_from_samples(circuit())

plt.bar(counts.keys(), counts.values())
plt.title(f"QFT on {qubits} Qubits with Random Eigenstate Init. (8 samples)")
plt.xlabel("|x⟩")
plt.ylabel("counts")
plt.show()

In this image we have represented only 8 measurement samples so we can visualize the result more easily.

This becomes harder if we request a non-trivial initialization. In general, Qrack will use Schmidt decomposition techniques to try to break up circuits into separable subsystems of qubits to simulate semi-independently, combining them just-in-time (JIT) with Kronecker products when they need to interact, according the used circuit definition.

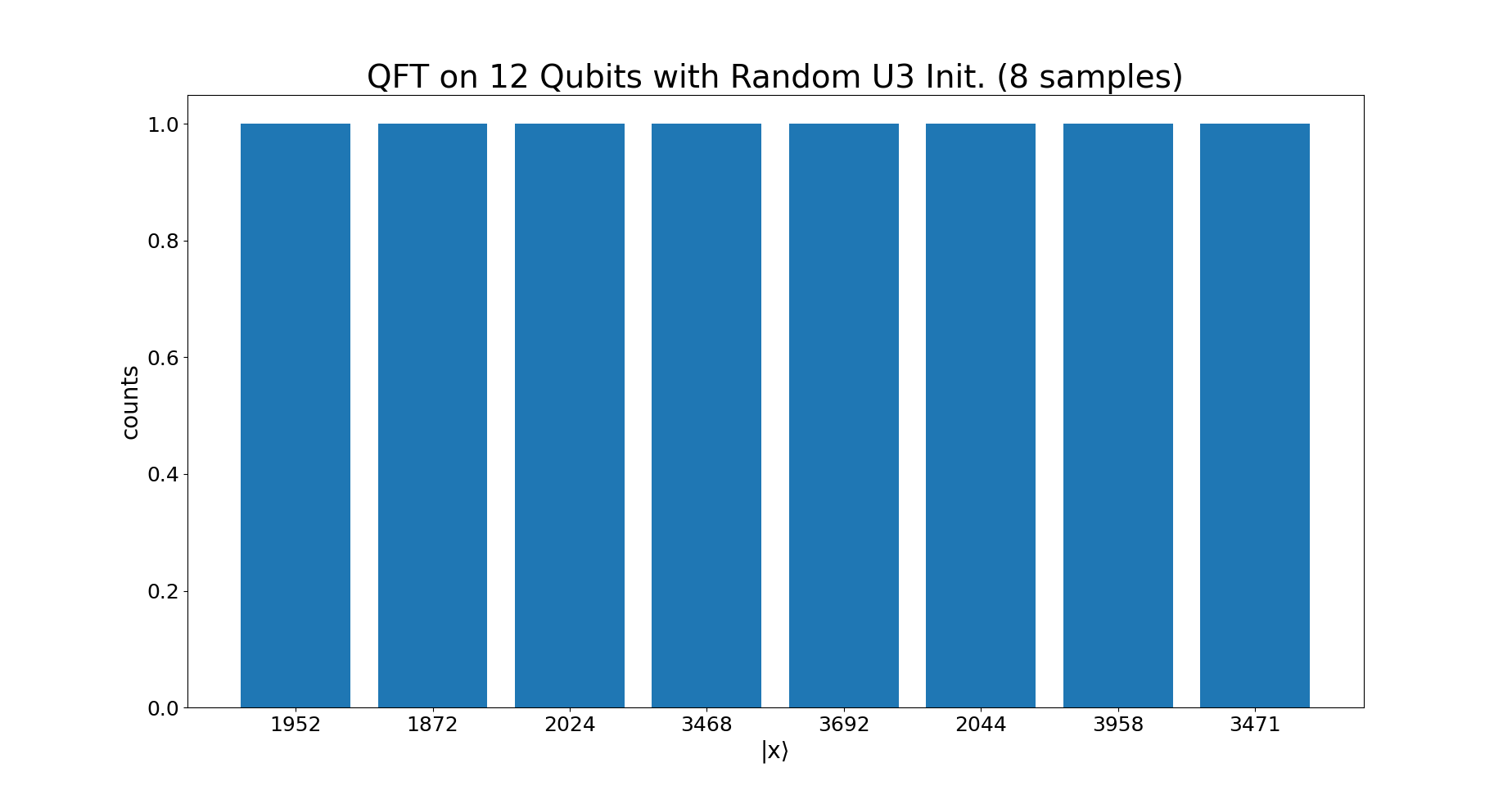

The circuit becomes much harder for Qrack if we randomly initialize the input qubits with Haar-random U3 gates, which you can see below, but the performance is still significantly better than the worst case (of GHZ state initialization).

qubits = 12
dev = qml.device("qrack.simulator", qubits, shots=8)

@qjit
@qml.qnode(dev)
def circuit():
    for i in range(qubits):
        th = random.uniform(0, np.pi)
        ph = random.uniform(0, np.pi)
        dl = random.uniform(0, np.pi)
        qml.U3(th, ph, dl, wires=[i])
    qml.QFT(wires=range(qubits))
    return qml.sample(wires=range(qubits))

counts = counts_from_samples(circuit())

plt.bar(counts.keys(), counts.values())
plt.title(f"QFT on {qubits} Qubits with Random U3 Init. (8 samples)")
plt.xlabel("|x⟩")
plt.ylabel("counts")
plt.show()

Alternate simulation algorithms (QBDD and near-Clifford)¶

By default, Qrack relies on a combination of state vector simulation, “hybrid” stabilizer and near-Clifford simulation, and Schmidt decomposition optimization techniques. Alternatively, we could use pure stabilizer simulation or QBDD simulation if the circuit is at all amenable to optimization in this way.

To demonstrate this, we prepare a 60-qubit GHZ state, which would commonly be intractable in the case of state vector simulation.

qubits = 60
dev = qml.device(
    "qrack.simulator",
    qubits,
    shots=8,
    isBinaryDecisionTree=False,
    isStabilizerHybrid=True,
    isSchmidtDecompose=False,
)

@qjit
@qml.qnode(dev)
def circuit():
    qml.Hadamard(0)
    for i in range(1, qubits):
        qml.CNOT(wires=[i - 1, i])
    return qml.sample(wires=range(qubits))

counts = counts_from_samples(circuit())

plt.bar(counts.keys(), counts.values())
plt.title(f"{qubits}-Qubit GHZ preparation (8 samples)")
plt.xlabel("|x⟩")
plt.ylabel("counts")
plt.show()

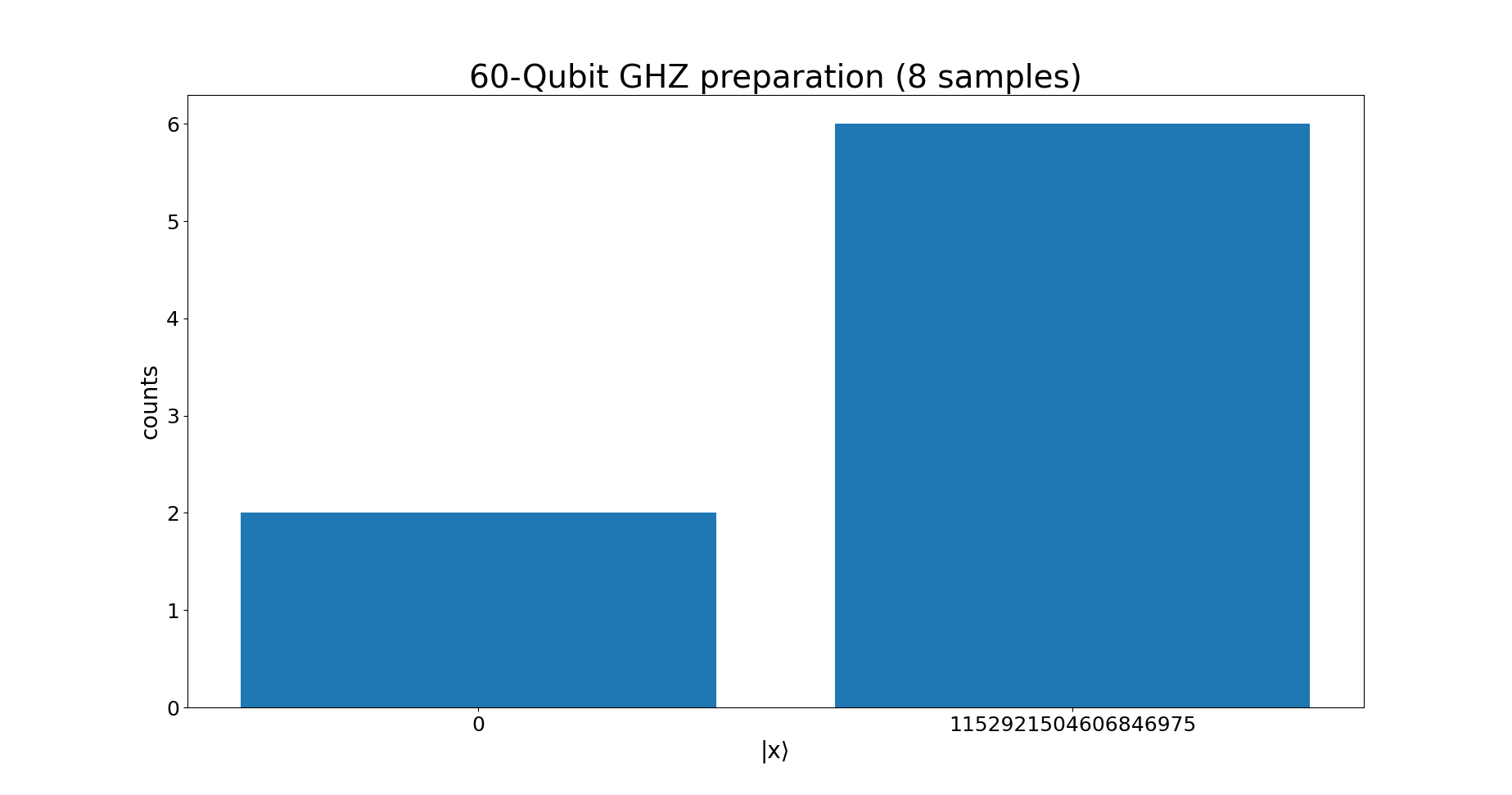

As you can see, Qrack was able to construct the 60-qubit GHZ state (without exceeding memory limitations), and the probability is peaked at bit strings of all 0 and all 1.

It’s trivial for Qrack to perform large GHZ state preparations with “hybrid” stabilizer or near-Clifford simulation if Schmidt decomposition is deactivated. QBDD cannot be accelerated by GPU, so its application might be limited, but it is parallel over CPU processing elements, hence it might be particularly well-suited for systems with no GPU at all. Qrack’s default simulation methods will likely still outperform QBDD on BQP-complete problems like random circuit sampling or quantum volume certification.

qubits = 24
dev = qml.device(
    "qrack.simulator", qubits, shots=8, isBinaryDecisionTree=True, isStabilizerHybrid=False
)

@qjit
@qml.qnode(dev)
def circuit():
    qml.Hadamard(0)
    for i in range(1, qubits):
        qml.CNOT(wires=[i - 1, i])
    return qml.sample(wires=range(qubits))

counts = counts_from_samples(circuit())

plt.bar(counts.keys(), counts.values())
plt.title(f"{qubits}-Qubit GHZ preparation (8 samples)")
plt.xlabel("|x⟩")
plt.ylabel("counts")
plt.show()

If your gate set is restricted to Clifford with general RZ gates (being mindful of the fact that compilers like Catalyst might optimize such a gate set basis into different gates), the time complexity for measurement samples becomes doubly exponential with near-Clifford simulation, but the space complexity is almost exactly that of stabilizer simulation for the logical qubits plus an ancillary qubit per (non-optimized) RZ gate, scaling like the square of the sum of the count of the logical and ancillary qubits put together.

Comparing performance¶

We’ve already seen that the Qrack device back end can do some tasks that most other simulators, or basically any other simulator, simply can’t do, like 60-qubit-wide special cases of the QFT or GHZ state preparation with a Clifford or universal (QBDD) simulation algorithm, for example. However, in the worst case for circuit complexity, Qrack will tend perform similarly to state vector simulation.

How does the performance of Qrack compare with other simulators’ on a non-trivial problem, like the U3 initialization we used above for the QFT algorithm?

import time

def bench(n, results):
    for device in ["qrack.simulator", "lightning.qubit"]:
        dev = qml.device(device, n, shots=1)

        @qjit
        @qml.qnode(dev)
        def circuit():
            for i in range(n):
                th = random.uniform(0, np.pi)
                ph = random.uniform(0, np.pi)
                dl = random.uniform(0, np.pi)
                qml.U3(th, ph, dl, wires=[i])
            qml.QFT(wires=range(n))
            return qml.sample(wires=range(n))

        start_ns = time.perf_counter_ns()
        circuit()
        results[
            f"Qrack ({n} qb)" if device == "qrack.simulator" else f"Lightning ({n} qb)"
        ] = time.perf_counter_ns() - start_ns

    return results

results = {}
results = bench(6, results)
results = bench(12, results)
results = bench(18, results)

bar_colors = ["purple", "yellow", "purple", "yellow"]
plt.bar(results.keys(), results.values(), color=bar_colors)
plt.title("Performance comparison, QFT with U3 initialization (1 sample apiece)")
plt.xlabel("|x⟩")
plt.ylabel("Nanoseconds")
plt.show()

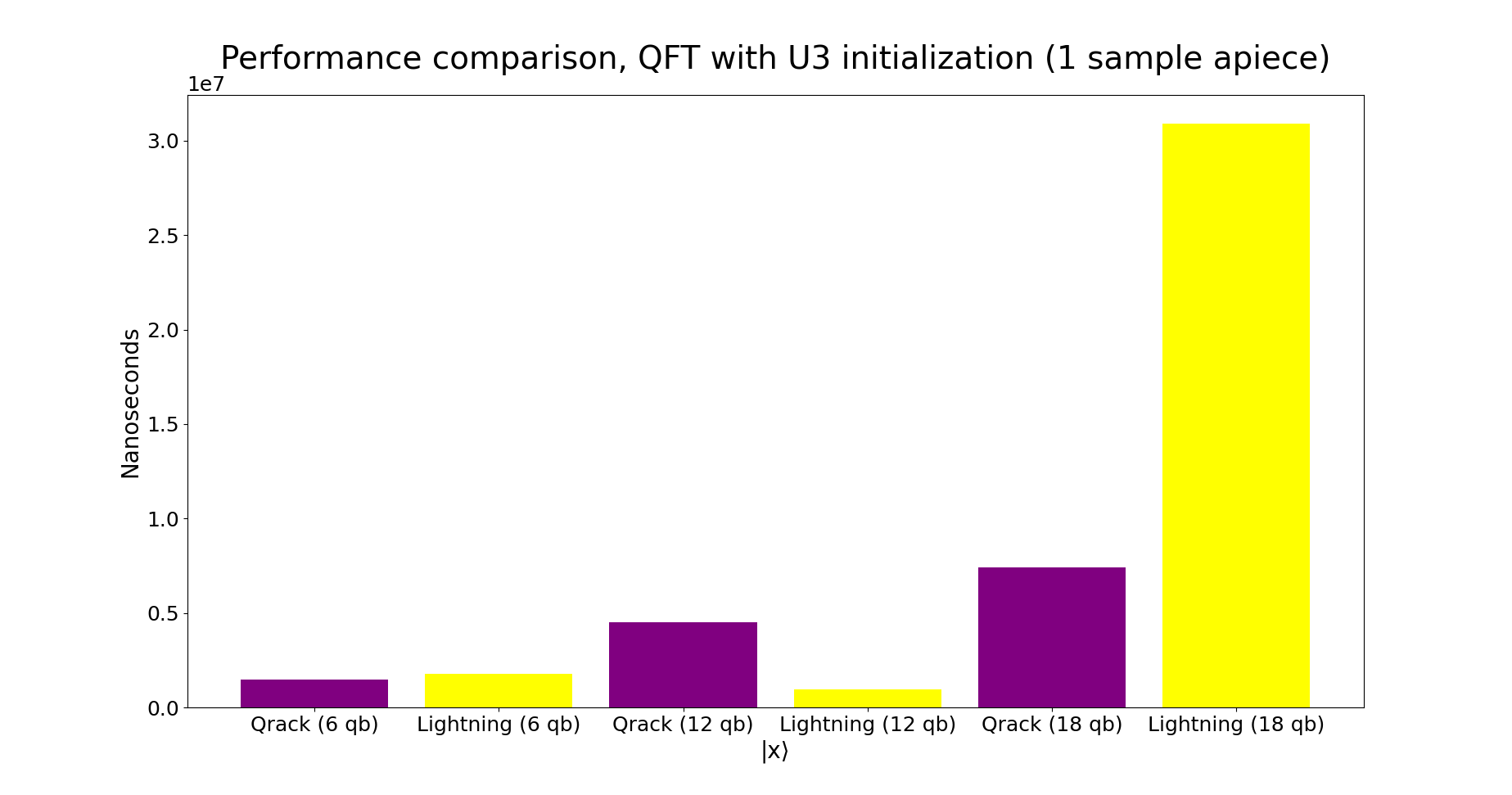

Benchmarks will differ somewhat when running this code on your local machine, for example, but we tend to see that Qrack manages to demonstrate good performance compared to the Lightning simulators on this task case. (Note that this initialization case isn’t specifically the hardest case of the QFT for Qrack; that’s probably rather a GHZ state input.)

Similarly, we can use quantum just-in-time (QJIT) compilation from PennyLane’s Catalyst, for both Qrack and Lightning. How does Qrack with QJIT compare to Qrack without it?

def bench(n, results):
    dev = qml.device("qrack.simulator", n, shots=1)

    @qjit
    @qml.qnode(dev)
    def circuit():
        for i in range(n):
            th = random.uniform(0, np.pi)
            ph = random.uniform(0, np.pi)
            dl = random.uniform(0, np.pi)
            qml.U3(th, ph, dl, wires=[i])
        qml.QFT(wires=range(n))
        return qml.sample(wires=range(n))

    start_ns = time.perf_counter_ns()
    circuit()
    results[f"QJIT Qrack ({n} qb)"] = time.perf_counter_ns() - start_ns

    @qml.qnode(dev)
    def circuit():
        for i in range(n):
            th = random.uniform(0, np.pi)
            ph = random.uniform(0, np.pi)
            dl = random.uniform(0, np.pi)
            qml.U3(th, ph, dl, wires=[i])
        qml.QFT(wires=range(n))
        return qml.sample(wires=range(n))

    start_ns = time.perf_counter_ns()
    circuit()
    results[f"PyQrack ({n} qb)"] = time.perf_counter_ns() - start_ns

    return results

# Make sure OpenCL has been initalized in PyQrack:
bench(6, results)

results = {}
results = bench(6, results)
results = bench(12, results)
results = bench(18, results)

bar_colors = ["purple", "yellow", "purple", "yellow"]
plt.bar(results.keys(), results.values(), color=bar_colors)
plt.title("Performance comparison, QFT with U3 initialization (1 sample apiece)")
plt.xlabel("|x⟩")
plt.ylabel("Nanoseconds")
plt.show()

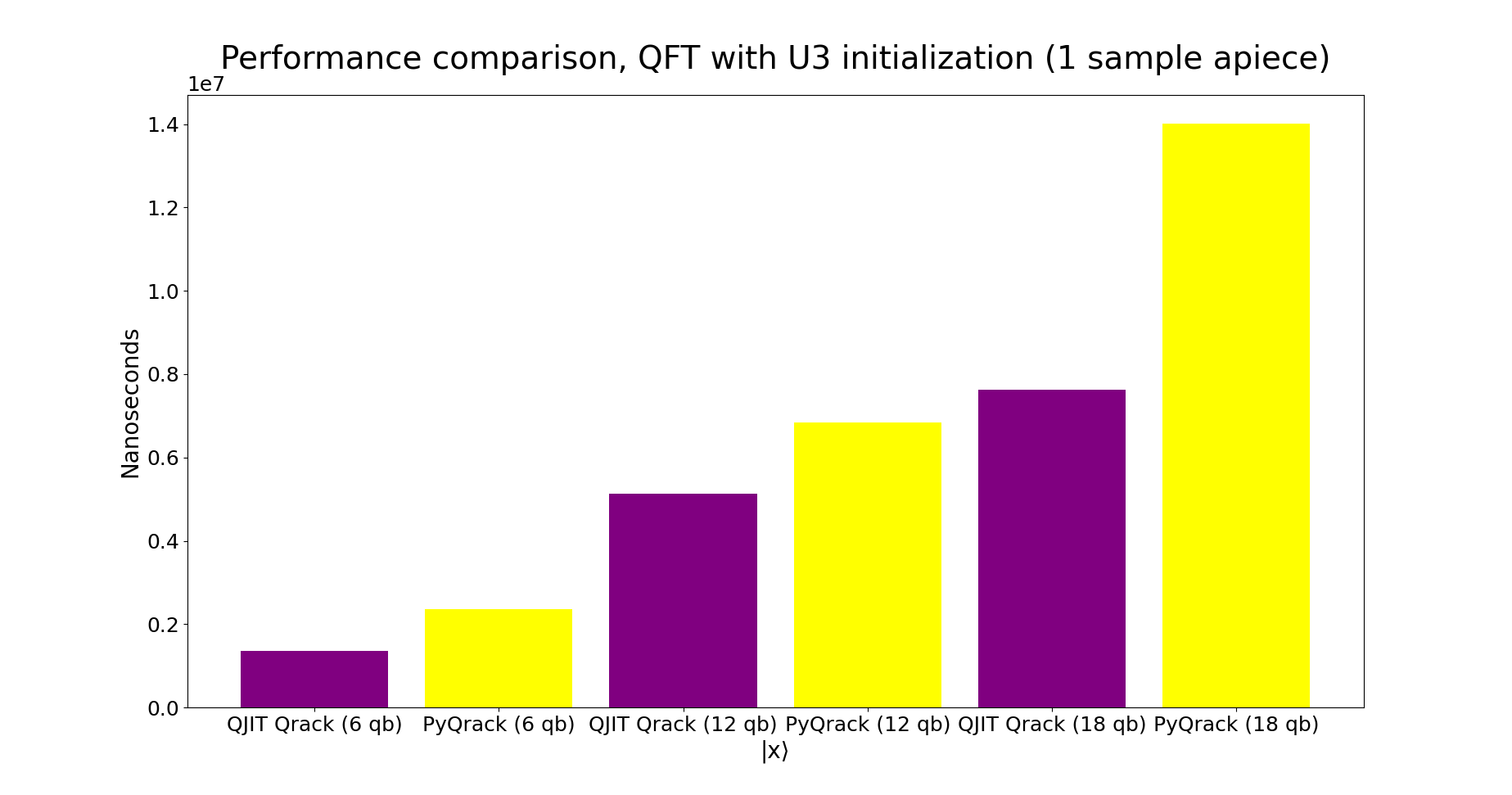

Again, your mileage may vary somewhat, depending on your local system, but Qrack tends to be significantly faster with Catalyst’s QJIT than without!

As a basic test of validity, if we compare the inner product between both simulator state vector outputs on some QFT case, do they agree?

def validate(n):
    results = []
    for device in ["qrack.simulator", "lightning.qubit"]:
        dev = qml.device(device, n, shots=None)

        @qjit
        @qml.qnode(dev)
        def circuit():
            qml.Hadamard(0)
            for i in range(1, n):
                qml.CNOT(wires=[i - 1, i])
            qml.QFT(wires=range(n))
            return qml.state()

        start_ns = time.perf_counter_ns()
        results.append(circuit())

    return np.abs(sum([np.conj(x) * y for x, y in zip(results[0], results[1])]))

print("Qrack cross entropy with Lightning:", validate(12), "out of 1.0")

Qrack cross entropy with Lightning: 0.9999997797266185 out of 1.0

Conclusion¶

In this tutorial, we’ve demonstrated the basics of using the Qrack simulator back end and showed examples of special cases on which Qrack’s novel optimizations can lead to huge increases in performance or maximum achievable qubit widths. Remember the Qrack device back end for PennyLane if you’d like to leverage GPU acceleration but don’t want to complicate your choice of devices or device initialization, to handle a mixture of wide and narrow qubit registers in your subroutines.

References¶

1(1,2,3)

Daniel Strano, Benn Bollay, Aryan Blaauw, Nathan Shammah, William J. Zeng, Andrea Mari “Exact and approximate simulation of large quantum circuits on a single GPU” arXiv:2304.14969, 2023.

2

Robert Wille, Stefan Hillmich, Lukas Burgholzer “Decision Diagrams for Quantum Computing” arXiv:2302.04687, 2023.
