Grover’s Algorithm

Ludmila Botelho

Ludmila Botelho

Published: July 3, 2023. Last updated: November 6, 2024.

Note

Go to the end to download the full example code.

Grover’s algorithm is an oracle-based quantum algorithm, proposed by Lov Grover 1. In the original description, the author approaches the following problem: suppose that we are searching for a specific phone number in a randomly-ordered catalogue containing $N$ entries. To find such a number with a probability of $\frac{1}{2},$ a classical algorithm will need to check the list on average $\frac{N}{2}$ times.

In other words, the problem is defined by searching for an item on a list with $N$ items given an Oracle access function $f(x).$ This function has the defining property that $f(x) = 1$ if $x$ is the item we are looking for, and $f(x) = 0$ otherwise. The solution to this black-box search problem is proposed as a quantum algorithm that performs $O(\sqrt{N})$ oracular queries to the list with a high probability of finding the answer, whereas any classical algorithm would require $O(N)$ queries.

In this tutorial, we are going to implement a search for an n-bit string item using a quantum circuit based on Grover’s algorithm.

The algorithm can be broken down into the following steps:

  1. Prepare the initial state

  2. Implement the oracle

  3. Apply the Grover diffusion operator

  4. Repeat steps 2 and 3 approximately $\frac{\pi}{4}\sqrt{N}$ times

  5. Measure

Let’s import the usual PennyLane and Numpy libraries to load the necessary functions:

import matplotlib.pyplot as plt
import pennylane as qml
import numpy as np

Preparing the Initial State

To perform the search, we are going to create an n-dimensional system, which has $N = 2^n$ computational basis states, represented via $N$ binary numbers. More specifically, bit strings with length $n,$ labelled as $x_0,x_2,\cdots, x_{N-1}.$ We initialize the system in the uniform superposition over all states, i.e., the amplitudes associated with each of the $N$ basis states are equal:

$$ |s\rangle ={\frac {1}{\sqrt {N}}}\sum _{x=0}^{N-1}|x\rangle . $$

This can be achieved by applying a Hadamard gate to all the wires. We can inspect the circuit using Snapshot to see how the states change on each step. Let us check the probability of finding a state in the computational basis for a 2-qubit circuit, writing the following functions and QNodes:

NUM_QUBITS = 2
dev = qml.device("default.qubit", wires=NUM_QUBITS)
wires = list(range(NUM_QUBITS))


def equal_superposition(wires):
    for wire in wires:
        qml.Hadamard(wires=wire)


@qml.qnode(dev)
def circuit():
    qml.Snapshot("Initial state")
    equal_superposition(wires)
    qml.Snapshot("After applying the Hadamard gates")
    return qml.probs(wires=wires)  # Probability of finding a computational basis state on the wires


results = qml.snapshots(circuit)()

for k, result in results.items():
    print(f"{k}: {result}")

Initial state: [1.+0.j 0.+0.j 0.+0.j 0.+0.j]
After applying the Hadamard gates: [0.5+0.j 0.5+0.j 0.5+0.j 0.5+0.j]
execution_results: [0.25 0.25 0.25 0.25]

Let’s use a bar plot to better visualize the initial state amplitudes:

y = np.real(results["After applying the Hadamard gates"])
bit_strings = [f"{x:0{NUM_QUBITS}b}" for x in range(len(y))]

plt.bar(bit_strings, y, color = "#70CEFF")

plt.xticks(rotation="vertical")
plt.xlabel("State label")
plt.ylabel("Probability Amplitude")
plt.title("States probabilities amplitudes")
plt.show()

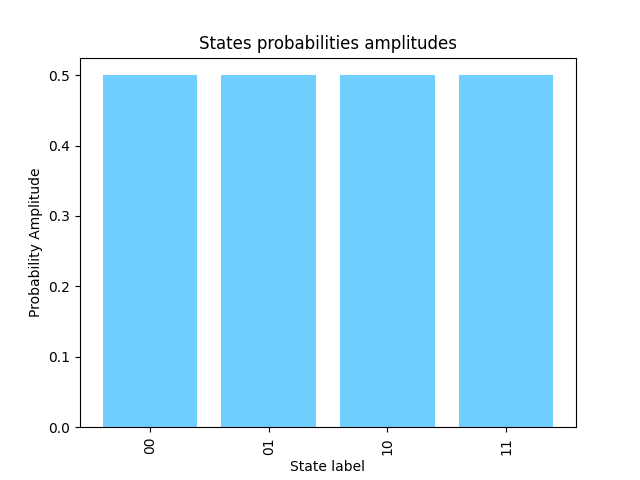

States probabilities amplitudes

As expected, they are equally distributed.

The Oracle and Grover’s diffusion operator

Let’s assume for now that only one index satisfies $f(x) = 1$. We are going to call this index $\omega.$ To access $f(x)$ with an Oracle, we can formulate a unitary operator such that

$$ \begin{split}\begin{cases} U_{\omega }|x\rangle =-|x\rangle &{\text{for }}x=\omega {\text{, that is, }}f(x)=1,\\U_{\omega }|x\rangle =|x\rangle &{\text{for }}x\neq \omega {\text{, that is, }}f(x)=0, \end{cases}\end{split} $$

where and $U_\omega$ acts by flipping the phase of the solution state while keeping the remaining states untouched. In other words, the unitary $U_\omega$ can be seen as a reflection around the set of orthogonal states to $\vert \omega \rangle,$ written as

$$ U_\omega = \mathbb{I} - 2\vert \omega \rangle \langle \omega \vert. $$

This can be easily implemented with FlipSign, which takes a binary array and flips the sign of the corresponding state.

Let us take a look at an example. If we pass the array [0,0], the sign of the state $\vert 00 \rangle = \begin{bmatrix} 1 \\0 \\0 \\0 \end{bmatrix}$ will flip:

dev = qml.device("default.qubit", wires=NUM_QUBITS)

@qml.qnode(dev)
def circuit():
    qml.Snapshot("Initial state |00>")
    # Flipping the marked state
    qml.FlipSign([0, 0], wires=wires)
    qml.Snapshot("After flipping it")
    return qml.state()

results = qml.snapshots(circuit)()

for k, result in results.items():
    print(f"{k}: {result}")

y1 = np.real(results["Initial state |00>"])
y2 = np.real(results["After flipping it"])

bit_strings = [f"{x:0{NUM_QUBITS}b}" for x in range(len(y))]

plt.bar(bit_strings, y1, color = "#70CEFF")
plt.bar(bit_strings, y2, color = "#C756B2")

plt.xticks(rotation="vertical")
plt.xlabel("State label")
plt.ylabel("Probability Amplitude")
plt.title("States probabilities amplitudes")

plt.legend(["Initial state |00>", "After flipping it"])
plt.axhline(y=0.0, color="k", linestyle="-")
plt.show()

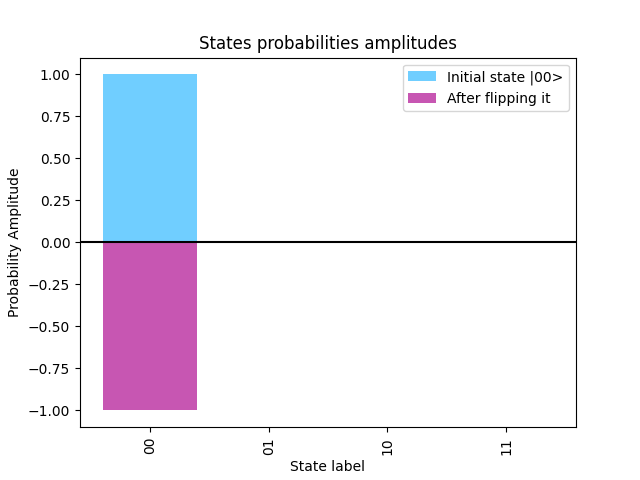

States probabilities amplitudes
Initial state |00>: [1.+0.j 0.+0.j 0.+0.j 0.+0.j]
After flipping it: [-1.+0.j  0.+0.j  0.+0.j  0.+0.j]
execution_results: [-1.+0.j  0.+0.j  0.+0.j  0.+0.j]

We can see that the amplitude of the state $\vert 01\rangle$ flipped. Now, let us prepare the Oracle and inspect its action in the circuit.

omega = np.zeros(NUM_QUBITS)

def oracle(wires, omega):
    qml.FlipSign(omega, wires=wires)

dev = qml.device("default.qubit", wires=NUM_QUBITS)

@qml.qnode(dev)
def circuit():
    equal_superposition(wires)
    qml.Snapshot("Before querying the Oracle")

    oracle(wires, omega)
    qml.Snapshot("After querying the Oracle")

    return qml.probs(wires=wires)

results = qml.snapshots(circuit)()

for k, result in results.items():
    print(f"{k}: {result}")

Before querying the Oracle: [0.5+0.j 0.5+0.j 0.5+0.j 0.5+0.j]
After querying the Oracle: [-0.5+0.j  0.5+0.j  0.5+0.j  0.5+0.j]
execution_results: [0.25 0.25 0.25 0.25]

y1 = np.real(results["Before querying the Oracle"])
y2 = np.real(results["After querying the Oracle"])

bit_strings = [f"{x:0{NUM_QUBITS}b}" for x in range(len(y1))]

bar_width = 0.4

rect_1 = np.arange(0, len(y1))
rect_2 = [x + bar_width for x in rect_1]

plt.bar(
    rect_1,
    y1,
    width=bar_width,
    edgecolor="white",
    color = "#70CEFF",
    label="Before querying the Oracle",
)
plt.bar(
    rect_2,
    y2,
    width=bar_width,
    edgecolor="white",
    color = "#C756B2",
    label="After querying the Oracle",
)

plt.xticks(rect_1 + 0.2, bit_strings, rotation="vertical")
plt.xlabel("State label")
plt.ylabel("Probability Amplitude")
plt.title("States probabilities amplitudes")

plt.legend()
plt.show()

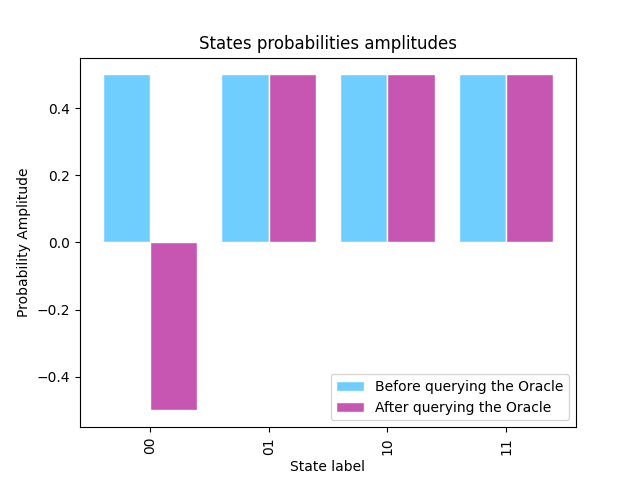

States probabilities amplitudes

We can see that the amplitude corresponding to the state $\vert \omega \rangle$ changed. However, we need an additional step to find the solution, since the probability of measuring any of the states remains equally distributed. This can be solved by applying the Grover diffusion operator, defined as

$$ U_D = 2| s \rangle\langle s| - \mathbb{I}. $$

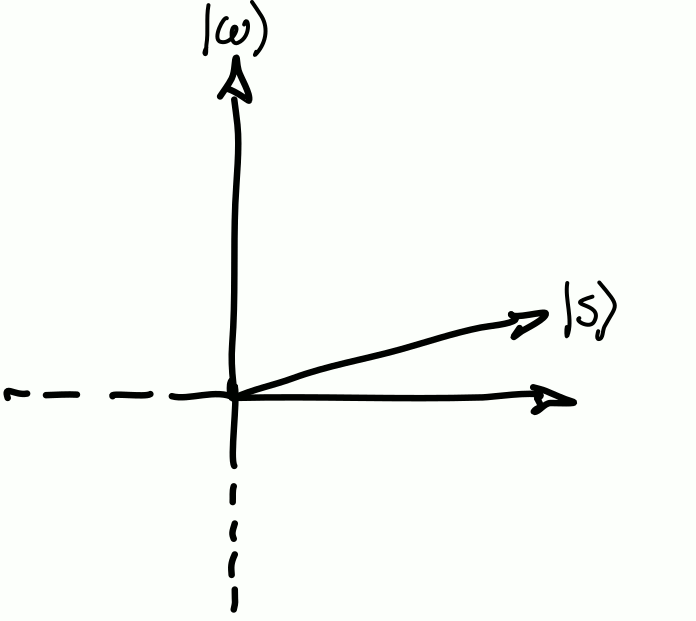

The unitary $U_D$ also acts as a rotation, but this time through the uniform superposition $\vert s \rangle.$ Finally, the combination of $U_{\omega}$ with $U_D$ rotates the state $\vert s \rangle$ by an angle of $\theta =2 \arcsin{\tfrac {1}{\sqrt {N}}}.$ For more geometric insights about the oracle and the diffusion operator, please refer to this PennyLane Codebook section.

/_images/rotation.gif

In a 2-qubit circuit, the diffusion operator has a specific shape:

/_images/diffusion_2_qubits.svg

Now, we have all the building blocks to implement a single-item search in a 2-qubit circuit. We can verify in the circuit below that applying the Grover iterator $U_D U_\omega$ once is enough to solve the problem.

dev = qml.device("default.qubit", wires=NUM_QUBITS)


def diffusion_operator(wires):
    for wire in wires:
        qml.Hadamard(wires=wire)
        qml.PauliZ(wires=wire)
    qml.ctrl(qml.PauliZ, 0)(wires=1)
    for wire in wires:
        qml.Hadamard(wires=wire)


@qml.qnode(dev)
def circuit():
    equal_superposition(wires)
    qml.Snapshot("Uniform superposition |s>")

    oracle(wires, omega)
    qml.Snapshot("State marked by Oracle")
    diffusion_operator(wires)

    qml.Snapshot("Amplitude after diffusion")
    return qml.probs(wires=wires)


results = qml.snapshots(circuit)()

for k, result in results.items():
    print(f"{k}: {result}")

Uniform superposition |s>: [0.5+0.j 0.5+0.j 0.5+0.j 0.5+0.j]
State marked by Oracle: [-0.5+0.j  0.5+0.j  0.5+0.j  0.5+0.j]
Amplitude after diffusion: [1.+0.j 0.+0.j 0.+0.j 0.+0.j]
execution_results: [1. 0. 0. 0.]

Searching for more items in a bigger list

Now, let us consider the generalized problem with large $N,$ accepting $M$ solutions, with $1 \leq M \leq N.$ In this case, the optimal number of Grover iterations to find the solution is given by $r \approx \left \lceil \frac{\pi}{4} \sqrt{\frac{N}{M}} \right \rceil$2.

For more qubits, we can use the same function for the Oracle to mark the desired states, and the diffusion operator takes a more general form:

/_images/diffusion_n_qubits.svg

which is easily implemented using GroverOperator.

Finally, we have all the tools to build the circuit for Grover’s algorithm, as we can see in the code below. For simplicity, we are going to search for the states $\vert 0\rangle ^{\otimes n}$ and $\vert 1\rangle ^{\otimes n},$ where $n = \log_2 N$ is the number of qubits.

NUM_QUBITS = 5

omega = np.array([np.zeros(NUM_QUBITS), np.ones(NUM_QUBITS)])

M = len(omega)
N = 2**NUM_QUBITS
wires = list(range(NUM_QUBITS))

dev = qml.device("default.qubit", wires=NUM_QUBITS)

@qml.qnode(dev)
def circuit():
    iterations = int(np.round(np.sqrt(N / M) * np.pi / 4))

    # Initial state preparation
    equal_superposition(wires)

    # Grover's iterator
    for _ in range(iterations):
        for omg in omega:
            oracle(wires, omg)
        qml.templates.GroverOperator(wires)

    return qml.probs(wires=wires)


results = qml.snapshots(circuit)()

for k, result in results.items():
    print(f"{k}: {result}")

execution_results: [0.48065948 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937
 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937
 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937
 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937
 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937 0.00128937
 0.00128937 0.48065948]

Let us use a bar plot to visualize the probability to find the correct bitstring.

y = results["execution_results"]
bit_strings = [f"{x:0{NUM_QUBITS}b}" for x in range(len(y))]

plt.bar(bit_strings, results["execution_results"], color = "#70CEFF")

plt.xticks(rotation="vertical")
plt.xlabel("State label")
plt.ylabel("Probability")
plt.title("States probabilities")

plt.show()

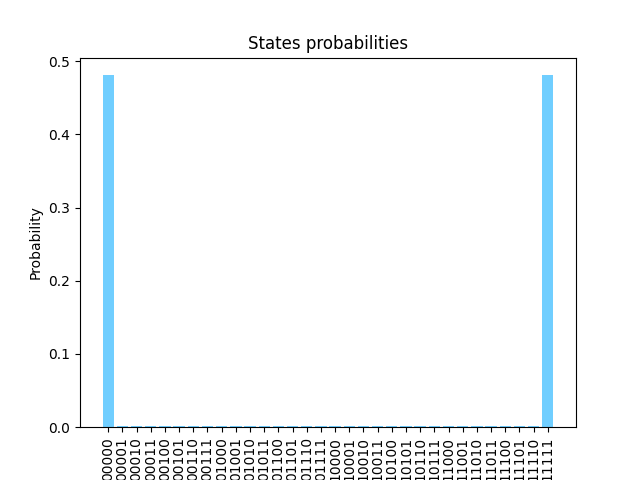

States probabilities

Conclusion

In conclusion, we have learned the basic steps of Grover’s algorithm and how to implement it to search $M$ items in a list of size $N$ with high probability.

Grover’s algorithm in principle can be used to speed up more sophisticated computation, for instance, when used as a subroutine for problems that require extensive search and is the basis of a whole family of algorithms, such as the amplitude amplification technique.

If you would like to learn more about Grover’s algorithm, check out this video!

References

1

L. K. Grover (1996) “A fast quantum mechanical algorithm for database search”. Proceedings of the Twenty-Eighth Annual ACM Symposium on Theory of Computing. STOC ‘96. Philadelphia, Pennsylvania, USA: Association for Computing Machinery: 212–219. (arXiv)

2

M. A. Nielsen, and I. L. Chuang (2000) “Quantum Computation and Quantum Information”, Cambridge University Press.
