How to quantum just-in-time (QJIT) compile Grover’s algorithm with Catalyst¶

Generalized Grover’s algorithm with PennyLane¶

In the Grover’s Algorithm tutorial, we saw how to implement the generalized Grover’s algorithm in PennyLane. The procedure is as follows:

1. Initialize the system to an equal superposition over all states.

2. Perform $r(N, M)$ Grover iterations:

   1. Apply the unitary oracle operator, $U_\omega,$ implemented using FlipSign, for each solution index $\omega.$

   2. Apply the Grover diffusion operator, $U_D,$ implemented using GroverOperator.

3. Measure the resulting quantum state in the computational basis.

We also saw (in Ref. 2) that the optimal number of Grover iterations to find the solution is given by

For simplicity, throughout the rest of this tutorial we will consider the search for the $M = 2$ solution states $\vert 0\rangle ^{\otimes n}$ and $\vert 1\rangle ^{\otimes n},$ where $n = \log_2 N$ is the number of qubits, in a “database” of size $N = 2^n$ containing all possible $n$-qubit states.

First, we’ll import the required packages and define the Grover’s algorithm circuit, as we did in the previous tutorial.

import matplotlib.pyplot as plt
import numpy as np
import pennylane as qml


def equal_superposition(wires):
    for wire in wires:
        qml.Hadamard(wires=wire)


def oracle(wires, omega):
    qml.FlipSign(omega, wires=wires)


def num_grover_iterations(N, M):
    return np.ceil(np.sqrt(N / M) * np.pi / 4).astype(int)


def grover_circuit(num_qubits):
    wires = list(range(num_qubits))
    omega = np.array([np.zeros(num_qubits), np.ones(num_qubits)])

    M = len(omega)
    N = 2**num_qubits

    # Initial state preparation
    equal_superposition(wires)

    # Grover iterations
    for _ in range(num_grover_iterations(N, M)):
        for omg in omega:
            oracle(wires, omg)
        qml.templates.GroverOperator(wires)

    return qml.probs(wires=wires)

We’ll begin with a circuit defined using the default state-simulator device, "default.qubit", as our baseline. See the documentation in device() for a list of other supported devices. To run our performance benchmarks, we’ll increase the number of qubits in our circuit to $n = 12.$

NUM_QUBITS = 12

dev = qml.device("default.qubit", wires=NUM_QUBITS)


@qml.qnode(dev)
def circuit_default_qubit():
    return grover_circuit(NUM_QUBITS)


results = circuit_default_qubit()

Let’s quickly confirm that Grover’s algorithm correctly identified the solution states $\vert 0\rangle ^{\otimes n}$ and $\vert 1\rangle ^{\otimes n}$ as the most likely states to be measured.

def most_probable_states_descending(probs, N):
    """Returns the indices of the N most probable states in descending order."""
    if N > len(probs):
        raise ValueError("N cannot be greater than the length of the probs array.")

    return np.argsort(probs)[-N:][::-1]


def print_most_probable_states_descending(probs, N):
    """Prints the most probable states and their probabilities in descending order."""
    for i in most_probable_states_descending(probs, N):
        print(f"Prob of state '{i:0{NUM_QUBITS}b}': {probs[i]:.4g}")


print_most_probable_states_descending(results, N=2)

Prob of state '111111111111': 0.4991
Prob of state '000000000000': 0.4991

It worked! We are now ready to QJIT compile our Grover’s algorithm circuit.

Quantum just-in-time compiling the circuit¶

Catalyst is developed natively for PennyLane’s high-performance simulators and, at the time of writing, does not support the "default.qubit" state-simulator device. Let’s first define a new circuit using Lightning, which is a PennyLane plugin that provides more performant state simulators written in C++. See the Catalyst documentation for the full list of devices supported by Catalyst.

dev = qml.device("lightning.qubit", wires=NUM_QUBITS)


@qml.qnode(dev)
def circuit_lightning():
    return grover_circuit(NUM_QUBITS)

Then, to QJIT compile our circuit with Catalyst, we simply wrap it with qjit().

circuit_qjit = qml.qjit(circuit_lightning)

We now have our QJIT object, circuit_qjit. A small detail to note in this case is that because the function circuit_lightning takes no input arguments, Catalyst will, in fact, ahead-of-time (AOT) compile the circuit at instantiation, meaning that when we call this QJIT object for the first time, the compilation will have already taken place, and Catalyst will execute the compiled code. With JIT compilation, by contrast, the compilation is triggered at the first call site rather than at instantiation. See the Compilation Modes documentation in the Catalyst Quick Start guide for more information on the difference between JIT and AOT compilation.

The compilation step will incur some runtime overhead, which we will measure below. Let’s first call the compiled circuit and confirm that we get the same results.

results_qjit = circuit_qjit()
print_most_probable_states_descending(results_qjit, N=2)

Prob of state '111111111111': 0.4991
Prob of state '000000000000': 0.4991

Indeed, we get the same results as before: the compiled circuit has correctly identified the solution states $\vert 0\rangle ^{\otimes n}$ and $\vert 1\rangle ^{\otimes n}$ as the most likely states to be measured. We can also compare the results more rigorously by comparing element-wise the computed probability of every state (within the given floating-point tolerance):

results_are_equal = np.allclose(results, results_qjit, atol=1e-12)
print(f"Native-Python and compiled circuits yield same results? {results_are_equal}")

Native-Python and compiled circuits yield same results? True

Success!

Benchmarking¶

Let’s start profiling the circuits we have defined. We have four function executions in total to profile:

1. Executing the circuit using "default.qubit".

2. Executing the circuit using "lightning.qubit".

3. Compiling the circuit with Catalyst, to measure the AOT compilation overhead.

4. Calls to the QJIT-compiled circuit, to measure the circuit execution time.

We’ll use the timeit module part of the Python Standard Library to measure the runtimes. To improve the statistical precision of these measurements, we’ll repeat the operations for items (2) and (4) five times; item (1) is slow, and item (3) is only run once by construction, so we will not repeat these operations.

import timeit

NUM_REPS = 5

runtimes_native_default = timeit.repeat(
    "circuit_default_qubit()",
    globals={"circuit_default_qubit": circuit_default_qubit},
    number=1,
    repeat=1,
)
runtimes_native_lightning = timeit.repeat(
    "circuit_lightning()",
    globals={"circuit_lightning": circuit_lightning},
    number=1,
    repeat=NUM_REPS,
)
runtimes_compilation = timeit.repeat(
    "qml.qjit(circuit_lightning)",
    setup="import pennylane as qml",
    globals={"circuit_lightning": circuit_lightning},
    number=1,
    repeat=1,
)
runtimes_qjit_call = timeit.repeat(
    "_circuit_qjit()",
    setup="import pennylane as qml; _circuit_qjit = qml.qjit(circuit_lightning);",
    globals={"circuit_lightning": circuit_lightning},
    number=1,
    repeat=NUM_REPS,
)

run_names = [
    "Native (default.qubit)",
    "Native (lightning.qubit)",
    "QJIT compilation",
    "QJIT call",
]
run_names_display = [name.replace(" ", "\n", 1) for name in run_names]
runtimes = [
    np.mean(runtimes_native_default),
    np.mean(runtimes_native_lightning),
    np.mean(runtimes_compilation),
    np.mean(runtimes_qjit_call),
]


def std_err(x):
    """Standard error = sample standard deviation / sqrt(sample size)"""
    if len(x) == 1:
        return np.nan
    return np.std(x, ddof=1) / np.sqrt(len(x))


runtimes_err = [
    std_err(runtimes_native_default),
    std_err(runtimes_native_lightning),
    std_err(runtimes_compilation),
    std_err(runtimes_qjit_call),
]

for i in range(len(run_names)):
    print(f"{run_names[i]} runtime: ({runtimes[i]:.4g} +/- {runtimes_err[i]:.2g}) s")

Native (default.qubit) runtime: (9.238 +/- nan) s
Native (lightning.qubit) runtime: (0.03709 +/- 0.0039) s
QJIT compilation runtime: (0.9242 +/- nan) s
QJIT call runtime: (0.00273 +/- 2.4e-05) s

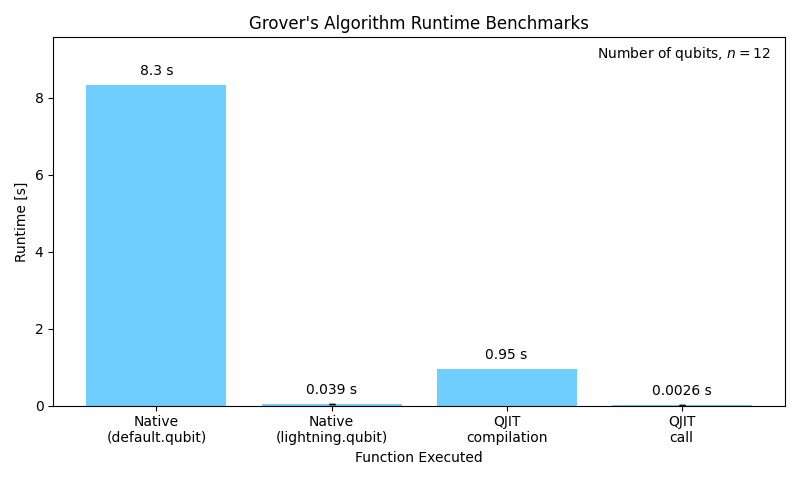

Let’s plot these runtimes as a bar chart to compare them visually.

fig = plt.figure(figsize=[8.0, 4.8])
plt.title("Grover's Algorithm Runtime Benchmarks")
bars = plt.bar(run_names_display, runtimes, color="#70CEFF")
plt.errorbar(
    run_names_display, runtimes, yerr=runtimes_err, fmt="None", capsize=2.0, c="k"
)
plt.bar_label(bars, fmt="{:#.2g} s", padding=5)
plt.xlabel("Function Executed")
plt.ylabel("Runtime [s]")
plt.margins(y=0.15)
plt.text(
    0.98,
    0.98,
    f"Number of qubits, $n = {NUM_QUBITS}$",
    ha="right",
    va="top",
    transform=plt.gca().transAxes,
)
plt.tight_layout()
plt.show()

This plot illustrates the power of Catalyst: by simply wrapping our Grover’s algorithm circuit as a QJIT-compiled object (or AOT-compiled in this case) with qjit(), we have achieved execution runtimes approximately an order of magnitude shorter than the PennyLane circuit implemented using the "lightning.qubit" device.

There is one important caveat in this example, however, which is that the compilation step itself takes several times longer than the time it takes to run the circuit using the Lightning state simulator directly. This is an important factor to consider when deciding whether to QJIT compile your own circuits in performance-critical applications. In the case of Grover’s algorithm, we only needed to execute the circuit once to obtain the solution, so the runtime incurred in the compilation step offsets the gain in the compiled circuit’s execution time. However, should it be necessary to execute your own quantum circuit many times, the runtime savings are compounded with every subsequent call to the compiled circuit. Since the compilation step only needs to be performed once, the total runtime of the QJIT workflow may begin to outperform the baseline Lightning workflow as the number of circuit executions increases. *

Conclusion¶

This tutorial has demonstrated how to just-in-time compile a quantum circuit implementing the generalized Grover’s algorithm using Catalyst.

For a circuit with $n = 12$ qubits, analogous to a search in a randomly ordered “database” containing $N = 2^{12} = 4096$ entries, Catalyst offers a circuit-execution runtime performance approximately an order of magnitude better than the same circuit implemented using the Lightning state-simulator device, with the caveat that the compilation step itself incurs some runtime over the workflow with a direct call to the Lightning-implemented circuit.

To learn more about Catalyst and how to use it to compile and optimize your quantum programs and workflows, check out the Catalyst Quick Start guide.

References¶

1

L. K. Grover (1996) “A fast quantum mechanical algorithm for database search”. Proceedings of the Twenty-Eighth Annual ACM Symposium on Theory of Computing. STOC ‘96. Philadelphia, Pennsylvania, USA: Association for Computing Machinery: 212–219. (arXiv: 9605043 [quant-ph])

2

M. A. Nielsen, and I. L. Chuang (2000) “Quantum Computation and Quantum Information”, Cambridge University Press.

Footnotes¶

*

The performance improvements that can be achieved with QJIT compilation will depend on the specific size and topology of your PennyLane circuit.

About the author¶

Total running time of the script: (0 minutes 27.279 seconds)
