QSVT in Practice

Published: August 22, 2023. Last updated: December 5, 2024.

The Quantum Singular Value Transformation (QSVT) is a quantum algorithm that allows us to apply arbitrary polynomial transformations to the singular values of a matrix 1. This demo, written in collaboration between Xanadu and Rolls-Royce, provides a practical guide for the QSVT functionality in PennyLane, by solving a linear system of equations (LSE) as a guiding example.


/_images/thumbnail_tutorial_QSVT_for_Matrix_Inversion.png

Preliminaries

For a refresher on the basics of QSVT check out our Intro to QSVT tutorial. Let’s recall how to apply QSVT in a circuit. This requires two pieces of information as input: the block encoding of the matrix to be transformed and a set of projectors which determine the polynomial transformation. For now, we use placeholder values for the phase angles; we’ll later describe how to obtain them. The code below shows how to construct a basic QSVT circuit on two qubits:

import pennylane as qml
from pennylane import numpy as np

dev = qml.device("lightning.qubit", wires=[0, 1])

A = np.array([[0.1, 0.2], [0.3, 0.4]]) phase_angles = np.array([0.0, 1.0, 2.0, 3.0])

block_encoding = qml.BlockEncode(A, wires=[0, 1]) projectors = [qml.PCPhase(angle, dim=2, wires=[0, 1]) for angle in phase_angles]

@qml.qnode(dev) def my_circuit(): qml.QSVT(block_encoding, projectors) return qml.state()

We can now execute the circuit and visualize it.

my_circuit()
print(qml.draw(my_circuit, level = "top")())
0: ─╭QSVT─┤  State
1: ─╰QSVT─┤  State

We can inspect details by drawing the expanded circuit. The QSVT operation is composed of repeated applications of the BlockEncode and PCPhase ($\Pi_{\phi}$) operations.

print(qml.draw(my_circuit)())
0: ─╭∏_ϕ(0.00)─╭BlockEncode(M0)─╭∏_ϕ(1.00)─╭BlockEncode(M0)†─╭∏_ϕ(2.00)─╭BlockEncode(M0) ···
1: ─╰∏_ϕ(0.00)─╰BlockEncode(M0)─╰∏_ϕ(1.00)─╰BlockEncode(M0)†─╰∏_ϕ(2.00)─╰BlockEncode(M0) ···

0: ··· ─╭∏_ϕ(3.00)─┤ State 1: ··· ─╰∏_ϕ(3.00)─┤ State

M0 = [[0.1 0.2] [0.3 0.4]]

Now let’s look at an application of QSVT — solving a linear system of equations.

Problem

The most convenient way to represent a linear system of equations is as a matrix vector problem. Given a matrix $A$ and a vector $\vec{b},$ we want to solve $A \cdot \vec{x} = \vec{b}.$ This ultimately requires computing $\vec{x} = A^{-1} \cdot \vec{b},$ where for simplicity we assume that $A$ is invertible.

$A^{-1}$ can be constructed directly by inverting the singular values of $A^{T}.$ We can leverage QSVT to accomplish this by finding the phase angles which apply a polynomial approximation to the transformation $\frac{1}{x}.$ This may seem simple in theory, but in practice there are a few technical details that need to be addressed.

First, it is difficult to approximate $\frac{1}{x}$ close to $x=0.$ This leads to large degree polynomials and very deep quantum circuits. However, it turns out that we only need a good approximation up to the smallest singular value of the target matrix. We introduce the parameter $\kappa$ that defines the domain $[\frac{1}{\kappa}, 1]$ for which the approximation should be good.

Second, the QSVT algorithm produces polynomials which are bounded in magnitude by one on the domain $x \in [-1, 1].$ However, $\frac{1}{x}$ falls outside the bounds on this domain. To remedy this, we introduce a scale factor $s$ and approximate $s \cdot \frac{1}{x}.$

Obtaining Phase Angles

The QSVT phase angles $\vec{\phi}$ define the polynomial transformation. Here we describe two approaches to obtain the phase angles:

  1. Using external packages that provide numerical angle solvers (pyqsp).

  2. Using PennyLane’s differentiable workflow to optimize the phase angles.

Let’s use both methods to apply a polynomial transformation that approximates

$$ P(x) = s \cdot \frac{1}{x}. $$

Phase Angles from PyQSP

There are many numerical methods for computing the phase angles (see 3, 4). They can be readily used with PennyLane as long as the convention used to define the rotations matches the one used when applying QSVT. This is as simple as specifying the convention as a keyword argument to the qsvt() function. We demonstrate this by obtaining angles using the pyqsp library.

The phase angles generated from pyqsp are presented below. A value of $\kappa=4$ was used and the scale factor was extracted from the pyqsp module. Remember that the number of phase angles determines the degree of the polynomial approximation. Below we display the 44 angles which produce a polynomial of degree 43.

kappa = 4
s = 0.10145775
phi_pyqsp = [-2.287, 2.776, -1.163, 0.408, -0.16, -0.387, 0.385, -0.726, 0.456, 0.062, -0.468, 0.393, 0.028, -0.567, 0.76, -0.432, -0.011, 0.323, -0.573, 0.82, -1.096, 1.407, -1.735, 2.046, -2.321, 2.569, -2.819, -0.011, 2.71, -2.382, 2.574, 0.028, -2.749, 2.673, 0.062, -2.685, 2.416, 0.385, -0.387, -0.16, 0.408, -1.163, -0.365, 2.426]
phi_qsvt = qml.transform_angles(phi_pyqsp, "QSP", "QSVT")  # convert pyqsp angles to be compatible with QSVT

Note

We generated the angles using the following pyqsp functions. These methods have a randomized component which results in slightly different phase angles each time producing the same transformation:

>>> pcoefs, s = pyqsp.poly.PolyOneOverX().generate(kappa, return_coef=True, ensure_bounded=True, return_scale=True)
>>> phi_pyqsp = pyqsp.angle_sequence.QuantumSignalProcessingPhases(pcoefs, signal_operator="Wx", tolerance=0.00001)

Let’s confirm that these angles perform the correct transformation. We use the matrix() function to obtain the output matrix of the QSVT circuit. The top-left entry is a polynomial approximation whose real component corresponds to our target function $P(x).$

x_vals = np.linspace(0, 1, 50)
target_y_vals = [s * (1 / x) for x in np.linspace(s, 1, 50)]

qsvt_y_vals = [] for x in x_vals:

block_encoding = qml.BlockEncode(x, wires=[0]) projectors = [qml.PCPhase(angle, dim=1, wires=[0]) for angle in phi_qsvt]

poly_x = qml.matrix(qml.QSVT, wire_order=[0])(block_encoding, projectors) qsvt_y_vals.append(np.real(poly_x[0, 0]))

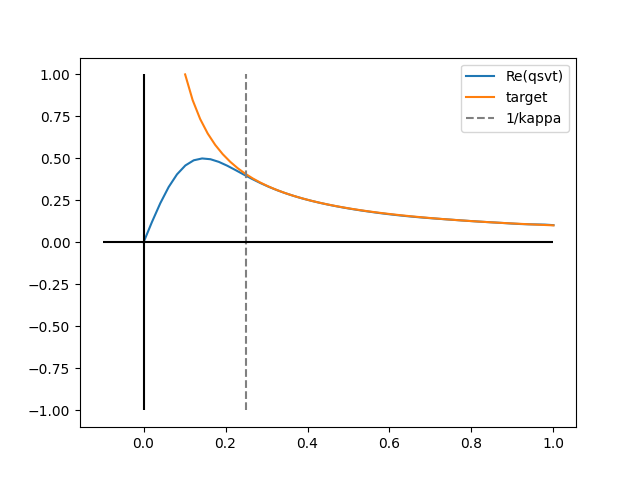

We plot the target function and our approximation generated from QSVT.

import matplotlib.pyplot as plt

plt.plot(x_vals, np.array(qsvt_y_vals), label="Re(qsvt)") plt.plot(np.linspace(s, 1, 50), target_y_vals, label="target")

plt.vlines(1 / kappa, -1.0, 1.0, linestyle="--", color="grey", label="1/kappa") plt.vlines(0.0, -1.0, 1.0, color="black") plt.hlines(0.0, -0.1, 1.0, color="black")

plt.legend() plt.show()
tutorial apply qsvt

Yay! We were able to get an approximation of the function $s \cdot \frac{1}{x}$ on the domain $[\frac{1}{\kappa}, 1].$

Phase Angles from Optimization

The QSVT operation, like all other operations in PennyLane, is fully differentiable. We can take advantage of this as an alternate approach to obtaining the phase angles by using gradient-based optimization. This method is very versatile because we can use the target function directly to generate a polynomial approximation from QSVT.

A single QSVT circuit will produce a transformation that has a fixed parity. We can be clever and get a better approximation by using a sum of an even and odd polynomial. This is achieved by using a simple linear combination of unitaries (LCU). We first split the phase angles into two groups (even and odd parity). Next, an ancilla qubit is prepared in equal superposition. We apply each QSVT operation, even or odd, conditioned on the ancilla. Finally, the ancilla qubit is reset.

def sum_even_odd_circ(x, phi, ancilla_wire, wires):
    phi1, phi2 = phi[: len(phi) // 2], phi[len(phi) // 2 :]
    block_encode = qml.BlockEncode(x, wires=wires)

qml.Hadamard(wires=ancilla_wire) # equal superposition

# apply even and odd polynomial approx

dim = x.shape[0] if x.ndim > 0 else 1 projectors_even = [qml.PCPhase(angle, dim= dim, wires=wires) for angle in phi1] qml.ctrl(qml.QSVT, control=(ancilla_wire,), control_values=(0,))(block_encode, projectors_even)

projectors_odd = [qml.PCPhase(angle, dim= dim, wires=wires) for angle in phi2] qml.ctrl(qml.QSVT, control=(ancilla_wire,), control_values=(0,))(block_encode, projectors_odd)

qml.Hadamard(wires=ancilla_wire) # un-prepare superposition

We now randomly initialize a total of 51 phase angles. This implies that the resulting transformation will be a sum of polynomials with degrees 25 and 26, respectively.

np.random.seed(42)  # set seed for reproducibility
phi = np.random.rand(51)

Next, we select a mean-squared error (MSE) loss function. The error is computed using samples from the domain $[\frac{1}{\kappa}, 1]$ where the target function is defined. Since the polynomial produced by the QSVT circuit is complex valued, we compare its real value against our target function. We ignore the imaginary component for now.

samples_x = np.linspace(1 / kappa, 1, 100)

def target_func(x): return s * (1 / x)

def loss_func(phi): sum_square_error = 0 for x in samples_x: qsvt_matrix = qml.matrix(sum_even_odd_circ, wire_order=["ancilla", 0])(x, phi, ancilla_wire="ancilla", wires=[0]) qsvt_val = qsvt_matrix[0, 0] sum_square_error += (np.real(qsvt_val) - target_func(x)) ** 2

return sum_square_error / len(samples_x)

Thanks to PennyLane’s fully differentiable workflow, we can execute the optimization in just a few lines of code:

# Optimization:
cost = 1
iter = 0
opt = qml.AdagradOptimizer(0.1)

while cost > 0.5e-4: iter += 1 phi, cost = opt.step_and_cost(loss_func, phi)

if iter % 10 == 0 or iter == 1: print(f"iter: {iter}, cost: {cost}")

if iter > 100: print("Iteration limit reached!") break

print(f"Completed Optimization! (final cost: {cost})")
iter: 1, cost: 0.15857732565208665
iter: 10, cost: 0.0031034791528649036
iter: 20, cost: 0.0006778138155746402
iter: 30, cost: 0.00031460744228923253
iter: 40, cost: 0.00023048920828043918
iter: 50, cost: 0.00019430503819374147
iter: 60, cost: 0.000171133233046688
iter: 70, cost: 0.00015372692374648387
iter: 80, cost: 0.00013985612914810792
iter: 90, cost: 0.00012853713969711723
iter: 100, cost: 0.00011924998325595125
Iteration limit reached!
Completed Optimization! (final cost: 0.0001184101640072038)

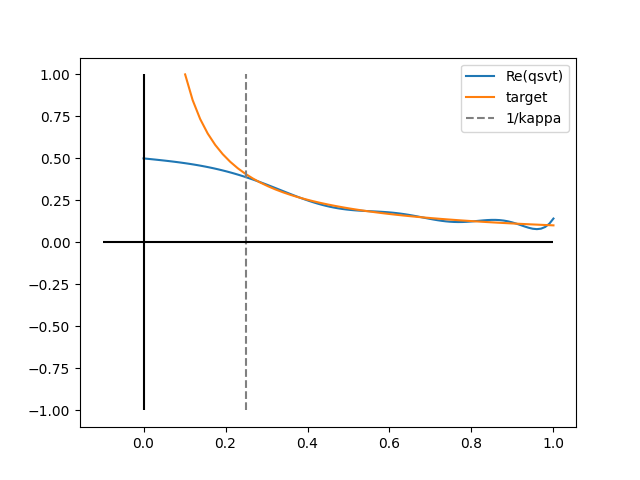

Now we plot the results:

samples_inv = np.linspace(s, 1, 50)
inv_x = [target_func(x) for x in samples_inv]

samples_x = np.linspace(0, 1, 100) qsvt_y_vals = [ np.real(qml.matrix(sum_even_odd_circ, wire_order=["ancilla", 0])(x, phi, "ancilla", wires=[0])[0, 0]) for x in samples_x ]

plt.plot(samples_x, qsvt_y_vals, label="Re(qsvt)") plt.plot(samples_inv, inv_x, label="target")

plt.vlines(1 / kappa, -1.0, 1.0, linestyle="--", color="grey", label="1/kappa") plt.vlines(0.0, -1.0, 1.0, color="black") plt.hlines(0.0, -0.1, 1.0, color="black")

plt.legend() plt.show()
tutorial apply qsvt

Awesome, we successfully optimized the phase angles! While we used a simple loss function and optimizer, more sophisticated optimization schemes have been presented in literature to robustly train the phase angles for QSVT (see 2).

Let $\hat{U}_{qsvt}(\vec{\phi}, x)$ represent the unitary matrix of the QSVT algorithm. Both of the methods above produce phase angles $\vec{\phi}$ such that:

$$ Re[\hat{U}_{qsvt}(\vec{\phi}, x)] \approx P(x). $$

In general, the imaginary part of this transformation will not be zero. We need an operator which only applies the real component. Note that we can express the real part of a complex number $z$ as $Re[z] = \frac{1}{2}(z + z^{*}).$ Similarly, for operators this is given by:

$$ \hat{U}_{real}(\vec{\phi}) = \frac{1}{2} \ ( \hat{U}_{qsvt}(\vec{\phi}) + \hat{U}^{*}_{qsvt}(\vec{\phi}) ). $$

Here we use a two-term LCU to define the quantum function for this operator. We obtain the complex conjugate of $\hat{U}_{qsvt}$ by taking the adjoint of the operator block-encoding $A^{T}:$

def real_u(A, phi):
    qml.Hadamard(wires="ancilla1")

qml.ctrl(sum_even_odd_circ, control=("ancilla1",), control_values=(0,))(A, phi, "ancilla2", [0, 1, 2]) qml.ctrl(qml.adjoint(sum_even_odd_circ), control=("ancilla1",), control_values=(1,))(A.T, phi, "ancilla2", [0, 1, 2])

qml.Hadamard(wires="ancilla1")

Let’s take everything we have learned and apply it to solve a linear system of equations.

Solving a Linear System with QSVT

Our goal is to solve the equation $A \cdot \vec{x} = \vec{b}.$ This method assumes the matrix we will invert is hermitian. Let’s begin by defining the specific matrix $A$ and vector $\vec{b}$ :

A = np.array(
    [
        [0.65713691, -0.05349524, 0.08024556, -0.07242864],
        [-0.05349524, 0.65713691, -0.07242864, 0.08024556],
        [0.08024556, -0.07242864, 0.65713691, -0.05349524],
        [-0.07242864, 0.08024556, -0.05349524, 0.65713691],
    ]
)

b = np.array([1, 2, 3, 4], dtype="complex") target_x = np.linalg.inv(A) @ b # true solution

# Normalize states: norm_b = np.linalg.norm(b) normalized_b = b / norm_b

norm_x = np.linalg.norm(target_x) normalized_x = target_x / norm_x

To solve the linear system we construct a quantum circuit that first prepares the normalized vector $\vec{b}$ in the working qubit register. Next we call the real_u(A.T, phi) function that we previously constructed. This is equivalent to applying $s \cdot A^{-1}$ to the prepared state. Finally, we return the state at the end of the circuit.

The subset of qubits which prepared the $\vec{b}$ vector should be transformed to represent $\vec{x}$ (up to scaling factors):

@qml.qnode(qml.device("default.qubit", wires=["ancilla1", "ancilla2", 0, 1, 2]))
def linear_system_solver_circuit(phi):
    qml.StatePrep(normalized_b, wires=[1, 2])
    real_u(A.T, phi)  # invert the singular values of A transpose to get A^-1
    return qml.state()

transformed_state = linear_system_solver_circuit(phi)[:4] # first 4 entries of the state rescaled_computed_x = transformed_state * norm_b / s normalized_computed_x = rescaled_computed_x / np.linalg.norm(rescaled_computed_x)

print("target x:", np.round(normalized_x, 3)) print("computed x:", np.round(normalized_computed_x, 3))
target x: [0.205+0.j 0.335+0.j 0.582+0.j 0.712+0.j]
computed x: [0.202-0.j 0.341+0.j 0.576-0.j 0.715-0.j]

We have successfully solved the linear system 🎉! Notice that the target state and computed state agree well with only some slight deviations.

Conclusion

In this demo, we showcased the qsvt() functionality in PennyLane. We explained how to integrate phase angles computed with external packages and how to use PennyLane to optimize the phase angles directly. Finally, we described how to apply QSVT to solve an example linear system.

While this demo covered simple example, the general problem of solving linear systems of equations is often the bottleneck in many applications from regression analysis in financial modelling to simulating fluid dynamics for jet engine design. We hope that PennyLane can help you along the way to your next big discovery in quantum algorithms.

References

1

András Gilyén, Yuan Su, Guang Hao Low, Nathan Wiebe, “Quantum singular value transformation and beyond: exponential improvements for quantum matrix arithmetics”, Proceedings of the 51st Annual ACM SIGACT Symposium on the Theory of Computing, 2019

2

Dong Y, Meng X, Whaley K, Lin L, “Efficient phase-factor evaluation in quantum signal processing”, Phys. Rev. A 103, 042419 –, 2021

3

Chao R, Ding D, Gilyen A, Huang C, Szegedy M, “Finding Angles for Quantum Signal Processing with Machine Precision”, arXiv, 2003.02831, 2020

4

Haah J, “Product decomposition of periodic functions in quantum signal processing”, Quantum 3, 190, 2019
