How to build spin Hamiltonians¶

Hamiltonian templates¶

PennyLane provides a set of built-in functions in the qml.spin module for constructing spin Hamiltonians with minimal input needed from the user: we only need to specify the lattice that describes spin sites and the parameters that describe the interactions in our system. Let’s look at some examples for the models that are currently supported in PennyLane.

Fermi–Hubbard model¶

The Fermi–Hubbard model Hamiltonian has a kinetic energy component, which is parameterized by a hopping parameter $t$, and a potential energy component which is parameterized by the on-site interaction strength, $U$:

$$ H = -t\sum_{\left< i,j \right>, \sigma} c_{i\sigma}^{\dagger}c_{j\sigma} + U\sum_{i}n_{i \uparrow} n_{i\downarrow}. $$

The terms $c^{\dagger}, c$ are the creation and annihilation operators, $\left< i,j \right>$ represents the indices of neighbouring spins, $\sigma$ is the spin degree of freedom, and $n_{i \uparrow}, n_{i \downarrow}$ are the number operators for the spin-up and spin-down fermions at site $i$, denoted by $0$ and $1$ respectively. This model is often used as a simplified model to investigate superconductivity.

The Fermi–Hubbard Hamiltonian can be constructed in PennyLane by passing the hopping and interaction parameters to the fermi_hubbard() function. We also need to specify the shape of the lattice that describes the positions of the spin sites. We will show an example here, and the full list of supported lattice shapes is provided in the generate_lattice() documentation.

We can also define the number of lattice cells we would like to include in our Hamiltonian as a list of integers for $x, y, z$ directions, depending on the lattice shape. Here we generate the Fermi–Hubbard Hamiltonian on a square lattice of shape $2 \times 2$. The square lattice is constructed from unit cells that contain only one site such that we will have $2 \times 2 = 4$ sites in total. We will provide more details on constructing lattices in the following sections.

import pennylane as qml

n_cells = [2, 2]
hopping = 0.2
onsite = 0.3

hamiltonian = qml.spin.fermi_hubbard('square', n_cells, hopping, onsite)
print('Hamiltonian:\n')
hamiltonian

Hamiltonian:


(
    -0.1 * (Y(0) @ Z(1) @ Y(2))
  + -0.1 * (X(0) @ Z(1) @ X(2))
  + 0.3 * I([0, 1, 2, 3, 4, 5, 6, 7])
  + -0.1 * (Y(1) @ Z(2) @ Y(3))
  + -0.1 * (X(1) @ Z(2) @ X(3))
  + -0.1 * (Y(0) @ Z(1) @ Z(2) @ Z(3) @ Y(4))
  + -0.1 * (X(0) @ Z(1) @ Z(2) @ Z(3) @ X(4))
  + -0.1 * (Y(1) @ Z(2) @ Z(3) @ Z(4) @ Y(5))
  + -0.1 * (X(1) @ Z(2) @ Z(3) @ Z(4) @ X(5))
  + -0.1 * (Y(2) @ Z(3) @ Z(4) @ Z(5) @ Y(6))
  + -0.1 * (X(2) @ Z(3) @ Z(4) @ Z(5) @ X(6))
  + -0.1 * (Y(3) @ Z(4) @ Z(5) @ Z(6) @ Y(7))
  + -0.1 * (X(3) @ Z(4) @ Z(5) @ Z(6) @ X(7))
  + -0.1 * (Y(4) @ Z(5) @ Y(6))
  + -0.1 * (X(4) @ Z(5) @ X(6))
  + -0.1 * (Y(5) @ Z(6) @ Y(7))
  + -0.1 * (X(5) @ Z(6) @ X(7))
  + -0.075 * Z(1)
  + -0.075 * Z(0)
  + 0.075 * (Z(0) @ Z(1))
  + -0.075 * Z(3)
  + -0.075 * Z(2)
  + 0.075 * (Z(2) @ Z(3))
  + -0.075 * Z(5)
  + -0.075 * Z(4)
  + 0.075 * (Z(4) @ Z(5))
  + -0.075 * Z(7)
  + -0.075 * Z(6)
  + 0.075 * (Z(6) @ Z(7))
)

Let’s also visualize the square lattice we created. To do that, we need to create a simple plotting function, as well as the helper function generate_lattice(), which you will learn more about in the next sections.

import matplotlib.pyplot as plt

def plot(lattice, figsize=None, showlabel=True):

    # initialize the plot
    if not figsize:
        figsize = lattice.n_cells[::-1]

    plt.figure(figsize=figsize)

    # get lattice nodes and edges and plot them
    nodes = lattice.lattice_points

    for edge in lattice.edges:
        start_index, end_index, color = edge
        start_pos, end_pos = nodes[start_index], nodes[end_index]

        x_axis = [start_pos[0], end_pos[0]]
        y_axis = [start_pos[1], end_pos[1]]
        plt.plot(x_axis, y_axis, color='gold')

        plt.scatter(nodes[:,0], nodes[:,1], color='dodgerblue', s=100)

        if showlabel:
            for index, pos in enumerate(nodes):
                plt.text(pos[0]-0.2, pos[1]+0.1, str(index), color='gray')

    plt.axis("off")
    plt.show()

lattice = qml.spin.generate_lattice('square', n_cells)
plot(lattice)

We currently support the following in-built lattice shapes: chain, square, rectangle, triangle, honeycomb, kagome, lieb, cubic, bcc, fcc and diamond. More details are provided here.

Heisenberg model¶

The Heisenberg model Hamiltonian is defined as

$$ H = J\sum_{ < i, j >}(\sigma_i ^ x\sigma_j ^ x + \sigma_i ^ y\sigma_j ^ y + \sigma_i ^ z\sigma_j ^ z), $$

where $J$ is the coupling constant and $\sigma$ is a Pauli operator. The Hamiltonian can be constructed on a triangle lattice as follows.

coupling = [0.5, 0.5, 0.5]
hamiltonian = qml.spin.heisenberg('triangle', n_cells, coupling)

lattice = qml.spin.generate_lattice('triangle', n_cells)
plot(lattice)

Transverse-field Ising model¶

The transverse-field Ising model (TFIM) Hamiltonian is defined as

$$ H = -J \sum_{<i,j>} \sigma_i^{z} \sigma_j^{z} - h\sum_{i} \sigma_{i}^{x}, $$

where $J$ is the coupling constant, $h$ is the strength of the transverse magnetic field and $\sigma$ is a Pauli operator. The Hamiltonian can be constructed on the honeycomb lattice as follows.

coupling, h = 0.5, 1.0
hamiltonian = qml.spin.transverse_ising('honeycomb', n_cells, coupling, h)

lattice = qml.spin.generate_lattice('honeycomb', n_cells)
plot(lattice)

coupling = [0.5, 0.6, 0.7]
hamiltonian = qml.spin.kitaev(n_cells, coupling)

Haldane model¶

The Haldane model Hamiltonian is defined as

$$ H = - t^{1} \sum_{\langle i,j \rangle, \sigma} c_{i\sigma}^\dagger c_{j\sigma} - t^{2} \sum_{\langle\langle i,j \rangle\rangle, \sigma} \left( e^{i\phi} c_{i\sigma}^\dagger c_{j\sigma} + e^{-i\phi} c_{j\sigma}^\dagger c_{i\sigma} \right), $$

where $t^{1}$ is the hopping amplitude between neighbouring sites $\langle i,j \rangle$, $t^{2}$ is the hopping amplitude between next-nearest neighbour sites $\langle \langle i,j \rangle \rangle$, $\phi$ is the phase factor that breaks time-reversal symmetry in the system, and $\sigma$ is the spin degree of freedom. This function assumes two fermions with opposite spins on each lattice site. The Hamiltonian can be constructed on the kagome lattice using the following code.

hopping = 0.5
hopping_next = 1.0
phi = 0.1
hamiltonian = qml.spin.haldane('kagome', n_cells, hopping, hopping_next, phi)

lattice = qml.spin.generate_lattice('kagome', n_cells)
plot(lattice)

Emery model¶

The Emery model Hamiltonian is defined as

$$ H = - t \sum_{\langle i,j \rangle, \sigma} c_{i\sigma}^{\dagger}c_{j\sigma} + U \sum_{i} n_{i \uparrow} n_{i\downarrow} + V \sum_{<i,j>} (n_{i \uparrow} + n_{i \downarrow})(n_{j \uparrow} + n_{j \downarrow})\ , $$

where $t$ is the hopping term representing the kinetic energy of electrons, $U$ is the on-site Coulomb interaction representing the repulsion between electrons, $V$ is the intersite coupling, $\sigma$ is the spin degree of freedom, and $n_{k \uparrow}$, $n_{k \downarrow}$ are number operators for spin-up and spin-down fermions at site $k$. This function assumes two fermions with opposite spins on each lattice site. The Hamiltonian can be constructed on the lieb lattice as follows.

hopping = 0.5
coulomb = 1.0
intersite_coupling = 0.2
hamiltonian = qml.spin.emery('lieb', n_cells, hopping, coulomb, intersite_coupling)

lattice = qml.spin.generate_lattice('lieb', n_cells)
plot(lattice)

Building Hamiltonians manually¶

The Hamiltonian template functions are great and simple tools for someone who just wants to build a Hamiltonian quickly. PennyLane also offers tools for building customized Hamiltonians. Let’s learn how to use these tools by constructing the Hamiltonian for the transverse-field Ising model on a two-dimensional lattice.

The Hamiltonian is represented as:

where $J$ is the coupling defined for the Hamiltonian, $h$ is the strength of transverse magnetic field, and $\left< i,j \right>$ represents the indices of neighbouring spins.

Our approach for doing this is to construct a lattice that represents the spin sites and their connectivity. This is done by using the Lattice class, which can be constructed either by calling the helper function generate_lattice() or by manually constructing the object. Let’s see examples of both methods. First we use generate_lattice() to construct a square lattice containing $3 \times 3 = 9$ cells. Because each cell of the square lattice contains only one site, we get $9$ sites in total, which are all connected to their nearest neighbor.

lattice = qml.spin.generate_lattice('square', [3, 3])

To visualize this lattice, we use the plotting function we created before.

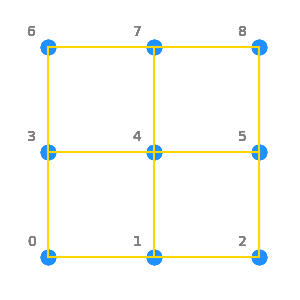

plot(lattice)

Now, we construct a lattice manually by explicitly defining the positions of the sites in a unit cell, the primitive translation vectors defining the lattice and the number of cells in each direction 1. Recall that a unit cell is the smallest repeating unit of a lattice.

Let’s create a square-octagon 2 lattice manually. Our lattice can be constructed in a two-dimensional Cartesian coordinate system with two primitive translation vectors defined as unit vectors along the $x$ and $y$ directions, and four lattice point located inside the unit cell. We also assume that the lattice has three unit cells along each direction.

from pennylane.spin import Lattice

positions = [[0.2, 0.5], [0.5, 0.2],
             [0.5, 0.8], [0.8, 0.5]] # coordinates of sites
vectors = [[1, 0], [0, 1]] # primitive translation vectors
n_cells = [3, 3] # number of unit cells in each direction

lattice = Lattice(n_cells, vectors, positions, neighbour_order=2)

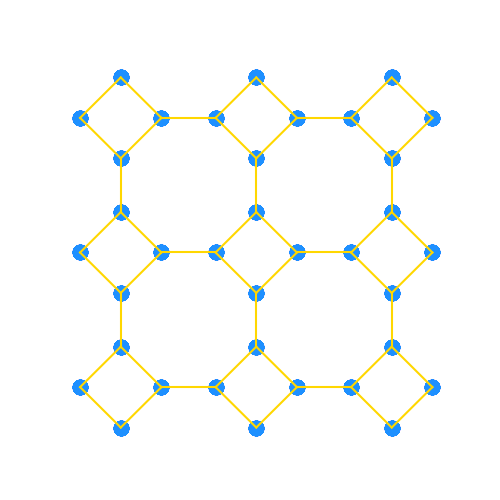

plot(lattice, figsize = (5, 5), showlabel=False)

Constructing the lattice manually is more flexible, while generate_lattice() only works for some predefined lattice shapes.

Now that we have the lattice, we can use its attributes, e.g., edges and vertices, to construct our transverse-field Ising model Hamiltonian. For instance, we can access the number of sites with lattice.n_sites and the indices that define each edge with lattice.edges_indices. For the full list of attributes, please see the documentation of the Lattice class. We also need to define the coupling, $J$, and onsite parameters of the Hamiltonian, $h$.

from pennylane import X, Y, Z

coupling, onsite = 0.25, 0.75

hamiltonian = 0.0
# add the one-site terms
for vertex in range(lattice.n_sites):
    hamiltonian += -onsite * X(vertex)

# add the coupling terms
for edge in lattice.edges_indices:
    i, j = edge[0], edge[1]
    hamiltonian += - coupling * (Z(i) @ Z(j))

hamiltonian

(
    -0.75 * X(0)
  + -0.75 * X(1)
  + -0.75 * X(2)
  + -0.75 * X(3)
  + -0.75 * X(4)
  + -0.75 * X(5)
  + -0.75 * X(6)
  + -0.75 * X(7)
  + -0.75 * X(8)
  + -0.75 * X(9)
  + -0.75 * X(10)
  + -0.75 * X(11)
  + -0.75 * X(12)
  + -0.75 * X(13)
  + -0.75 * X(14)
  + -0.75 * X(15)
  + -0.75 * X(16)
  + -0.75 * X(17)
  + -0.75 * X(18)
  + -0.75 * X(19)
  + -0.75 * X(20)
  + -0.75 * X(21)
  + -0.75 * X(22)
  + -0.75 * X(23)
  + -0.75 * X(24)
  + -0.75 * X(25)
  + -0.75 * X(26)
  + -0.75 * X(27)
  + -0.75 * X(28)
  + -0.75 * X(29)
  + -0.75 * X(30)
  + -0.75 * X(31)
  + -0.75 * X(32)
  + -0.75 * X(33)
  + -0.75 * X(34)
  + -0.75 * X(35)
  + -0.25 * (Z(2) @ Z(5))
  + -0.25 * (Z(3) @ Z(12))
  + -0.25 * (Z(6) @ Z(9))
  + -0.25 * (Z(7) @ Z(16))
  + -0.25 * (Z(11) @ Z(20))
  + -0.25 * (Z(14) @ Z(17))
  + -0.25 * (Z(15) @ Z(24))
  + -0.25 * (Z(18) @ Z(21))
  + -0.25 * (Z(19) @ Z(28))
  + -0.25 * (Z(23) @ Z(32))
  + -0.25 * (Z(26) @ Z(29))
  + -0.25 * (Z(30) @ Z(33))
  + -0.25 * (Z(0) @ Z(1))
  + -0.25 * (Z(0) @ Z(2))
  + -0.25 * (Z(1) @ Z(3))
  + -0.25 * (Z(2) @ Z(3))
  + -0.25 * (Z(4) @ Z(5))
  + -0.25 * (Z(4) @ Z(6))
  + -0.25 * (Z(5) @ Z(7))
  + -0.25 * (Z(6) @ Z(7))
  + -0.25 * (Z(8) @ Z(9))
  + -0.25 * (Z(8) @ Z(10))
  + -0.25 * (Z(9) @ Z(11))
  + -0.25 * (Z(10) @ Z(11))
  + -0.25 * (Z(12) @ Z(13))
  + -0.25 * (Z(12) @ Z(14))
  + -0.25 * (Z(13) @ Z(15))
  + -0.25 * (Z(14) @ Z(15))
  + -0.25 * (Z(16) @ Z(17))
  + -0.25 * (Z(16) @ Z(18))
  + -0.25 * (Z(17) @ Z(19))
  + -0.25 * (Z(18) @ Z(19))
  + -0.25 * (Z(20) @ Z(21))
  + -0.25 * (Z(20) @ Z(22))
  + -0.25 * (Z(21) @ Z(23))
  + -0.25 * (Z(22) @ Z(23))
  + -0.25 * (Z(24) @ Z(25))
  + -0.25 * (Z(24) @ Z(26))
  + -0.25 * (Z(25) @ Z(27))
  + -0.25 * (Z(26) @ Z(27))
  + -0.25 * (Z(28) @ Z(29))
  + -0.25 * (Z(28) @ Z(30))
  + -0.25 * (Z(29) @ Z(31))
  + -0.25 * (Z(30) @ Z(31))
  + -0.25 * (Z(32) @ Z(33))
  + -0.25 * (Z(32) @ Z(34))
  + -0.25 * (Z(33) @ Z(35))
  + -0.25 * (Z(34) @ Z(35))
)

In this example, we just used the built-in attributes of our custom lattice without further customising them. The lattice can be constructed in a more flexible way that allows us to build fully general spin Hamiltonians. Let’s look at an example.

Building anisotropic Hamiltonians¶

Now we work on a more complicated Hamiltonian. We construct the anisotropic square-trigonal 2 model, where the coupling parameters depend on the orientation of the bonds. We can construct the Hamiltonian by building the lattice manually and adding custom edges between the nodes. For instance, to define a custom XX edge with the coupling constant $0.5$ between nodes 0 and 1, we use the following.

custom_edge = [(0, 1), ('XX', 0.5)]

Let’s now build our Hamiltonian. We first define the unit cell by specifying the positions of the nodes and the translation vectors and then define the number of unit cells in each direction 2.

positions = [[0.1830, 0.3169],
             [0.3169, 0.8169],
             [0.6830, 0.1830],
             [0.8169, 0.6830]]

vectors = [[1, 0], [0, 1]]

n_cells = [3, 3]

Let’s plot the lattice to see what it looks like.

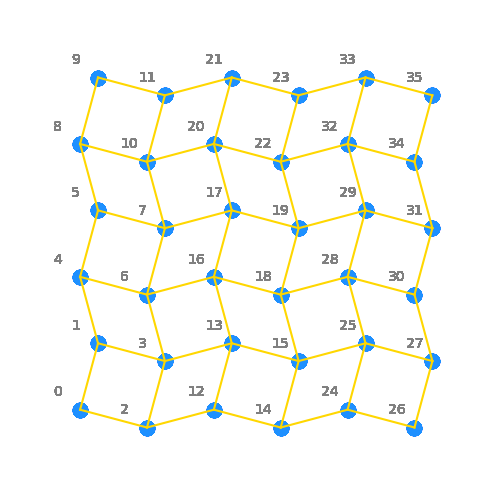

plot(Lattice(n_cells, vectors, positions), figsize=(5, 5))

Now we add custom edges to the lattice. In our example, we define four types of custom edges: the first type is the one that connects node 0 to 1, the second type is defined to connect node 0 to 2, and the third and fourth types connect node 1 to 3 and 2 to 3, respectively. Note that this is an arbitrary selection. You can define any type of custom edge you would like.

custom_edges = [[(0, 1), ('XX', 0.5)],
                [(0, 2), ('YY', 0.6)],
                [(1, 3), ('ZZ', 0.7)],
                [(2, 3), ('ZZ', 0.7)]]

lattice = Lattice(n_cells, vectors, positions, custom_edges=custom_edges)

Let’s print the lattice edges and check that our custom edge types are set correctly.

print(lattice.edges)

[(0, 1, ('XX', 0.5)), (4, 5, ('XX', 0.5)), (8, 9, ('XX', 0.5)), (12, 13, ('XX', 0.5)), (16, 17, ('XX', 0.5)), (20, 21, ('XX', 0.5)), (24, 25, ('XX', 0.5)), (28, 29, ('XX', 0.5)), (32, 33, ('XX', 0.5)), (0, 2, ('YY', 0.6)), (4, 6, ('YY', 0.6)), (8, 10, ('YY', 0.6)), (12, 14, ('YY', 0.6)), (16, 18, ('YY', 0.6)), (20, 22, ('YY', 0.6)), (24, 26, ('YY', 0.6)), (28, 30, ('YY', 0.6)), (32, 34, ('YY', 0.6)), (1, 3, ('ZZ', 0.7)), (5, 7, ('ZZ', 0.7)), (9, 11, ('ZZ', 0.7)), (13, 15, ('ZZ', 0.7)), (17, 19, ('ZZ', 0.7)), (21, 23, ('ZZ', 0.7)), (25, 27, ('ZZ', 0.7)), (29, 31, ('ZZ', 0.7)), (33, 35, ('ZZ', 0.7)), (2, 3, ('ZZ', 0.7)), (6, 7, ('ZZ', 0.7)), (10, 11, ('ZZ', 0.7)), (14, 15, ('ZZ', 0.7)), (18, 19, ('ZZ', 0.7)), (22, 23, ('ZZ', 0.7)), (26, 27, ('ZZ', 0.7)), (30, 31, ('ZZ', 0.7)), (34, 35, ('ZZ', 0.7))]

You can compare these edges with the lattice plotted above and verify the correct translation of the edges over the entire lattice sites.

Now we pass the lattice object to the spin_hamiltonian() function, which is a helper function that constructs a Hamiltonian from a lattice object.

hamiltonian = qml.spin.spin_hamiltonian(lattice=lattice)

Alternatively, you can build the Hamiltonian manually by looping over the custom edges to build the Hamiltonian.

opmap = {'X': X, 'Y': Y, 'Z': Z}

hamiltonian = 0.0
for edge in lattice.edges:
    i, j = edge[0], edge[1]
    k, l = edge[2][0][0], edge[2][0][1]
    hamiltonian += opmap[k](i) @ opmap[l](j) * edge[2][1]

hamiltonian

(
    0.5 * (X(0) @ X(1))
  + 0.5 * (X(4) @ X(5))
  + 0.5 * (X(8) @ X(9))
  + 0.5 * (X(12) @ X(13))
  + 0.5 * (X(16) @ X(17))
  + 0.5 * (X(20) @ X(21))
  + 0.5 * (X(24) @ X(25))
  + 0.5 * (X(28) @ X(29))
  + 0.5 * (X(32) @ X(33))
  + 0.6 * (Y(0) @ Y(2))
  + 0.6 * (Y(4) @ Y(6))
  + 0.6 * (Y(8) @ Y(10))
  + 0.6 * (Y(12) @ Y(14))
  + 0.6 * (Y(16) @ Y(18))
  + 0.6 * (Y(20) @ Y(22))
  + 0.6 * (Y(24) @ Y(26))
  + 0.6 * (Y(28) @ Y(30))
  + 0.6 * (Y(32) @ Y(34))
  + 0.7 * (Z(1) @ Z(3))
  + 0.7 * (Z(5) @ Z(7))
  + 0.7 * (Z(9) @ Z(11))
  + 0.7 * (Z(13) @ Z(15))
  + 0.7 * (Z(17) @ Z(19))
  + 0.7 * (Z(21) @ Z(23))
  + 0.7 * (Z(25) @ Z(27))
  + 0.7 * (Z(29) @ Z(31))
  + 0.7 * (Z(33) @ Z(35))
  + 0.7 * (Z(2) @ Z(3))
  + 0.7 * (Z(6) @ Z(7))
  + 0.7 * (Z(10) @ Z(11))
  + 0.7 * (Z(14) @ Z(15))
  + 0.7 * (Z(18) @ Z(19))
  + 0.7 * (Z(22) @ Z(23))
  + 0.7 * (Z(26) @ Z(27))
  + 0.7 * (Z(30) @ Z(31))
  + 0.7 * (Z(34) @ Z(35))
)

You can see that it is easy and intuitive to construct this anisotropic Hamiltonian with the tools available in the qml.spin module. You can use these tools to construct custom Hamiltonians for other interesting systems.

Conclusion¶

The spin module in PennyLane provides a set of powerful tools for constructing spin Hamiltonians. Here we learned how to use these tools to construct predefined Hamiltonian templates such as the Fermi–Hubbard Hamiltonian. This can be done with our built-in functions that currently support several commonly used spin models and a variety of lattice shapes. More importantly, PennyLane provides easy-to-use function to manually build spin Hamiltonians on customized lattice structures with anisotropic interactions between the sites. This can be done intuitively using the Lattice object and provided helper functions. The versatility of the new spin functionality allows you to construct any new spin Hamiltonian quickly and intuitively.

References¶
