QAOA for MaxCut

Published: October 11, 2019. Last updated: November 20, 2024.

In this tutorial we implement the quantum approximate optimization algorithm (QAOA) for the MaxCut problem as proposed by Farhi, Goldstone, and Gutmann (2014). First, we give an overview of the MaxCut problem using a simple example, a graph with 4 vertices and 4 edges. We then show how to find the maximum cut by running the QAOA algorithm using PennyLane.

Background

The MaxCut problem

The aim of MaxCut is to maximize the number of edges (yellow lines) in a graph that are “cut” by a given partition of the vertices (blue circles) into two sets (see figure below).

qaoa_operators

Consider a graph with $m$ edges and $n$ vertices. We seek the partition $z$ of the vertices into two sets $A$ and $B$ which maximizes

$$ C(z) = \sum_{\alpha=1}^{m}C_\alpha(z), $$

where $C$ counts the number of edges cut. $C_\alpha(z)=1$ if $z$ places one vertex from the $\alpha^\text{th}$ edge in set $A$ and the other in set $B,$ and $C_\alpha(z)=0$ otherwise. Finding a cut which yields the maximum possible value of $C$ is an NP-complete problem, so our best hope for a polynomial-time algorithm lies in an approximate optimization. In the case of MaxCut, this means finding a partition $z$ which yields a value for $C(z)$ that is close to the maximum possible value.

We can represent the assignment of vertices to set $A$ or $B$ using a bitstring, $z=z_1...z_n$ where $z_i=0$ if the $i^\text{th}$ vertex is in $A$ and $z_i = 1$ if it is in $B.$ For instance, in the situation depicted in the figure above the bitstring representation is $z=0101\text{,}$ indicating that the $0^{\text{th}}$ and $2^{\text{nd}}$ vertices are in $A$ while the $1^{\text{st}}$ and $3^{\text{rd}}$ are in $B.$ This assignment yields a value for the objective function (the number of yellow lines cut) $C=4,$ which turns out to be the maximum cut. In the following sections, we will represent partitions using computational basis states and use PennyLane to rediscover this maximum cut.

Note

In the graph above, $z=1010$ could equally well serve as the maximum cut.

A circuit for QAOA

This section describes implementing a circuit for QAOA using basic unitary gates to find approximate solutions to the MaxCut problem. Firstly, denoting the partitions using computational basis states $|z\rangle,$ we can represent the terms in the objective function as operators acting on these states

$$ C_\alpha = \frac{1}{2}\left(1-\sigma_{z}^j\sigma_{z}^k\right), $$

where the $\alpha\text{th}$ edge is between vertices $(j,k).$ $C_\alpha$ has eigenvalue 1 if and only if the $j\text{th}$ and $k\text{th}$ qubits have different z-axis measurement values, representing separate partitions. The objective function $C$ can be considered a diagonal operator with integer eigenvalues.

QAOA starts with a uniform superposition over the $n$ bitstring basis states,

$$ |+_{n}\rangle = \frac{1}{\sqrt{2^n}}\sum_{z\in \{0,1\}^n} |z\rangle. $$

We aim to explore the space of bitstring states for a superposition which is likely to yield a large value for the $C$ operator upon performing a measurement in the computational basis. Using the $2p$ angle parameters $\boldsymbol{\gamma} = \gamma_1\gamma_2...\gamma_p,$ $\boldsymbol{\beta} = \beta_1\beta_2...\beta_p$ we perform a sequence of operations on our initial state:

$$ |\boldsymbol{\gamma},\boldsymbol{\beta}\rangle = U_{B_p}U_{C_p}U_{B_{p-1}}U_{C_{p-1}}...U_{B_1}U_{C_1}|+_n\rangle $$

where the operators have the explicit forms

$$ \begin{split}U_{B_l} &= e^{-i\beta_lB} = \prod_{j=1}^n e^{-i\beta_l\sigma_x^j}, \\ U_{C_l} &= e^{-i\gamma_lC} = \prod_{\text{edge (j,k)}} e^{-i\gamma_l(1-\sigma_z^j\sigma_z^k)/2}.\end{split} $$

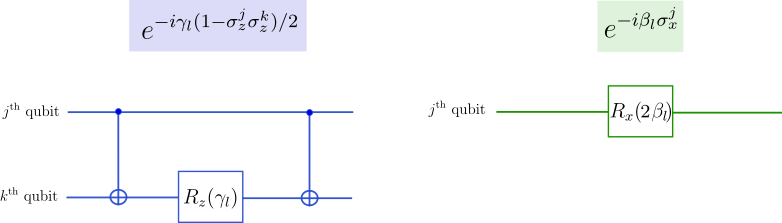

In other words, we make $p$ layers of parametrized $U_bU_C$ gates. These can be implemented on a quantum circuit using the gates depicted below, up to an irrelevant constant that gets absorbed into the parameters.

qaoa_operators

Note

An alternative implementation of $U_{C_l}$ would be $ZZ(\gamma_l)$, available via IsingZZ in PennyLane.

Let $\langle \boldsymbol{\gamma}, \boldsymbol{\beta} | C | \boldsymbol{\gamma},\boldsymbol{\beta} \rangle$ be the expectation of the objective operator. In the next section, we will use PennyLane to perform classical optimization over the circuit parameters $(\boldsymbol{\gamma}, \boldsymbol{\beta}).$ This will specify a state $|\boldsymbol{\gamma},\boldsymbol{\beta}\rangle$ which is likely to yield an approximately optimal partition $|z\rangle$ upon performing a measurement in the computational basis. In the case of the graph shown above, we want to measure either 0101 or 1010 from our state since these correspond to the optimal partitions.

optimal_state

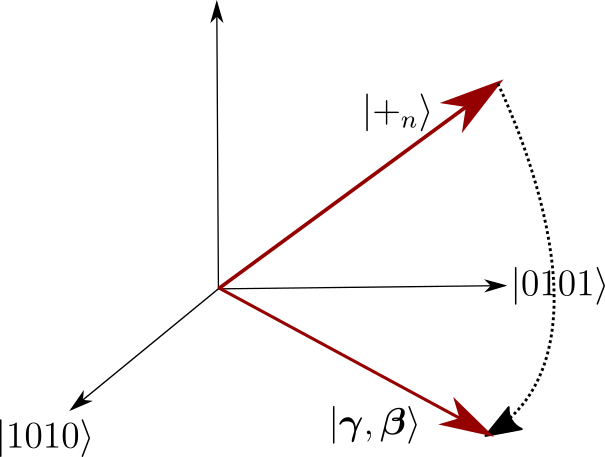

Qualitatively, QAOA tries to evolve the initial state into the plane of the $|0101\rangle,$ $|1010\rangle$ basis states (see figure above).

Implementing QAOA in PennyLane

Imports and setup

To get started, we import PennyLane along with the PennyLane-provided version of NumPy.

import pennylane as qml
from pennylane import numpy as np

np.random.seed(42)

Operators

We specify the number of qubits (vertices) with n_wires and compose the unitary operators using the definitions above. $U_B$ operators act on individual wires, while $U_C$ operators act on wires whose corresponding vertices are joined by an edge in the graph. We also define the graph using the list graph, which contains the tuples of vertices defining each edge in the graph.

n_wires = 4
graph = [(0, 1), (0, 3), (1, 2), (2, 3)]

# unitary operator U_B with parameter beta def U_B(beta): for wire in range(n_wires): qml.RX(2 * beta, wires=wire)

# unitary operator U_C with parameter gamma def U_C(gamma): for edge in graph: qml.CNOT(wires=edge) qml.RZ(gamma, wires=edge[1]) qml.CNOT(wires=edge) # Could also do # IsingZZ(gamma, wires=edge)

We will need a way to convert a bitstring, representing a sample of multiple qubits in the computational basis, to integer or base-10 form.

def bitstring_to_int(bit_string_sample):
    return int(2 ** np.arange(len(bit_string_sample)) @ bit_string_sample[::-1])

Circuit

Next, we create a quantum device with 4 qubits.

dev = qml.device("lightning.qubit", wires=n_wires, shots=20)

We also require a quantum node which will apply the operators according to the angle parameters, and return the expectation value of $\sum_{\text{edge} (j,k)}\sigma_z^{j}\sigma_z^k$ for the cost Hamiltonian $C.$ We set up this node to take the parameters gammas and betas as inputs, which determine the number of layers (repeated applications of $U_BU_C$) of the circuit via their length. We also give the node a keyword argument return_samples. If set to False (default), the expectation value of the cost Hamiltonian is returned. Once optimized, the same quantum node can be used for sampling an approximately optimal bitstring by setting return_samples=True.

@qml.qnode(dev)
def circuit(gammas, betas, return_samples=False):
    # apply Hadamards to get the n qubit |+> state
    for wire in range(n_wires):
        qml.Hadamard(wires=wire)
    # p instances of unitary operators
    for gamma, beta in zip(gammas, betas):
        U_C(gamma)
        U_B(beta)

if return_samples: # sample bitstrings to obtain cuts return qml.sample() # during the optimization phase we are evaluating the objective using expval C = qml.sum(*(qml.Z(w1) @ qml.Z(w2) for w1, w2 in graph)) return qml.expval(C)

def objective(params): """Minimize the negative of the objective function C by postprocessing the QNnode output.""" return -0.5 * (len(graph) - circuit(*params))

Optimization

Finally, we optimize the objective over the angle parameters $\boldsymbol{\gamma}$ (params[0]) and $\boldsymbol{\beta}$ (params[1]) and then sample the optimized circuit multiple times to yield a distribution of bitstrings. The optimal partitions ($z=0101$ or $z=1010$) should be the most frequently sampled bitstrings. We perform a maximization of $C$ by minimizing $-C,$ following the convention that optimizations are cast as minimizations in PennyLane.

def qaoa_maxcut(n_layers=1):
    print(f"\np={n_layers:d}")

# initialize the parameters near zero init_params = 0.01 * np.random.rand(2, n_layers, requires_grad=True)

# initialize optimizer: Adagrad works well empirically opt = qml.AdagradOptimizer(stepsize=0.5)

# optimize parameters in objective params = init_params.copy() steps = 30 for i in range(steps): params = opt.step(objective, params) if (i + 1) % 5 == 0: print(f"Objective after step {i+1:3d}: {-objective(params): .7f}")

# sample 100 bitstrings by setting return_samples=True and the QNode shot count to 100 bitstrings = circuit(*params, return_samples=True, shots=100) # convert the samples bitstrings to integers sampled_ints = [bitstring_to_int(string) for string in bitstrings]

# print optimal parameters and most frequently sampled bitstring counts = np.bincount(np.array(sampled_ints)) most_freq_bit_string = np.argmax(counts) print(f"Optimized parameter vectors:\ngamma: {params[0]}\nbeta: {params[1]}") print(f"Most frequently sampled bit string is: {most_freq_bit_string:04b}")

return -objective(params), sampled_ints

# perform QAOA on our graph with p=1,2 and keep the lists of sampled integers int_samples1 = qaoa_maxcut(n_layers=1)[1] int_samples2 = qaoa_maxcut(n_layers=2)[1]
p=1
Objective after step   5:  2.9000000
Objective after step  10:  3.0000000
Objective after step  15:  3.0000000
Objective after step  20:  2.5000000
Objective after step  25:  3.0000000
Objective after step  30:  2.9000000
Optimized parameter vectors:
gamma: [0.83723189]
beta:  [1.17901401]
Most frequently sampled bit string is: 1010

p=2 Objective after step 5: 3.4000000 Objective after step 10: 4.0000000 Objective after step 15: 4.0000000 Objective after step 20: 4.0000000 Objective after step 25: 3.9000000 Objective after step 30: 4.0000000 Optimized parameter vectors: gamma: [-0.96882675 -1.02483278] beta: [0.52708703 0.50135235] Most frequently sampled bit string is: 1010

For n_layers=1, we find an objective function value of around $C=3.$ In the case where we set n_layers=2, we recover the optimal objective function $C=4.$

Plotting the results

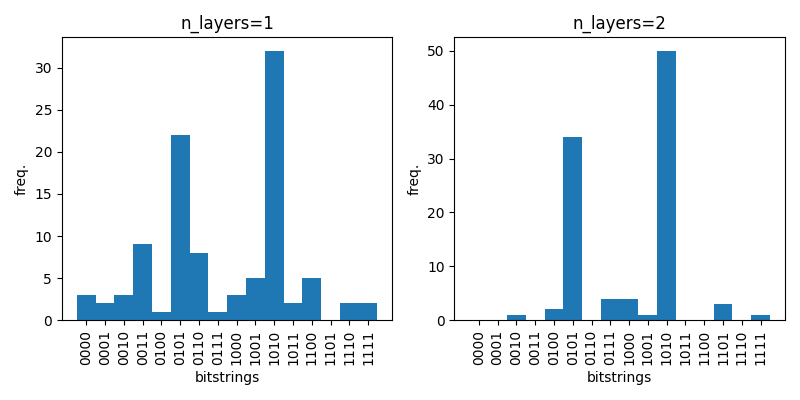

We can plot the distribution of measurements obtained from the optimized circuits. As expected for this graph, the partitions 0101 and 1010 are measured with the highest frequencies, and in the case where we set n_layers=2 we obtain one of the optimal partitions with 100% certainty.

import matplotlib.pyplot as plt

xticks = range(0, 16) xtick_labels = list(map(lambda x: format(x, "04b"), xticks)) bins = np.arange(0, 17) - 0.5

fig, _ = plt.subplots(1, 2, figsize=(8, 4)) for i, samples in enumerate([int_samples1, int_samples2], start=1): plt.subplot(1, 2, i) plt.title(f"n_layers={i}") plt.xlabel("bitstrings") plt.ylabel("freq.") plt.xticks(xticks, xtick_labels, rotation="vertical") plt.hist(samples, bins=bins) plt.tight_layout() plt.show()
n_layers=1, n_layers=2
