Gate calibration with reinforcement learning

Published: April 9, 2024. Last updated: November 6, 2024.

Gate-based quantum circuits are the most common representation of quantum computations. These provide an abstraction layer that enables the development of quantum algorithms without considering the hardware in charge of the execution. However, every quantum platform offers a different set of interactions and controls that define the natural operations that can be performed in the hardware. These are known as the native gates of the device, and they constitute the fundamental building blocks of any quantum algorithm executed in it. Therefore, it is essential that such operations are performed as accurately as possible, which requires the careful tuning of the hardware’s controls. In this demo, we will learn how to use reinforcement learning to find the optimal control parameters to accurately execute quantum gates. We will implement an experimentally-friendly protocol based on the direct interaction with the hardware, following the main ideas in 1, which we illustrate using superconducting qubits as an example.

/_images/DemoOG_RLpulse.png

Gate calibration

Calibrating quantum gates consists in finding the best possible control parameters of the device that yield the most accurate gate execution. For instance, the gates in superconducting quantum devices are performed by targeting the qubits with microwave pulses of the form

$$ \Omega(t)\sin(\phi(t) + \omega_p t)\,, $$

where $\Omega(t)$ is a time-dependent amplitude, $\phi(t)$ is a time-dependent phase, and $\omega_p$ is the pulse’s frequency. Hence, the proper execution of any gate relies on the careful selection of these parameters in combination with the pulse duration, which we collectively refer to as a pulse program. However, each qubit in the device has distinct properties, such as the frequency and the connectivity to other qubits. These differences cause the same pulse programs to produce different operations for every qubit. Consequently, every gate must be carefully calibrated for each individual qubit in the hardware. For further details about superconducting quantum computers and their control see this demo.

A common strategy to calibrate quantum gates involves the detailed modelling of the quantum computer, enabling the gate optimization through analytical and numerical techniques. Nevertheless, developing such accurate models requires an exhaustive characterization of the hardware, and it can be challenging to account for all the relevant interactions in practice.

An alternative promissing approach is through the direct interaction with the device, refraining from deriving any explicit model of the system. Here, we frame qubit calibration as a reinforcement learning problem, drawing inspiration from the experimentally-friendly method proposed in reference 1. In this setting, a reinforcement learning agent learns to calibrate the gates by tuning the control parameters and directly observing the response of the qubits. Through this process, the agent implicitly learns an effective model of the device, as it faces all the experimental nuances associated with the process of executing the gates, such as the effect of the most relevant noise sources. This makes the resulting agent an excellent calibrator that is robust to these phenomena.

The procedure that we present below is entirely agnostic to the quantum hardware. Among all the possibilities, we will ilustrate it using coupled-transmon superconducting quantum computers simulated with PennyLane. This will allow us to focus on the method itself, skipping some of the nuances associated with the execution on real devices, while ensuring that the resulting code can be easily adapted to run in a quantum computer using the PennyLane plugins, as shown in this demo.

Reinforcement learning basics

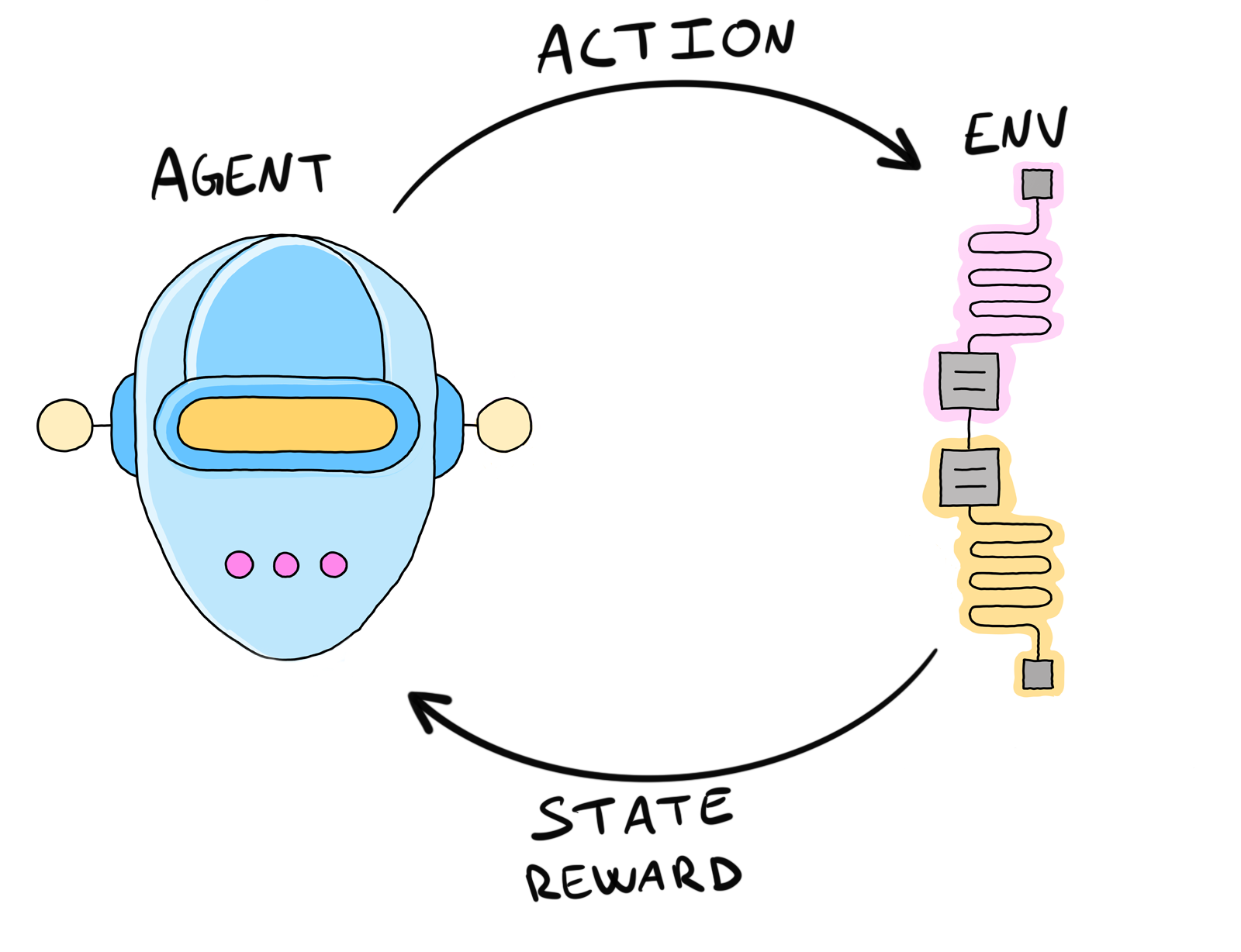

In the typical reinforcement learning setting, we find two main entities: an agent and an environment. The environment contains the relevant information about the problem and defines the “rules of the game”. The main goal of the agent is to find the optimal strategy to perform a given task through the interaction with the environment.

In order to complete the desired task, the agent can observe the environment and perform actions, which can affect the environment and change its state. This way, the interaction between them is cyclic, as depicted in the figure below. Let’s take chess as an example. In this case, the agent is a player and the environment comprises the pieces on the board, the rules, and the opponent. At a given point in time, the agent observes the environment’s state, which can be the current location of all the pieces on the board. With this information, it can choose to perform a certain action, such as moving a pawn forward among all its possible moves. Doing so affects the environment, which provides the agent with the new state it is found in and a reward. The new state is the resulting board configuration after the agent’s move and the opponent’s response. The reward is a measure of how well the agent is performing the task given the last interaction. We will see more about the reward in the following section.

/_images/sketch_rl.png

The agent chooses its actions according to a policy, and the ultimate goal is to learn the optimal policy that maximizes the obtained rewards. In general, the policy can take any form, and its nature is usually related to the reinforcement learning algorithm that we implement to learn it. We will see how to learn the optimal policy later. For now, let’s see how all these concepts apply to our task.

Framing qubit calibration as a reinforcement learning problem

Our main objective is to accurately execute a desired quantum gate in our computer’s qubits. To do so, we need a way to find the correct pulse program for each qubit. In reinforcement learning terms, our agent needs to learn the optimal policy to obtain the pulse program for every qubit.

In this case, the environment is the quantum computer itself, and the states encode information about the qubit’s evolution during the pulse execution. The agent’s actions correspond to adjusting the different “control knobs” we can turn to modulate the microwave pulse. This setting allows the agent to react to the qubit’s peculiarities and adapt the pulse parameters accordingly to execute the target gate.

The hardest part of this approach is extracting information about the qubit’s evolution under the pulse, since observing it destroys the quantum state. Here, we follow a similar approach to the one introduced in 1. The main idea is to split the pulse program into segments of constant properties, commonly known as a piece-wise constant (PWC) pulse, and evaluate the intermediate states between segments:

  1. We fix the total duration and the number of segments of the PWC pulse.

  2. We reset the qubit.

  3. We perform quantum tomography to determine the qubit’s state.

  4. With this information, the agent fixes the parameters for the next pulse segment.

  5. We reset the qubit and execute the pulse up to the last segment with fixed parameters.

  6. We repeat steps 3-5 until we reach the end of the pulse and evaluate the average gate fidelity.

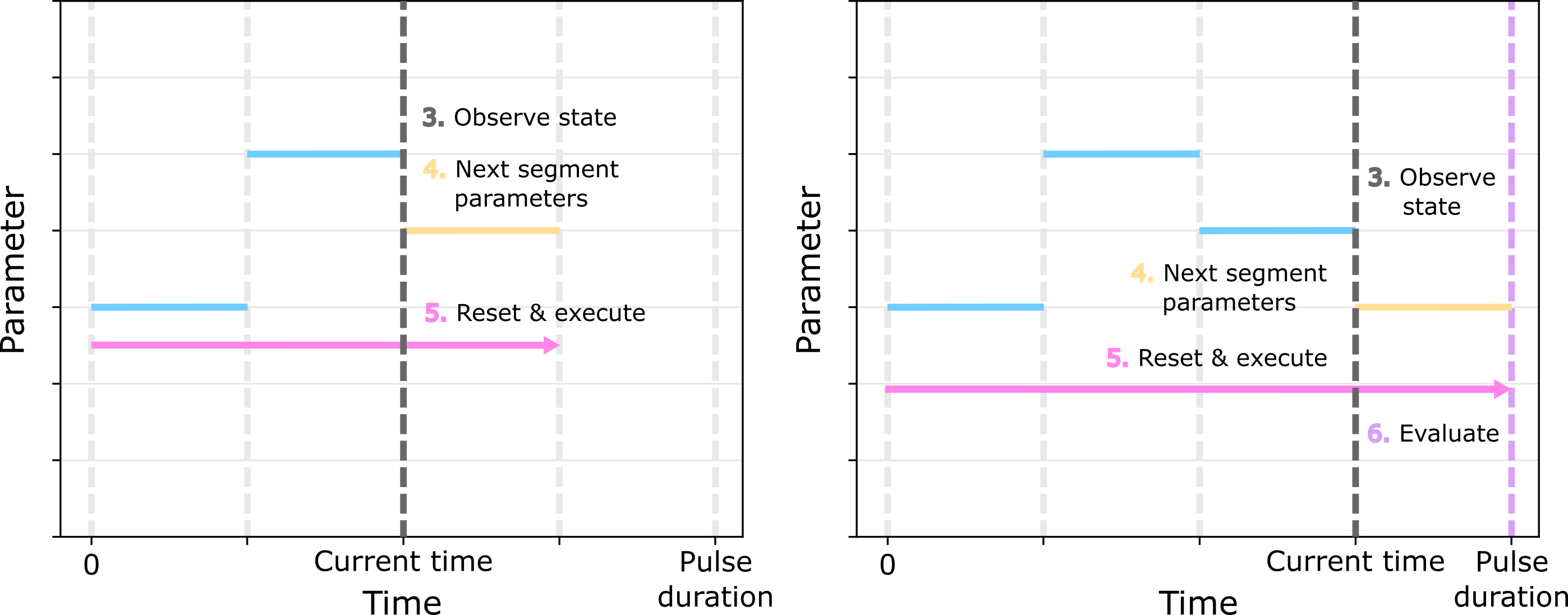

The images below show a schematic representation of the main points in the protocol. In the first image on the left, the first two pulse segments (blue) are executed as a shorter pulse than the final result. This is repeated several times to perform quantum state tomography of the state, whose result is used to determine the parameters of the next pulse segment (yellow). Afterwards, the system is reset, and the first three segments are executed, which leads to the second figure on the right. There, the steps are repeated in the same order, evolving the qubit with the first three segments several times to characterize their effect and determine the parameters of the fourth pulse segment, reaching the end of the pulse. Given that all the pulse segments are now fixed, we proceed with the evaluation of the pulse with respect to the target gate that we wish to execute.

/_images/sketch_protocol.png

With this protocol, the agent iteratively builds a PWC pulse that is tailored to the specifics of the qubit. Even though this protocol involves multiple (partial) executions of the pulse to perform the intermediate tomography steps, the overall cost remains low provided that it is only for the qubit(s) involved in the gate, typically one or two.

Building a $R_X(\pi/2)$ calibrator

Let’s take all these concepts and apply them to train a reinforcement learning agent to calibrate the single-qubit $R_X(\pi/2)$ gate (a.k.a. $\sqrt{X}$), which is a common native gate in superconducting quantum computers. To do so, we need to define:

  • The environment (hardware, actions, and rewards)

  • The agent (the policy and how to act)

  • The learning algorithm

Then, we’ll put all the pieces together and train our agent. Let’s introduce these concepts one by one and implement them from scratch with PennyLane and JAX.

The environment

As we mentioned earlier, the environment contains all the information about the problem. In an experimental setting, the actual quantum computer and how we interact with it would constitute the environment. In this demo, we will simulate it with PennyLane.

We start by defining the quantum hardware. As we mentioned above, we will simulate a superconducting quantum computer. The PennyLane pulse module provides the tools to simulate quantum systems through time, allowing us to control quantum computers at the lowest pulse level. To perform the simulation, we will define an effective time-dependent Hamiltonian for the hardware. We often distinguish between two main components: a constant drift term that describes the interaction between the qubits in our system (see transmon_interaction()), and a time-dependent drive term that accounts for the pulse (see transmon_drive()). The time-dependent Hamiltonian for a driven qubit is:

$$ H = \underbrace{-\frac{\omega_q}{2}\sigma^z}_{H_{int}} + \underbrace{\Omega(t)\sin(\phi(t) + \omega_p t)\sigma^y\,}_{H_{drive}}, $$

where $\omega_q,\omega_p$ are the frequencies of the qubit and the pulse, respectively, and $\sigma^y,\sigma^z$ denote the second and third Pauli matrices.

In order to keep the implementation as simple as possible, we will work with a single-qubit device. At the end of the demo, we provide insights on how to extend the implementation to multi-qubit devices and gates.

import pennylane as qml

# Quantum computer qubit_freqs = [4.81] # GHz connections = [] # No connections couplings = [] # No couplings wires = [0]

H_int = qml.pulse.transmon_interaction(qubit_freqs, connections, couplings, wires)

# Microwave pulse pulse_duration = 22.4 # ns n_segments = 8 segment_duration = pulse_duration / n_segments

freq = qubit_freqs[0] # Resonant with the qubit amplitude = qml.pulse.pwc(pulse_duration) phase = qml.pulse.pwc(pulse_duration)

H_drive = qml.pulse.transmon_drive(amplitude, phase, freq, wires)

# Full time-dependent parametrized Hamiltonian H = H_int + H_drive

Now that we have the effective model of our system, we need to simulate its time evolution, which can be easily done with evolve(). Since we are simulating the whole process, we can speed up the process by simplifying the qubit reset, evolution and tomography steps, which are mostly intended for the execution on actual hardware. Here, we can simply pause the time-evolution simulation, look at the qubit’s state, and then continue after the agent chooses the parameters of the subsequent segment. Hence, the environment’s state will be exactly the qubit’s state.

We will do it with a QNode that can evolve several states in parallel following different pulse programs to speed up the process.

import jax
from functools import partial

device = qml.device("default.qubit", wires=1)

@partial(jax.jit, static_argnames="H") @partial(jax.vmap, in_axes=(0, None, 0, None)) @qml.qnode(device=device, interface="jax") def evolve_states(state, H, params, t): qml.StatePrep(state, wires=wires) qml.evolve(H)(params, t, atol=1e-5) return qml.state()

state_size = 2 ** len(wires)

Now that we have a model of the quantum computer and we have defined the environment’s states, we can proceed to define the actions. As we mentioned before, the actions will adjust the knobs we can turn to generate the microwave pulse. We have four parameters to play with in our pulse program: amplitude $\Omega(t)$, phase $\phi(t)$, frequency $\omega_p,$ and duration. Out of those, we fix the duration beforehand (point 1 in the protocol), and we will always work with resonant pulses with the qubit, thus fixing the frequency $\omega_p=\omega_q.$

Hence, we will let the agent change the amplitude and the phase for every segment in our pulse program. To keep the pipeline as simple as possible, we will discretize their values within an experimentally-feasible range, and associate every action to a combination of amplitude and phase values.

import jax.numpy as jnp

jax.config.update("jax_enable_x64", True) # Coment this line for a faster execution

values_phase = jnp.linspace(-jnp.pi, jnp.pi, 9)[1:] # 8 phase values values_ampl = jnp.linspace(0.0, 0.2, 11) # 11 amplitude values ctrl_values = jnp.stack( (jnp.repeat(values_ampl, len(values_phase)), jnp.tile(values_phase, len(values_ampl))), axis=1 ) n_actions = len(ctrl_values) # 8x11 = 88 possible actions

Finally, we need to define the reward function. In the typical reinforcement learning setting, there are rewards after every action is performed, as in the schematic depiction above. However, in some cases, those rewards are zero until the task is finished. For example, if we are training an agent to play chess, we cannot evaluate every single move on its own, and we need to wait until the game is resolved in order to provide the agent with a meaningful reward.

Our case is similar to the chess example. The intermediate states visited along the time evolution do not necessarily provide a clear indication of how well the target gate is being executed. It is only once we have gone through all the pulse segments that we can see the final outcome and evaluate it as a whole, just like a chess strategy is evaluated based on the match’s result. The reward will be the average gate fidelity of our pulse program with respect to the target gate.

In order to evaluate it, we sample several random initial states and apply the pulse program a few consecutive times. Then, we compute the average fidelity between the resulting intermediate and final states from our pulse, and the expected states from the target gate. Finally, we take the weighted average of all the fidelities, giving more relevance to the initial gate applications. This process of repeatedly applying the pulse programs accumulates the errors, making our reward function more sensitive to them. This allows the agent to better refine the pulse programs.

The number of initial states and gate repetitions are hyperparameters that will add up really quickly with others such as the pulse duration, the segment duration, and so on. In order to keep the code as clean as possible, we will put all of them in a config container (a jit-friendly named tuple) and the code below will assume this container is being passed.

target = jnp.array(qml.RX(jnp.pi / 2, 0).matrix())  # RX(pi/2) gate

@partial(jax.jit, static_argnames=["H", "config"]) @partial(jax.vmap, in_axes=(0, None, None, None, None)) def compute_rewards(pulse_params, H, target, config, subkey): """Compute the reward for the pulse program based on the average gate fidelity.""" n_gate_reps = config.n_gate_reps # Sample the random initial states states = jnp.zeros((config.n_eval_states, n_gate_reps + 1, state_size), dtype=complex) states = states.at[:, 0, :].set(sample_random_states(subkey, config.n_eval_states, state_size)) target_states = states.copy()

# Repeatedly apply the gates and store the intermediate states matrix = get_pulse_matrix(H, pulse_params, config.pulse_duration) for s in range(n_gate_reps): states = states.at[:, s + 1].set(apply_gate(matrix, states[:, s])) target_states = target_states.at[:, s + 1].set(apply_gate(target, target_states[:, s]))

# Compute all the state fidelities (excluding the initial states) overlaps = jnp.einsum("abc,abc->ab", target_states[:, 1:], jnp.conj(states[:, 1:])) fidelities = jnp.abs(overlaps) ** 2

# Compute the weighted average gate fidelities weights = 2 * jnp.arange(n_gate_reps, 0, -1) / (n_gate_reps * (n_gate_reps + 1)) rewards = jnp.einsum("ab,b->a", fidelities, weights) return rewards.mean()

@partial(jax.jit, static_argnames=["n_states", "dim"]) def sample_random_states(subkey, n_states, dim): """Sample random states from the Haar measure.""" subkey0, subkey1 = jax.random.split(subkey, 2)

s = jax.random.uniform(subkey0, (n_states, dim)) s = -jnp.log(jnp.where(s == 0, 1.0, s)) norm = jnp.sum(s, axis=-1, keepdims=True) phases = jax.random.uniform(subkey1, s.shape) * 2.0 * jnp.pi random_states = jnp.sqrt(s / norm) * jnp.exp(1j * phases) return random_states

def get_pulse_matrix(H, params, time): """Compute the unitary matrix associated to the time evolution of H.""" return qml.evolve(H)(params, time, atol=1e-5).matrix()

@jax.jit def apply_gate(matrix, states): """Apply the unitary matrix of the gate to a batch of states.""" return jnp.einsum("ab,cb->ca", matrix, states)

The agent

The agent is a rather simple entity: it observes a state from the environment and selects an action among the ones we have defined above. The action selection is performed according to a policy, which is typically denoted by $\pi.$ In this case, we will use a stochastic policy $\pi_{\mathbf{\theta}}(a_i|s_t)$ that provides the probability of choosing the action $a_i$ given an observed state $s_t$ at a given time $t,$ according to some parameters $\mathbf{\theta}.$ Learning the optimal policy $\pi^*$ will consist on learning the parameters $\mathbf{\theta}^*$ that best approximate it $\pi_{\mathbf{\theta}^*}\approx\pi^*.$

We parametrize the policy with a small feed-forward neural network that takes the state $s_t$ as input, and provides the probability to select every action $a_i$ at the end. Therefore, the input and output layers have state_size=2 and n_actions=88 neurons, respectively. We include a hidden layer in between with a hyperbolic tangent activation function. Let’s implement this with Flax.

from flax import linen as nn

# Define the architecture class MLP(nn.Module): """Multi layer perceptron (MLP) with a single hidden layer."""

hidden_size: int out_size: int

@nn.compact def __call__(self, x): x = nn.Dense(self.hidden_size)(x) x = nn.tanh(x) x = nn.Dense(self.out_size)(x) return nn.softmax(jnp.sqrt((x * x.conj()).real))

policy_model = MLP(hidden_size=30, out_size=n_actions)

# Initialize the parameters passing a mock sample key = jax.random.PRNGKey(3) key, subkey = jax.random.split(key)

mock_state = jnp.empty((1, state_size)) policy_params = policy_model.init(subkey, mock_state)

To act in the environment, we simply need to pass the state through the network and sample an action according to the discrete probability distribution provided by the output layer. However, we will see how to implement it below to act and compute the policy gradient at once.

The learning algorithm

Among the plethora of reinforcement learning algorithms, we use the REINFORCE 2 algorithm. It belongs to the policy gradient algorithms family, which proposes a parametrization of the policy (as we have conveniently done in the previous section) and directly optimizes its parameters. The main principle of REINFORCE is to directly modify the policy to favour series of actions within the agent’s experience that have led to high rewards. This way, past beneficial actions are more likely to happen again.

We achieve this by maximizing the expected return of the policy. To keep it simple, we can understand the return (typically $G$) as the weighted sum of rewards along an episode, which are full executions of our reinforcement learning “game”. In our case, an episode would be the full execution of a pulse program, which is comprised by several interactions between the agent and the environment. Since the reward will only be given at the end, we will take the return to be the final reward.

We perform the maximization of the expected return by gradient ascent over the policy parameters. We can compute the gradient of the expected return as follows

$$ \nabla_{\mathbf{\theta}} \mathbb{E}\left[G\right] = \mathbb{E}\left[\sum_{t=0}^{T-1}G_t\nabla_{\mathbf{\theta}}\log\pi_{\mathbf{\theta}}(a_t|s_t)\right], $$

where the expectation values are over episodes sampled following the policy $\pi_{\mathbf{\theta}}.$ The sum goes over the episode time steps $t,$ where the agent observes the state $s_t$ and chooses to perform the action $a_t.$ The term $\nabla_{\mathbf{\theta}}\log\pi_{\mathbf{\theta}}(a_t|s_t)$ is known as the score function and it is the gradient of the logarithm of the probability with which the action is taken. Finally, $G_t$ is the return associated to the episode from time $t$ onwards, which is always the final reward of the episode, as we mentioned. This expression allows us to compute the gradient of our policy parameters without explicitly modeling the environment, hence the name “model-free” reinforcement learning.

Note

At time $t,$ an action $a_t$ on state $s_t$ leads to the next state $s_{t+1}$ and yields a reward $r_{t+1}.$ The final action is taken at time $T-1$ which yields the final state $s_T$ and reward $r_T.$ The return is the weighted sum of rewards obtained along an episode:

$$ G=\sum_{t=0}^{T-1} \gamma^t r_{t+1}\, $$

where $\gamma\in[0, 1]$ is a discount factor that favours early rewards vs latter ones. For instance, $\gamma\to0$ only values immediate rewards, whereas $\gamma\to1$ accounts equally for all the rewards regardless of the time. The return from time $t$ weights the rewards relative to the given time:

$$ G_t=\sum_{k=0}^{T-1-t} \gamma^k r_{k+t+1}, $$

where $k$ denotes the number of steps after $t.$ Note that $G\equiv G_{t=0}$ by definition. The return can also be computed recursively following the relationship $G_t = r_{t+1} + \gamma G_{t+1},$ a property exploited by some reinforcement learning algorithms.

In our case, we’re in the limit of $\gamma=1,$ provided that we only consider the final reward $r_T$ ($r_{t\neq T}=0$) and we fix the total number of interactions $T$ beforehand, given by the number of pulse segments. This greatly simplifies the expressions and the return is $G=G_t=r_T \,\forall t.$

To learn the optimal policy, we can estimate the gradient $\nabla_{\mathbf{\theta}} \mathbb{E}\left[G\right]$ by sampling a bunch of episodes following the current policy $\pi_{\mathbf{\theta}}.$ Then, we can perform a gradient ascent update to the policy parameters $\mathbf{\theta},$ sample some episodes with the new parameters, and repeat until we converge to the optimal policy.

Let’s implement these ideas one by one, starting by the episode sampling. The episodes start with the qubit in the $|0\rangle$ state. Then, we start the observe-act loop, where the agent observes the qubit’s state and chooses the parameters for the next pulse segment according to its policy. We can sample the action and compute the score function at the same time to make the code as efficient as possible. Finally, when we reach the end of the pulse program, we compute its reward. We like it when things go fast, so we’ll sample all the episodes in parallel!

@partial(jax.jit, static_argnames=["H", "config"])
def play_episodes(policy_params, H, ctrl_values, target, config, key):
    """Play episodes in parallel."""
    n_episodes, n_segments = config.n_episodes, config.n_segments

# Initialize the qubits on the |0> state states = jnp.zeros((n_episodes, n_segments + 1, target.shape[0]), dtype=complex) states = states.at[:, 0, 0].set(1.0)

# Perform the PWC evolution of the pulse program pulse_params = jnp.zeros((n_episodes, 2, n_segments)) actions = jnp.zeros((n_episodes, n_segments), dtype=int) score_functions = [] for s in range(config.n_segments): # Observe the current state and select the parameters for the next pulse segment sf, (a, key) = act(states[:, s], policy_params, key) pulse_params = pulse_params.at[..., s].set(ctrl_values[a])

# Evolve the states with the next pulse segment time_window = ( s * config.segment_duration, # Start time (s + 1) * config.segment_duration, # End time ) states = states.at[:, s + 1].set(evolve_states(states[:, s], H, pulse_params, time_window))

# Save the experience for posterior learning actions = actions.at[:, s].set(a) score_functions.append(sf)

# Compute the final reward key, subkey = jax.random.split(key) rewards = compute_rewards(pulse_params, H, target, config, subkey) return states, actions, score_functions, rewards, key

@jax.jit def act(states, params, key): """Act on states with the current policy params.""" keys = jax.random.split(key, states.shape[0] + 1) score_funs, actions = score_function_and_action(params, states, keys[1:]) return score_funs, (actions, keys[0])

@jax.jit @partial(jax.vmap, in_axes=(None, 0, 0)) @partial(jax.grad, argnums=0, has_aux=True) def score_function_and_action(params, state, subkey): """Sample an action and compute the associated score function.""" probs = policy_model.apply(params, state) action = jax.random.choice(subkey, policy_model.out_size, p=probs) return jnp.log(probs[action]), action

Now that we have a way to sample the episodes, we need to process the collected experience to compute the gradient of the expected return $\nabla_{\mathbf{\theta}} \mathbb{E}\left[G\right].$ First, however, we will define two utility functions: one to add a list of pytrees together (helps with the temporal sum), and one to add extra dimensions to arrays to enable broadcasting. These solve a couple of technicalities that will make the following code much more readable.

@jax.jit
def sum_pytrees(pytrees):
    """Sum a list of pytrees."""
    return jax.tree_util.tree_map(lambda *x: sum(x), *pytrees)

@jax.jit def adapt_shape(array, reference): """Adapts the shape of an array to match the reference (either a batched vector or matrix). Example: >>> a = jnp.ones(3) >>> b = jnp.ones((3, 2)) >>> adapt_shape(a, b).shape (3, 1) >>> adapt_shape(a, b) + b Array([[2., 2.], [2., 2.], [2., 2.]], dtype=float32) """ n_dims = len(reference.shape) if n_dims == 2: return array.reshape(-1, 1) return array.reshape(-1, 1, 1)

In order to compute the gradient, we need to compute the sum within the expectation value for every episode. However, we will give this expression a twist and bring our reinforcement learning skills a step further. We will subtract a baseline $b$ to the return such that

$$ \nabla_{\mathbf{\theta}} \mathbb{E}\left[G\right] = \mathbb{E}\left[\sum_{t=0}^{T-1}(G_t - b(s_t))\nabla_{\mathbf{\theta}}\log\pi_{\mathbf{\theta}}(a_t|s_t)\right]. $$

Intuitively, the magnitude of the reward is arbitrary and depends on our function of choice. Hence, it provides the same information if we shift it. For example, our reward based on the average gate fidelity is bound between zero and one, but everything would conceptually be the same if we added one. In a sense, we could consider the original expression to have a baseline of zero, and this new one to be a generalization. Any baseline is valid provided that it does not depend on the action $a_t$ because this ensures it has a null expectation value, leaving the gradient unaffected.

While these baselines leave the expectation value of the gradient unchanged, they do have an impact in its variance. Here, we will implement the optimal state-independent baseline that minimizes the variance of the gradient. The optimal baseline for the $k$-th component of the gradient is:

$$ b_k = \frac{\mathbb{E}\left[G_t\left(\partial_{\theta_k}\log\pi_{\mathbf{\theta}}(a|s)\right)^2\right]}{\mathbb{E}\left[\left(\partial_{\theta_k}\log\pi_{\mathbf{\theta}}(a|s)\right)^2\right]}\,, $$

where $\partial_{\theta_k}\log\pi_{\mathbf{\theta}}(a|s)$ is the $k$-th component of the score function. Thus, this baseline has the same shape as the gradient. You can find a proof in Chapter 6.3.1 in 3. Reducing the variance of our estimates significantly speeds up the training process by providing better gradient updates with less samples.

@jax.jit
def reinforce_gradient_with_baseline(episodes):
    """Estimates the parameter gradient from the episodes with a state-independent baseline."""
    _, _, score_functions, returns = episodes
    ret_episodes = returns.sum()  # Sum of episode returns to normalize the final value
    # b
    baseline = compute_baseline(episodes)
    # G - b
    ret_minus_baseline = jax.tree_util.tree_map(lambda b: adapt_shape(returns, b) - b, baseline)
    # sum((G - b) * sf)
    sf_sum = sum_pytrees(
        [jax.tree_util.tree_map(lambda r, s: r * s, ret_minus_baseline, sf) for sf in score_functions]
    )
    # E[sum((G - b) * sf)]
    return jax.tree_util.tree_map(lambda x: x.sum(0) / ret_episodes, sf_sum)

@jax.jit def compute_baseline(episodes): """Computes the optimal state-independent baseline to minimize the gradient variance.""" _, _, score_functions, returns = episodes n_episodes = returns.shape[0] n_segments = len(score_functions) total_actions = n_episodes * n_segments # Square of the score function: sf**2 sq_sfs = jax.tree_util.tree_map(lambda sf: sf**2, score_functions) # Expected value: E[sf**2] exp_sq_sfs = jax.tree_util.tree_map( lambda sqsf: sqsf.sum(0, keepdims=True) / total_actions, sum_pytrees(sq_sfs) ) # Return times score function squared: G*sf**2 r_sq_sf = sum_pytrees( [jax.tree_util.tree_map(lambda sqsf: adapt_shape(returns, sqsf) * sqsf, sq_sf) for sq_sf in sq_sfs] ) # Expected product: E[G_t*sf**2] exp_r_sq_sf = jax.tree_util.tree_map(lambda rsqsf: rsqsf.sum(0, keepdims=True) / total_actions, r_sq_sf) # Ratio of espectation values: E[G_t*sf**2] / E[sf**2] (avoid dividing by zero) return jax.tree_util.tree_map(lambda ersq, esq: ersq / jnp.where(esq, esq, 1.0), exp_r_sq_sf, exp_sq_sfs)

Finally, we can choose any optimizer that we like to perform the policy parameter updates with the gradient information. We will use the Adam optimizer 4 provided by Optax.

import optax

def get_optimizer(params, learning_rate): """Create and initialize an Adam optimizer for the parameters.""" optimizer = optax.adam(learning_rate) opt_state = optimizer.init(params) return optimizer, opt_state

And we will define our parameter update function to perform the gradient ascent step. These optimizers default to gradient descent, which is the most common in machine learning problems. Hence, we’ll have to subtract the parameter update they provide to go in the opposite direction.

def update_params(params, gradients, optimizer, opt_state):
    """Update model parameters with gradient ascent."""
    updates, opt_state = optimizer.update(gradients, opt_state, params)
    new_params = jax.tree_util.tree_map(lambda p, u: p - u, params, updates)  # Negative update
    return new_params, opt_state

The training

We have all the building blocks that we need to train an $R_X(\pi/2)$ calibrator for our superconducting quantum computer. We just need to ensemble the pieces together and choose the right parameters for the task.

Let’s define the config object that will contain all the hyperparameters of the training process.

from collections import namedtuple

hyperparams = [ "pulse_duration", # Total pulse duration "segment_duration", # Duration of every pulse segment "n_segments", # Number of pulse segments "n_episodes", # Episodes to estimate the gradient "n_epochs", # Training iterations "n_eval_states", # Random states to evaluate the fidelity "n_gate_reps", # Gate repetitions for the evaluation "learning_rate", # Step size of the parameter update ] Config = namedtuple("Config", hyperparams, defaults=[None] * len(hyperparams))

config = Config( pulse_duration=pulse_duration, segment_duration=segment_duration, n_segments=8, n_episodes=200, n_epochs=320, n_eval_states=200, n_gate_reps=2, learning_rate=5e-3, )

Finally, the training loop:

  1. Sample episodes

  2. Compute the gradient

  3. Update the policy parameters

optimizer, opt_state = get_optimizer(policy_params, config.learning_rate)

learning_rewards = [] for epoch in range(config.n_epochs): *episodes, key = play_episodes(policy_params, H, ctrl_values, target, config, key) grads = reinforce_gradient_with_baseline(episodes) policy_params, opt_state = update_params(policy_params, grads, optimizer, opt_state)

learning_rewards.append(episodes[3].mean()) if (epoch % 40 == 0) or (epoch == config.n_epochs - 1): print(f"Iteration {epoch}: reward {learning_rewards[-1]:.4f}")

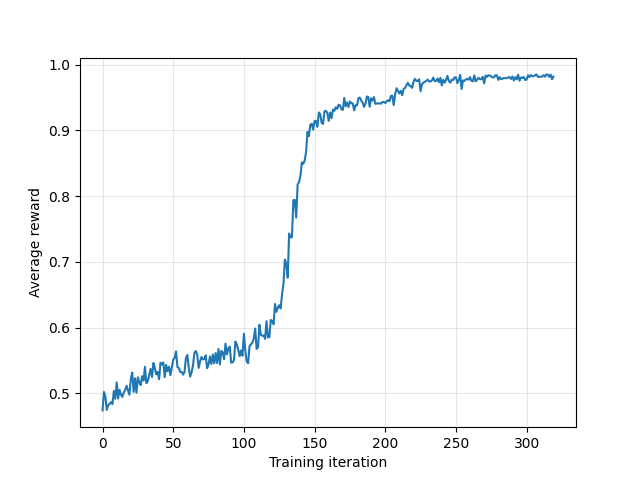

import matplotlib.pyplot as plt

plt.plot(learning_rewards) plt.xlabel("Training iteration") plt.ylabel("Average reward") plt.grid(alpha=0.3)
tutorial rl pulse
Iteration 0: reward 0.4739
Iteration 40: reward 0.5214
Iteration 80: reward 0.5611
Iteration 120: reward 0.6098
Iteration 160: reward 0.9146
Iteration 200: reward 0.9418
Iteration 240: reward 0.9684
Iteration 280: reward 0.9770
Iteration 319: reward 0.9820

The algorithm has converged to a policy with a very high average reward!! Let’s see what this agent is capable of.

Calibrating the qubits

After the training, we have a pulse calibrator for the $R_X(\pi/2)$ gate with a high average gate fidelity. The next step is to actually use it to calibrate the qubits in our device.

Notice that, during the whole training process, the actions of our agent have been stochastic. At every step, the policy provides the probability to choose every action and we sample one accordingly. When we deploy our calibrator, we want it to consistently provide good pulse programs on a single pass through the qubit. Therefore, rather than sampling the actions, we take the one with the highest probability.

Let’s define a function to extract the pulse program from the policy.

def get_pulse_program(policy_params, H, ctrl_values, config):
    """Extract the pulse program from the trained policy."""
    state = jnp.zeros((1, state_size), dtype=complex).at[:, 0].set(1.0)
    pulse_params = jnp.zeros((1, ctrl_values.shape[-1], config.n_segments))
    for s in range(config.n_segments):
        probs = policy_model.apply(policy_params, state)
        action = probs.argmax()
        pulse_params = pulse_params.at[..., s].set(ctrl_values[action])
        time_window = (s * config.segment_duration, (s + 1) * config.segment_duration)
        state = evolve_states(state, H, pulse_params, time_window)
    return pulse_params[0]

We can evaluate the resulting average gate fidelity over several random initial states. Remember that the reward is a combination of the gate fidelity over several gate repetitions, which is a lower bound to the actual gate fidelity.

def evaluate_program(pulse_program, H, target, config, subkey):
    """Compute the average gate fidelity over 1000 random initial states."""
    states = sample_random_states(subkey, 1000, state_size)
    target_states = jnp.einsum("ab,cb->ca", target, states)
    pulse_matrix = qml.matrix(qml.evolve(H)(pulse_program, config.pulse_duration))
    final_states = jnp.einsum("ab,cb->ca", pulse_matrix, states)
    fidelities = qml.math.fidelity_statevector(final_states, target_states)
    return fidelities

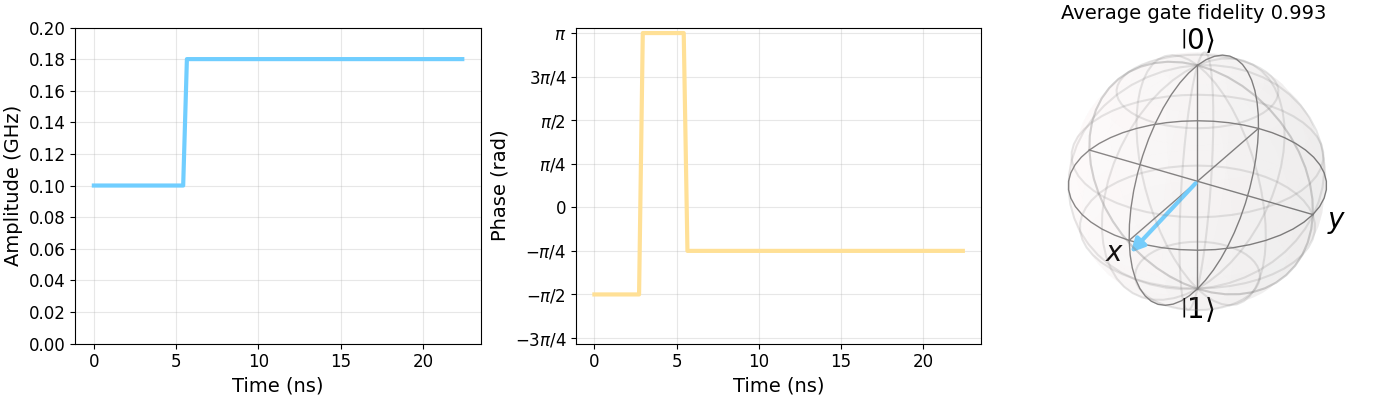

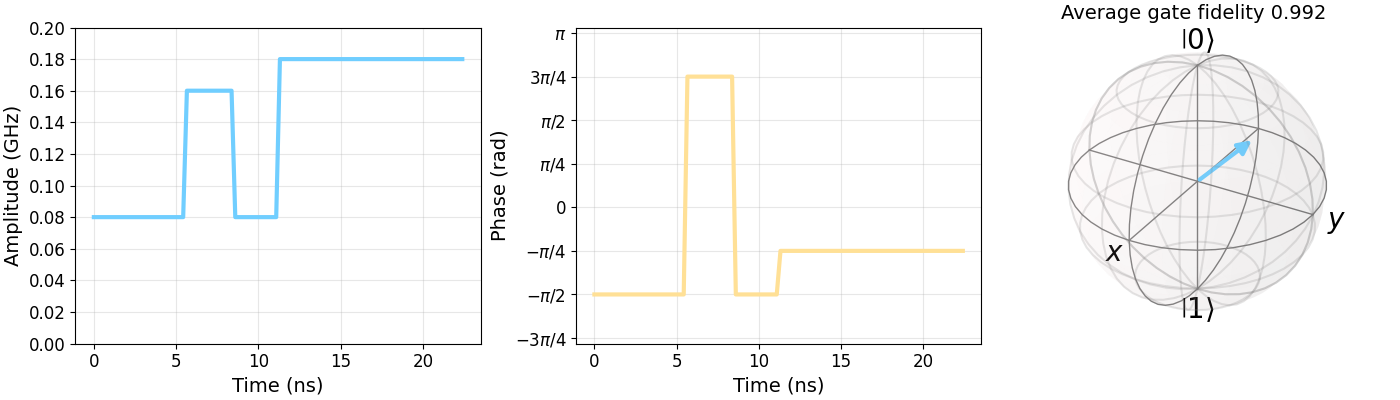

Let’s extract the pulse program for our qubit, the rotation axis of the resulting gate, and the average gate fidelity.

pulse_program = get_pulse_program(policy_params, H, ctrl_values, config)

def vector_to_bloch(vector): """Transform a vector into Bloch sphere coordinates.""" rho = jnp.outer(vector, vector.conj()) X, Y, Z = qml.PauliX(0).matrix(), qml.PauliY(0).matrix(), qml.PauliZ(0).matrix() x, y, z = ( jnp.trace(rho @ X).real.item(), jnp.trace(rho @ Y).real.item(), jnp.trace(rho @ Z).real.item(), ) return [x, y, z]

matrix = get_pulse_matrix(H, pulse_program, config.pulse_duration) _, evecs = jnp.linalg.eigh(matrix) rot_axis = vector_to_bloch(evecs[:, 0])

fidelities = evaluate_program(pulse_program, H, target, config, key) avg_gate_fidelity = fidelities.mean()

We can plot the amplitude and phase over time to get a better idea of what’s going on. Furthermore, we can visualize the rotation axis in the Bloch sphere to see its alignment with the $X$ axis. Despite the training reward being 0.982, the actual average gate fidelity is 0.993, showing how it accumulates the errors to make the agent more sensitive and reach better results.

import qutip

def plot_rotation_axes(rotation_axes, color=["#70CEFF"], fig=None, ax=None): """Plot the rotation axes in the Bloch sphere.""" bloch = qutip.Bloch(fig=fig, axes=ax) bloch.sphere_alpha = 0.05 bloch.vector_color = color bloch.add_vectors(rotation_axes) bloch.render()

ts = jnp.linspace(0, pulse_duration - 1e-3, 100) fig, axs = plt.subplots(ncols=3, figsize=(14, 4), constrained_layout=True)

axs[0].plot(ts, qml.pulse.pwc(pulse_duration)(pulse_program[0], ts), color="#70CEFF", linewidth=3) axs[0].set_ylabel("Amplitude (GHz)", fontsize=14) axs[0].set_yticks(values_ampl) axs[0].set_ylim([values_ampl[0], values_ampl[-1]])

axs[1].plot(ts, qml.pulse.pwc(pulse_duration)(pulse_program[1], ts), color="#FFE096", linewidth=3) axs[1].set_ylabel("Phase (rad)", fontsize=14) axs[1].set_yticks( values_phase, ["$-3\pi/4$", "$-\pi/2$", "$-\pi/4$", "0", "$\pi/4$", "$\pi/2$", "$3\pi/4$", "$\pi$"], ) axs[1].set_ylim([values_phase[0] - 0.1, values_phase[-1] + 0.1])

for ax in axs[:2]: ax.grid(alpha=0.3) ax.tick_params(labelsize=12) ax.set_xlabel("Time (ns)", fontsize=14)

axs[2].axis("off") ax2 = fig.add_subplot(1, 3, 3, projection="3d") plot_rotation_axes(rot_axis, fig=fig, ax=ax2) ax2.set_title(f"Average gate fidelity {avg_gate_fidelity:.3f}", fontsize=14) plt.show()
Average gate fidelity 0.993

Beyond single-qubit quantum computers and gates

All the concepts that we have learned throughout the demo are directly applicable to quantum computers with more qubits, two-qubit gates, and even other platforms beyond superconducting circuits. Perhaps the most straightforward extension of the code presented here would be calibrating an entangling gate, such as a CNOT. We will provide an overview of how to adapt this demo to do it, although they take significantly longer to train (mainly because the pulses need to be much longer).

The first thing we need to build an entangling gate is a second qubit in our device with a different frequency coupled to the first one.

# Quantum computer
qubit_freqs = [4.81, 4.88]  # GHz
connections = [[0, 1]]
couplings = [0.02]
wires = [0, 1]

H_int = qml.pulse.transmon_interaction(qubit_freqs, connections, couplings, wires)

The CNOT gate is typically constituted by a series of single-qubit pulses and cross-resonant (CR) pulses. Every single-qubit pulse is resonant with the qubit it targets, i.e., it has the same frequency, whereas CR pulses are shone on the control qubit at the target’s frequency. This way, the target is indirectly driven through the coupling with the control qubit, which entangles them.

We will make the CR pulse take the first qubit as control and the second as target. We will implement what’s known as an echoed CR pulse, which consists of flipping the state of the control qubit (applying an $X$ gate) in the middle of the CR pulse. The second half of the pulse is the negative of the previous one. This “echoes out” the rapid interactions between the qubits, while preserving the entangling slower interaction that we are interested in, as introduced in 5.

Our full pulse ansatz will consist of sandwiching the echoed CR gate between single qubit pulses. Therefore, we will have a total of six PWC pulses: two single qubit ones, two CR, and two single qubit.

# Microwave pulse
pulse_duration_sq = 22.4  # Single qubit pulse duration
pulse_duration_cr = 100.2  # CR pulse duration

def get_drive(timespan, freq, wire): """Parametrized Hamiltonian driving the qubit in wire with a fixed frequency.""" amplitude = qml.pulse.pwc(timespan) phase = qml.pulse.pwc(timespan) return qml.pulse.transmon_drive(amplitude, phase, freq, wire)

pulse_durations = jnp.array( [ 0, pulse_duration_sq, pulse_duration_sq, pulse_duration_cr, pulse_duration_cr, pulse_duration_sq, pulse_duration_sq, ] ) change_times = jnp.cumsum(pulse_durations) timespans = [(t0.item(), t1.item()) for t0, t1 in zip(change_times[:-1], change_times[1:])]

H_sq_0_ini = get_drive(timespans[0], qubit_freqs[0], wires[0]) H_sq_1_ini = get_drive(timespans[1], qubit_freqs[1], wires[1]) H_cr_pos = get_drive(timespans[2], qubit_freqs[1], wires[0]) # Target qubit 0 with freq from 1 H_cr_neg = get_drive(timespans[3], qubit_freqs[1], wires[0]) H_sq_0_end = get_drive(timespans[4], qubit_freqs[0], wires[0]) H_sq_1_end = get_drive(timespans[5], qubit_freqs[1], wires[1])

Notice that the CR pulses are an order of magnitude longer than the single-qubit ones. This is because the drive on the target qubit is dampened by the coupling constant, thus requiring much longer times to observe a comparable effect compared to driving it directly.

We now have to put everything together in the QNode that will be in charge of the evolution. We need to account for the control qubit flip between CR pulses and revert it at the end, as well as to fix the second CR pulse to be the negative of the previous one. Notice that both CR pulses will share their parameters.

H_sq_ini = H_sq_0_ini + H_sq_1_ini
H_sq_end = H_sq_0_end + H_sq_1_end

@jax.jit @partial(jax.vmap, in_axes=(0, None, 0, None)) @qml.qnode(device=device, interface="jax") def evolve_states(state, params, t): params_sq, params_cr = params qml.StatePrep(state, wires=wires) # Single qubit pulses qml.evolve(H_int + H_sq_ini)(params_sq, t, atol=1e-5)

# Echoed CR qml.evolve(H_int + H_cr_pos)(params_cr, t, atol=1e-5) qml.PauliX(0) # Flip control qubit qml.evolve(H_int - H_cr_neg)(params_cr, t, atol=1e-5) # Negative CR qml.PauliX(0) # Recover control qubit

# Single qubit pulses qml.evolve(H_int + H_sq_end)(params_sq, t, atol=1e-5)

return qml.state()

The state of the environment is now a 2-qubit state for which on the quantum computer we need to perform $\mathcal{O}(4^2)$ measurements for tomography. We would need to decide how many segments we wish to split each pulse into, and define the appropriate time_window within play_episodes. This can be achieved by modifying the config.segment_duration to be an array that contains the time spans of every segment, such that time_window = config.segment_duration[s], or similar. Given that the negative CR pulse uses the same parameters as the positive CR one, we can skip it as an entire segment merged with the last from the positive one that does not involve any intermediate tomography steps.

Finally, when dealing with quantum computers with several qubits, we can opt for two strategies: train specialized calibrators for every qubit (or qubit pair), or train a single general calibrator for all the qubits. In these cases, we need to define a separate drive Hamiltonian for each individual qubit. Training individual specialized agents can be done in parallel following the same principles introduced in this demo, which will make them robust to the various sources of noise. Training a general agent is a bit more involved to adapt. Mainly, every episode controls the evolution of a randomly selected qubit with its own H_drive. This involves modifying play_episodes to sample the selected qubits, and carry their evolution under their respective Hamiltonians. Notice that evolve_states should be parallelized over the Hamiltonian too.

Conclusions

In this demo, we have learned how to design an experimentally-friendly calibrator with reinforcement learning. To do so, we have learned the fundamental principles of reinforcement learning, the REINFORCE algorithm, and how to frame the calibration of quantum computers within this framework. Then, we have put everything together to calibrate a single-qubit gate, and we have learned how to apply the principles explored here to gates involving multiple qubits and larger devices.

The method presented in this demo has several strengths. First of all, it does not require any model or prior information about the quantum computer, making it widely applicable across different quantum computing platforms, even though we have only showed an application on a superconducting quantum computer. Furthermore, once we have invested resources in training the reinforcement learning calibrator, we can use it to recalibrate the qubits multiple times at a very low cost. In 1, the authors report an average gate fidelity of 0.995 on a 2-qubit gate, and 0.993 after 25 days of training!

To continue learning about this topic, try implementing one of the two extensions we explain above. To learn more about reinforcement learning, we recommend 6 for an introduction to the topic, and 3 for an introduction of machine learning for physics (reinforcement learning in chapter 6). To learn more about how superconducting quantum computers work, see 7 for an extensive review, and the related PennyLane documentation.

Finally, check out the related demos for alternative ways to tune pulse programs. In particular, this demo for an optimal control approach to gate calibration, this demo on optimizing pulses using hardware compatible gradients, and this more general intro to differentiable pulse programming.

References

1(1,2,3,4)

Y. Baum, et. al. (2019) “Experimental Deep Reinforcement Learning for Error-Robust Gate-Set Design on a Superconducting Quantum Computer.” PRX Quantum 2(4), 040324.

2

R. J. Williams. (1992) “Simple statistical gradient-following algorithms for connectionist reinforcement learning.” Machine Learning 8, 229–256.

3(1,2)

A. Dawid, et. al. (2022) “Modern applications of machine learning in quantum sciences.” arXiv:2204.04198.

4

D. Kingma and J. Ba. (2014) “Adam: A method for Stochastic Optimization.” arXiv:1412.6980.

5

S. Sheldon, E. Magesan, J. M. Chow and J. M. Gambetta. (2016) “Procedure for systematically tuning up cross-talk in the cross-resonance gate.” Phys. Rev. A, 93(6), 060302.

6

R. S. Sutton and A. G. Barto. (2018) “Reinforcement learning: An introduction.” MIT Press.

7

P. Krantz, M. Kjaergaard, F. Yan, T. P. Orlando, S. Gustavsson and W. D. Oliver. (2019) “A quantum engineer’s guide to superconducting qubits.” Applied physics reviews 6(2).

About the author

Total running time of the script: (2 minutes 22.662 seconds)

Borja Requena

Borja Requena

Borja is a PhD student at ICFO - The Institute of Photonic Sciences, where he develops machine learning algorithms to study physics. He is also a summer resident at Xanadu.

Total running time of the script: (2 minutes 22.662 seconds)
