How to implement VQD with PennyLane

Published: August 26, 2024. Last updated: November 18, 2024.

Finding the eigenvalues of a Hamiltonian is a key task in quantum computing. Algorithms such as the variational quantum eigensolver (VQE) are used to find the smallest eigenvalue, but sometimes we are interested in other eigenvalues. Here we will show you how to implement the variational quantum deflation (VQD) algorithm in PennyLane and find the first excited state energy of the hydrogen molecule. To benefit the most from this tutorial, we recommend a familiarization with the variational quantum eigensolver (VQE) algorithm first.

/_images/OGthumbnail_how_to_vqd_pennylane.png

Variational quantum deflation

The VQD algorithm 1 is a method used to find the excited states of a quantum system. It is related to the VQE algorithm, which is often used to find the ground state energy of a quantum system. The main idea of the VQE algorithm is to define a quantum state ansatz that depends on adjustable parameters $\theta$ and minimize the energy of the system, computed as:

$$ C_0(\theta) = \left\langle\Psi_0 (\theta)|\hat H |\Psi_0 (\theta) \right\rangle, $$

where $\Psi_0(\theta)$ is the ansatz. However, this is not enough if we are interested in states other than the ground state. We must find a function whose minimum is no longer the ground state energy but gives the next excited state. This is possible by just adding a penalty term to the above function, which accounts for the orthogonality of the states:

$$ C_1(\theta) = \left\langle\Psi(\theta)|\hat H |\Psi (\theta) \right\rangle + \beta | \left\langle \Psi (\theta)| \Psi_0 \right\rangle|^2, $$

where $\beta$ is a hyperparameter that controls the penalty term and $| \Psi \rangle$ is the excited state. Note that $\beta$ should be larger than the energy gap between the ground and excited states. This function can now be minimized to give the first excited state energy. Similarly, we could iteratively calculate the $k$-th excited states by adding the corresponding penalty term to the previous $k - 1$ excited state.

As easy as that! Let’s see how we can run this using PennyLane.

Finding the ground state

To implement the VQD algorithm, we first need to know the ground state of our system, and it is a breeze to use the data from PennyLane Datasets to obtain the Hamiltonian and the ground state of the hydrogen molecule:

Note

To improve viewability of this tutorial, we will suppress any ComplexWarning’s which may be raised during optimization. The warnings do not impact the correctness of the results, but make it harder to view outputs.

import pennylane as qml
import numpy as np

import warnings warnings.filterwarnings(action="ignore", category=np.ComplexWarning)

# Load the dataset h2 = qml.data.load("qchem", molname="H2", bondlength=0.742, basis="STO-3G")[0]

# Extract the Hamiltonian H, n_qubits = h2.hamiltonian, len(h2.hamiltonian.wires)

# Obtain the ground state from the operations given by the dataset def generate_ground_state(wires): qml.BasisState(np.array(h2.hf_state), wires=wires)

for op in h2.vqe_gates: # use the gates data from the dataset op = qml.map_wires(op, {op.wires[i]: wires[i] for i in range(len(wires))}) qml.apply(op)

The generate_ground_state function prepares the ground state of the molecule using the data obtained from the dataset. Let’s use it to check the energy of that state:

dev = qml.device("default.qubit")

@qml.qnode(dev) def circuit(): generate_ground_state(range(n_qubits)) return qml.expval(H)

print(f"Ground state energy: {circuit()}")
Ground state energy: -1.136376576275189

We now use the ground state to find the first excited state.

Finding the excited state

To obtain the excited state we must define our ansatz that generates the state $|\Psi(\theta)\rangle.$

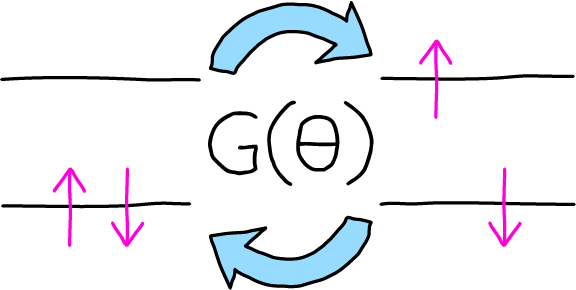

We use an ansatz constructed with Givens rotations, and we define the circuit for finding the excited state.

from functools import partial

# This line is added to better visualise the circuit @partial(qml.transforms.decompose, max_expansion=1)

def ansatz(theta, wires): singles, doubles = qml.qchem.excitations(2, n_qubits) singles = [[wires[i] for i in single] for single in singles] doubles = [[wires[i] for i in double] for double in doubles] qml.AllSinglesDoubles(theta, wires, np.array([1,1,0,0]), singles, doubles)

theta = np.random.rand(3) # 3 parameters for the ansatz print(qml.draw(ansatz, decimals = 2)(theta, range(4)))
0: ─╭|Ψ⟩─╭G²(0.85)─╭G(0.21)──────────┤
1: ─├|Ψ⟩─├G²(0.85)─│────────╭G(0.17)─┤
2: ─├|Ψ⟩─├G²(0.85)─╰G(0.21)─│────────┤
3: ─╰|Ψ⟩─╰G²(0.85)──────────╰G(0.17)─┤

The ansatz function is the one that generates the state $|\Psi(\theta)\rangle.$ The next step is to calculate the overlap between our generated state and the ground state, using a technique known as swap test.

@qml.qnode(dev)
def swap_test(params):
    generate_ground_state(range(1, n_qubits + 1))
    ansatz(params, range(n_qubits + 1, 2 * n_qubits + 1))

qml.Barrier() # added to better visualise the circuit qml.Hadamard(wires=0) for i in range(n_qubits): qml.CSWAP(wires=[0, 1 + i + n_qubits, 1 + i]) qml.Hadamard(wires=0) return qml.expval(qml.Z(0))

print(qml.draw(swap_test)(theta)) print(f"\nOverlap between the ground state and the ansatz: {swap_test(theta)}")
0: ───────────────────────────────────||──H─╭●────╭●────╭●────╭●─────H─┤  <Z>
1: ─╭|Ψ⟩─╭G²(0.27)────────────────────||────├SWAP─│─────│─────│────────┤
2: ─├|Ψ⟩─├G²(0.27)────────────────────||────│─────├SWAP─│─────│────────┤
3: ─├|Ψ⟩─├G²(0.27)────────────────────||────│─────│─────├SWAP─│────────┤
4: ─╰|Ψ⟩─╰G²(0.27)────────────────────||────│─────│─────│─────├SWAP────┤
5: ─╭|Ψ⟩─╭G²(0.85)─╭G(0.21)───────────||────╰SWAP─│─────│─────│────────┤
6: ─├|Ψ⟩─├G²(0.85)─│────────╭G(0.17)──||──────────╰SWAP─│─────│────────┤
7: ─├|Ψ⟩─├G²(0.85)─╰G(0.21)─│─────────||────────────────╰SWAP─│────────┤
8: ─╰|Ψ⟩─╰G²(0.85)──────────╰G(0.17)──||──────────────────────╰SWAP────┤

Overlap between the ground state and the ansatz: 0.892036796461597

The swap_test function returns the overlap between the generated state and the ground state.

With this we have all the ingredients to define the loss function that we want to minimize:

@qml.qnode(dev)
def expected_value(theta):
    ansatz(theta, range(n_qubits))
    return qml.expval(H)

def loss_f(theta, beta): return expected_value(theta) + beta * swap_test(theta)

The loss_f function returns the value of the cost function. The next step is to optimize the parameters of the ansatz to minimize the cost function.

import jax
import optax

jax.config.update("jax_platform_name", "cpu") jax.config.update("jax_enable_x64", True) print()

theta = jax.numpy.array([0.1, 0.2, 0.3]) beta = 2

# Store the values of the cost function energy = [loss_f(theta, beta)]

conv_tol = 1e-6 max_iterations = 100

opt = optax.sgd(learning_rate=0.4)

# Store the values of the circuit parameter angle = [theta]

opt_state = opt.init(theta)

for n in range(max_iterations): gradient = jax.grad(loss_f)(theta, beta) updates, opt_state = opt.update(gradient, opt_state) theta = optax.apply_updates(theta, updates) angle.append(theta) energy.append(loss_f(theta, beta))

conv = jax.numpy.abs(energy[-1] - energy[-2])

if n % 5 == 0: print(f"Step = {n}, Energy = {energy[-1]:.8f} Ha")

if conv <= conv_tol: break

print(f"\nEstimated energy: {energy[-1].real:.8f}")
Step = 0,  Energy = 0.82534245 Ha
Step = 5,  Energy = 0.30049714 Ha
Step = 10,  Energy = -0.47773350 Ha
Step = 15,  Energy = -0.52838146 Ha
Step = 20,  Energy = -0.53275998 Ha
Step = 25,  Energy = -0.53316772 Ha
Step = 30,  Energy = -0.53320553 Ha

Estimated energy: -0.53320790

Great! We have found a new energy value, but is this the right one? One way to check is to access the eigenvalues of the Hamiltonian directly:

print(np.sort(np.linalg.eigvals(H.matrix())))
[-1.13726332+0.j -0.53892489+0.j -0.53892489+0.j -0.53320939+0.j
 -0.53320939+0.j -0.53320939+0.j -0.44757206+0.j -0.44757206+0.j
 -0.17056441+0.j  0.23684975+0.j  0.23684975+0.j  0.35111168+0.j
  0.35111168+0.j  0.47841937+0.j  0.71317537+0.j  0.91879014+0.j]

We have indeed found an eigenvalue of the Hamiltonian. It may seem that we have skipped the value $-0.5389,$ however the eigenvector corresponding to this eigenvalue belongs to a different particle number sector. The correct energy value for the first excited state of hydrogen is $-0.53320939,$ consistent with what we obtained with VQD! We have successfully found the first excited state!

Conclusion

VQD is a variational method that can be used for calculating low-level excited state energies of quantum systems. Leveraging the orthogonality of the eigenstates, it adds a regularization penalty to the cost function to allow the search for the next excited state from the ground state discovered by VQE.

In this tutorial we delved into the capabilities of variational quantum deflation (VQD) using PennyLane to compute the excited states of a hydrogen molecule. This illustrated how advanced quantum algorithms can extend beyond basic applications, offering deeper insights into quantum systems. We invite you to continue exploring these techniques and find more interesting use cases.

References

1

Higgott, Oscar and Wang, Daochen and Brierley, Stephen “Variational Quantum Computation of Excited States” Quantum 3, 156 (2019).
