Fixed depth Hamiltonian simulation via Cartan decomposition

Published: December 19, 2024. Last updated: April 11, 2025.

We introduce the powerful Lie-theoretic decomposition technique for Hamiltonians, $H = K h_0 K^\dagger,$ that lets you perform time-evolution by arbitrary times with fixed depth, $e^{-i t H} = K e^{-i t h_0} K^\dagger.$ In particular, we follow the approach in 1 that directly provides us with a (fixed-depth) circuit decomposition of the unitaries $K$ and $e^{-i t h_0}.$

Sounds too good to be true? There are of course caveats as this fast-forwards the Hamiltonian. In this algebraic setting, the crucial property is the size of the relevant dynamical Lie algebra (DLA). Most systems yield an exponentially large DLA, making them hard to manage in practice (i.e., fast-forwarding is not possible). Yet, this is still an extremely powerful mathematical result integral for quantum compilation, circuit optimization, and Hamiltonian simulation.

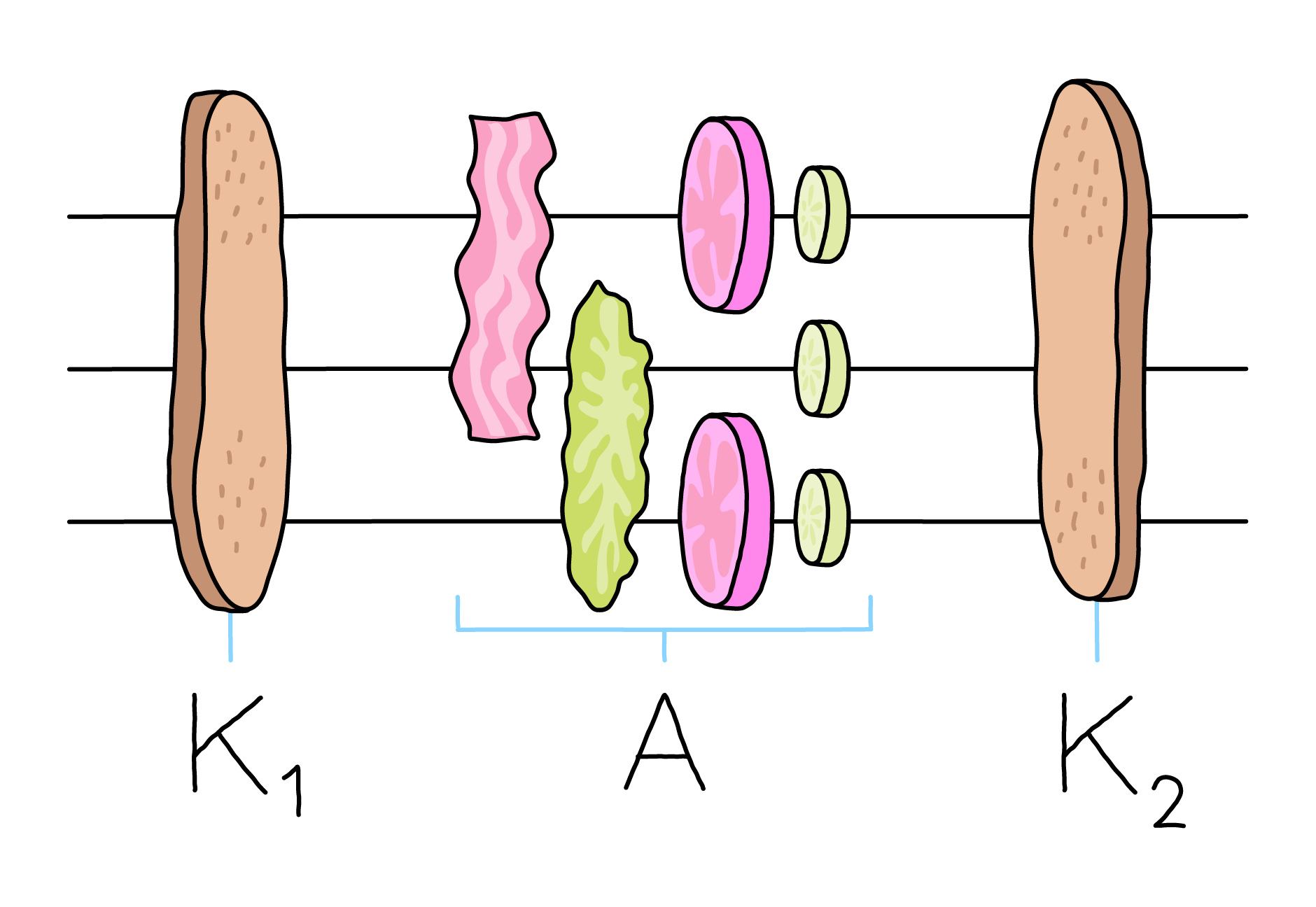

/_images/OGthumbnail_fixed_depth_hamiltonian_simulation_via_cartan_decomposition.png

Introduction

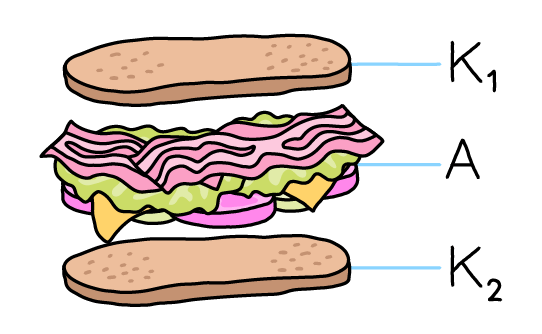

The KAK decomposition is an important result from Lie theory that states that any Lie group element $U$ can be decomposed as $U = K_1 A K_2,$ where $K_{1, 2}$ and $A$ are elements of two special sub-groups $\mathcal{K}$ and $\mathcal{A},$ respectively. In special cases, the decomposition simplifies to $U = K A K^\dagger.$

You can think of this KAK decomposition as a generalization of the singular value decomposition to Lie groups. For that, recall that the singular value decomposition states that any matrix $M \in \mathbb{C}^{m \times n}$ can be decomposed as $M = U \Lambda V^\dagger,$ where $\Lambda$ are the diagonal singular values and $U \in \mathbb{C}^{m \times \mu}$ and $V^\dagger \in \mathbb{C}^{\mu \times n}$ are left- and right-unitary with $\mu = \min(m, n).$

In the case of the KAK decomposition, $\mathcal{A}$ is an Abelian subgroup in which all its elements are commuting, just as is the case for diagonal matrices.

We can use this general result from Lie theory as a powerful circuit decomposition technique.

Note

We recommend a basic understanding of Lie algebras, see e.g. our introduction to (dynamical) Lie algebras for quantum practitioners. Otherwise, this demo should be self-contained, though for the mathematically inclined, we further recommend our demo on the KAK decomposition that dives into the mathematical depths of the decomposition and provides more background info.

Goal: Fast-forwarding time evolutions using the KAK decomposition

Unitary gates in quantum computing are described by the special unitary Lie group $SU(2^n),$ so we can use the KAK decomposition to factorize quantum gates into $U = K_1 A K_2.$ While the mathematical statement is rather straightforward, actually finding this decomposition is not. We are going to follow the recipe prescribed in Fixed Depth Hamiltonian Simulation via Cartan Decomposition 1, which tackles this decomposition on the level of the associated Lie algebra via Cartan decomposition.

In particular, we are going to consider the problem of time-evolving a Hermitian operator $H$ that generates the time-evolution unitary $U = e^{-i t H}.$ We are going to perform a special case of KAK decomposition, a “KhK decomposition” if you will, on the algebraic level in terms of

$$ H = K h_0 K^\dagger. $$

This then induces the KAK decomposition on the group level as

$$ e^{-i t H} = K e^{-i t h_0} K^\dagger. $$

Let us walk through an explicit example, doing theory and code side-by-side.

For that, we are going to use the generators of the Heisenberg model Hamiltonian for $n=4$ qubits on a one-dimensional chain,

$$ \{X_i X_{i+1}, Y_i Y_{i+1}, Z_i Z_{i+1}\}_{i=0}^{2}. $$

The foundation of a KAK decomposition is a Cartan decomposition of the associated Lie algebra $\mathfrak{g}.$ Now, let us first import some libraries that we are going to use later and construct $\mathfrak{g}.$

from datetime import datetime
import matplotlib.pyplot as plt

import numpy as np import pennylane as qml from pennylane import X, Y, Z from pennylane.liealg import even_odd_involution, cartan_decomp, horizontal_cartan_subalgebra

import jax import jax.numpy as jnp import optax jax.config.update("jax_enable_x64", True)

n_wires = 4 gens = [X(i) @ X(i+1) for i in range(n_wires-1)] gens += [Y(i) @ Y(i+1) for i in range(n_wires-1)] gens += [Z(i) @ Z(i+1) for i in range(n_wires-1)]

H = qml.sum(*gens)

g = qml.lie_closure(gens) g = [op.pauli_rep for op in g]

Cartan decomposition

A Cartan decomposition is a bipartition $\mathfrak{g} = \mathfrak{k} \oplus \mathfrak{m}$ into a vertical subspace $\mathfrak{k}$ and an orthogonal horizontal subspace $\mathfrak{m}.$ In practice, it can be induced by an involution function $\Theta$ that fulfills $\Theta(\Theta(g)) = g \ \forall g \in \mathfrak{g}.$ Different involutions lead to different types of Cartan decompositions, which have been fully classified by Cartan (see the classification of symmetric spaces by Cartan).

Notation

Note that $\mathfrak{k}$ is the small letter k in Fraktur and a common — not our — choice for the vertical subspace in a Cartan decomposition.

One common choice of involution is the so-called even-odd involution for Pauli words, $P = P_1 \otimes P_2 .. \otimes P_n,$ where $P_j \in \{I, X, Y, Z\}.$ It essentially counts whether the number of non-identity Pauli operators in the Pauli word is even or odd. It is readily available in PennyLane as even_odd_involution(), which we already imported above.

even_odd_involution(X(0)), even_odd_involution(X(0) @ Y(3))
(True, False)

The vertical and horizontal subspaces are the two eigenspaces of the involution, corresponding to the $\pm 1$ eigenvalues. In particular, we have $\Theta(\mathfrak{k}) = \mathfrak{k}$ and $\Theta(\mathfrak{m}) = - \mathfrak{m}.$ So in order to perform the Cartan decomposition $\mathfrak{g} = \mathfrak{k} \oplus \mathfrak{m},$ we simply sort the operators by whether or not they yield a plus or minus sign from the involution function. This is possible because the operators and involution nicely align with the eigenspace decomposition.

k, m = cartan_decomp(g, even_odd_involution)
len(g), len(k), len(m)
(60, 24, 36)

We have successfully decomposed the 60-dimensional Lie algebra into a 24-dimensional vertical subspace and a 36-dimensional subspace.

Note that not every bipartition of a Lie algebra constitutes a Cartan decomposition. For that, the subspaces need to fulfill the following three commutation relations.

$$ \begin{split}\begin{align} [\mathfrak{k}, \mathfrak{k}] \subseteq \mathfrak{k} & \text{ (subalgebra)}\\ [\mathfrak{k}, \mathfrak{m}] \subseteq \mathfrak{m} & \text{ (reductive property)}\\ [\mathfrak{m}, \mathfrak{m}] \subseteq \mathfrak{k} & \text{ (symmetric property)} \end{align}\end{split} $$

In particular, $\mathfrak{k}$ is closed under commutation and is therefore a subalgebra, whereas $\mathfrak{m}$ is not. This also has the consequence that the associated Lie group $\mathcal{K} := e^{i \mathfrak{k}}$ is a subgroup of the associated Lie group $\mathcal{G} := e^{i \mathfrak{g}}.$

We mentioned earlier that we are aiming to do a special case of KAK decomposition where the second unitary $K_2 = K_1^\dagger.$ This is possible whenever the operator that we want to decompose is in the horizontal subspace $\mathfrak{m}$, i.e. we want $\Theta(H) = -H$. The chosen $H$ and $\Theta$ fulfill this property, as can be easily verified.

for op in H.operands:
    assert not even_odd_involution(op)

Cartan subalgebra

With this we have identified the first subgroup, $\mathcal{K},$ of the KAK decomposition. The other subgroup is induced by the so-called (horizontal) Cartan subalgebra $\mathfrak{h}.$ This is a maximal Abelian subalgebra of $\mathfrak{m}$ and it is not unique. For the case of Pauli words, we can simply pick any element in $\mathfrak{m}$ and collect all other operators in $\mathfrak{m}$ that commute with it.

We then obtain a further split of the vector space $\mathfrak{m} = \tilde{\mathfrak{m}} \oplus \mathfrak{h},$ where $\tilde{\mathfrak{m}}$ is just the remainder of $\mathfrak{m}.$ The function horizontal_cartan_subalgebra() returns some additional information, which we will not use here.

g, k, mtilde, h, _ = horizontal_cartan_subalgebra(k, m, tol=1e-8)
len(g), len(k), len(mtilde), len(h)
(60, 24, 24, 12)

We now have the Cartan decomposition $\mathfrak{g} = \mathfrak{k} \oplus \tilde{\mathfrak{m}} \oplus \mathfrak{h}$ and with that all the necessary ingredients for the KAK decomposition.

Variational KhK decomposition

The KAK decomposition is not constructive in the sense that it proves that there exists such a decomposition, but there is no general way of obtaining it. In particular, there are no linear algebra subroutines implemented in numpy or scipy that just compute it for us. Here, we follow the construction of 1 for the special case of $H$ being in the horizontal space and the decomposition simplifying to $H = K^\dagger h K$.

The authors propose to find a local extremum of the cost function

$$ f(\theta) = \langle K(\theta) v K(\theta)^\dagger, H\rangle $$

where $\langle \cdot, \cdot \rangle$ is some inner product (in our case, the trace inner product $\langle A, B \rangle = \text{tr}(A^\dagger B)).$ This construction uses the operator $v = \sum_j \pi^j h_j \in \mathfrak{h}$ that is such that $e^{i t v}$ is dense in $e^{i \mathcal{h}}.$ The latter means that for any $e^{i \mathcal{h}}$ there is a $t \in \mathbb{R}$ such that $e^{i t v}$ approximates it. Let us construct it. To numerically avoid very large vectors, we take $\pi (\text{mod} 2),$ which preserves the dense property of $v$.

gammas = [np.pi**i % 2 for i in range(1, len(h)+1)]

v = qml.dot(gammas, h) v_m = qml.matrix(v, wire_order=range(n_wires)) v_m = jnp.array(v_m)

This procedure has the advantage that we can use an already decomposed ansatz

$$ K(\theta) = \prod_j e^{-i \theta_j k_j} $$

for the vertical unitary.

Now we just have to define the cost function and find an extremum. In this case, we are going to use gradient descent to minimize the cost function to a minimum. We are going to use jax and optax and write some boilerplate for the optimization procedure.

Note

You can check our demos on parameter optimization in JAX with Optax or JAXOpt.

def run_opt(
    loss,
    theta,
    n_epochs=1000,
    lr=0.05,
):
    """Boilerplate JAX optimization"""
    value_and_grad = jax.jit(jax.value_and_grad(loss))
    optimizer = optax.lbfgs(learning_rate=lr, memory_size=100)
    opt_state = optimizer.init(theta)

energy = [] gradients = [] thetas = []

@jax.jit def step(opt_state, theta): val, grad_circuit = value_and_grad(theta) updates, opt_state = optimizer.update( grad_circuit, opt_state, theta, value=val, grad=grad_circuit, value_fn=loss ) theta = optax.apply_updates(theta, updates)

return opt_state, theta, val

t0 = datetime.now() ## Optimization loop for _ in range(n_epochs): opt_state, theta, val = step(opt_state, theta)

energy.append(val) thetas.append(theta)

t1 = datetime.now() print(f"final loss: {val}; min loss: {np.min(energy)}; after {t1 - t0}")

return thetas, energy, gradients

We can now implement the cost function and find a minimum via gradient descent.

H_m = qml.matrix(H, wire_order=range(n_wires))
H_m = jnp.array(H_m)

def K(theta, k): for th, k_j in zip(theta, k): qml.exp(-1j * th * k_j.operation())

@jax.jit def loss(theta): K_m = qml.matrix(K, wire_order=range(n_wires))(theta, k) A = K_m @ v_m @ K_m.conj().T return jnp.trace(A.conj().T @ H_m).real

theta0 = jax.random.normal(jax.random.PRNGKey(0), shape=(len(k),), dtype=float)

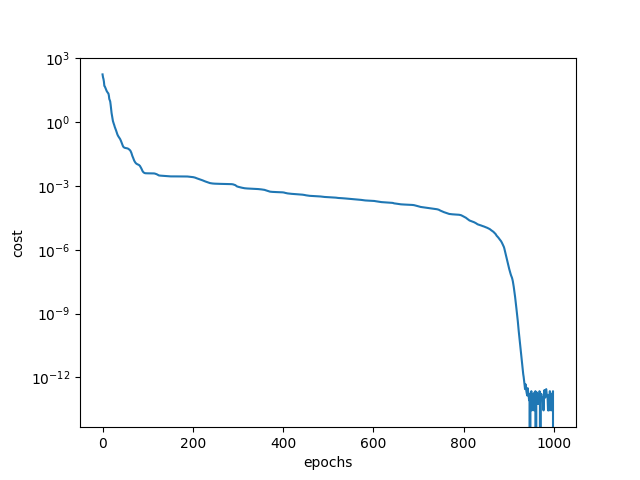

thetas, energy, _ = run_opt(loss, theta0, n_epochs=1000, lr=0.05) plt.plot(energy - np.min(energy)) plt.xlabel("epochs") plt.ylabel("cost") plt.yscale("log") plt.show()
tutorial fixed depth hamiltonian simulation via cartan decomposition
final loss: -155.70929309343808; min loss: -155.70929309343808; after 0:01:19.480630

This gives us the optimal values of the parameters $\theta_\text{opt}$ of $K(\theta_\text{opt}) =: K_c.$

theta_opt = thetas[-1]
Kc_m = qml.matrix(K, wire_order=range(n_wires))(theta_opt, k)

The special element $h_0$ from the Cartan subalgebra $\mathfrak{h}$ is given by rotating the Hamiltonian by the critical $K_c,$

$$ h_0 = K_c^\dagger H K_c. $$
h_0_m = Kc_m.conj().T @ H_m @ Kc_m

# decompose h_0_m in terms of the basis of h basis = [qml.matrix(op, wire_order=range(n_wires)) for op in h] coeffs = qml.pauli.trace_inner_product(h_0_m, basis)

# ensure that decomposition is correct, i.e. h_0_m is truely an element of just h h_0_m_recomposed = np.sum([c * op for c, op in zip(coeffs, basis)], axis=0) print("Decomposition of h_0 is faithful: ", np.allclose(h_0_m_recomposed, h_0_m, atol=1e-10))

# sanity check that the horizontal CSA is Abelian, i.e. all its elements commute print("All elements in h commute with each other: ", qml.liealg.check_abelian(h))
Decomposition of h_0 is faithful:  True
All elements in h commute with each other:  True

The fact that $K_c^\dagger H K_c \in \mathfrak{h}$ is crucial for this decomposition to be valid and meaningful. Otherwise, $h_0$ could be anything and we arrive back at the original problem of decomposing $e^{-i t h_0}$. Here we know that $h_0$ is composed of elements of an Abelian Lie algebra $\mathfrak{h}$, such that we can trivially decompose its unitary as

$$ e^{-i t h_0} = e^{-i t \sum_{j=1}^{|\mathfrak{h}|} c_j h_j} = \prod_{j=1}^{|\mathfrak{h}|} e^{-i t c_j h_j}. $$

Overall, this gives us the KhK decomposition of $H,$

$$ H = K_c h_0 K_c^\dagger. $$

This trivially reproduces the original Hamiltonian.

H_re = Kc_m @ h_0_m @ Kc_m.conj().T
np.allclose(H_re, H_m)
True

We can now check if the Hamiltonian evolution is reproduced correctly.

t = 1.
U_exact = qml.exp(-1j * t * H)
U_exact_m = qml.matrix(U_exact, wire_order=range(n_wires))
h_0  = qml.dot(coeffs, h)

def U_kak(theta_opt, t): qml.adjoint(K)(theta_opt, k) qml.exp(-1j * t * h_0) K(theta_opt, k)

U_kak_m = qml.matrix(U_kak, wire_order=range(n_wires))(theta_opt, t)

def trace_distance(A, B): return 1 - np.abs(np.trace(A.conj().T @ B))/len(A)

trace_distance(U_exact_m, U_kak_m)
8.881784197001252e-16

Indeed we find that the KAK decomposition that we found reproduces the unitary evolution operator. Note that this is valid for arbitrary $t,$ such that the Hamiltonian simulation operator has a fixed depth.

Choice of algebra representation

In the case of Pauli words, we could make use of the well-known commutation relations of Pauli operators and treat the whole calculation semi-analytically (as is done in 1). Here, we have chosen the full $2^n$ Hilbert space representation of the involved operators as this is actually faster for the chosen size $n=4$.

More generally, we can use the adjoint identity introdcued in our g-sim demo and perform all computations in the adjoint representation of the algebra. In that case, the dimension of the algebra is the determining factor. This is useful when a low-dimensional Lie algebra is embedded in a high dimensional Hilbert space. For example, the operators $S^x_\text{total} = \sum_{j=1}^n X_j,$ $S^y_\text{total} = \sum_{j=1}^n Y_j$ and $S^z_\text{total} = \sum_{j=1}^n Z_j$ make up $\mathfrak{su}(2)$ of dimension $3$, but are embedded in a $2^n$-dimensional Hilbert space.

Time evolutions

We compute multiple time evolutions for different times and compare Suzuki–Trotter products with the KAK decomposition circuit.

ts = jnp.linspace(1., 5., 10)

Us_exact = jax.vmap(lambda t: qml.matrix(qml.exp(-1j * t * H), wire_order=range(n_wires)))(ts)

def Us_kak(t): return Kc_m @ jax.scipy.linalg.expm(-1j * t * h_0_m) @ Kc_m.conj().T

Us_kak = jax.vmap(Us_kak)(ts) Us_trotter5 = jax.vmap(lambda t: qml.matrix(qml.TrotterProduct(H, time=-t, n=5, order=4), wire_order=range(n_wires)))(ts) Us_trotter50 = jax.vmap(lambda t: qml.matrix(qml.TrotterProduct(H, time=-t, n=50, order=4), wire_order=range(n_wires)))(ts)

def compute_res(Us): # vectorized trace inner product res = jnp.abs(jnp.einsum("bij,bji->b", Us_exact.conj(), Us)) res /= 2**n_wires return 1 - res

res_kak = compute_res(Us_kak) res_trotter5 = compute_res(Us_trotter5) res_trotter50 = compute_res(Us_trotter50)

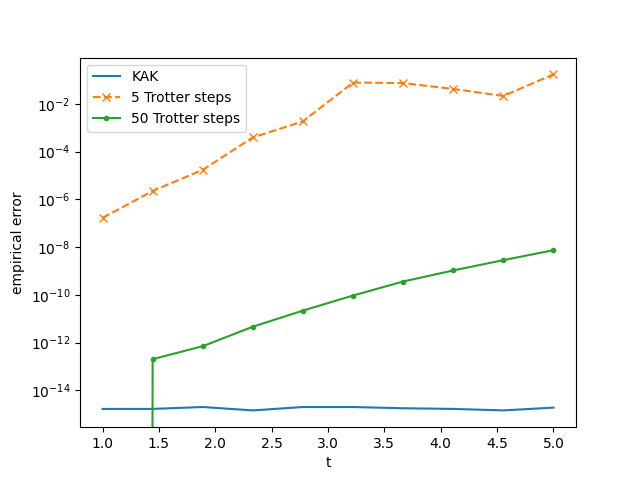

plt.plot(ts, res_kak+1e-15, label="KAK") # displace by machine precision to see it still in plot plt.plot(ts, res_trotter5, "x--", label="5 Trotter steps") plt.plot(ts, res_trotter50, ".-", label="50 Trotter steps") plt.ylabel("empirical error") plt.xlabel("t") plt.yscale("log") plt.legend() plt.show()
tutorial fixed depth hamiltonian simulation via cartan decomposition

We see the expected behavior of Suzuki–Trotter product formulas getting worse with an increase in time while the KAK error is constant zero.

The KAK decomposition is particularly well-suited for smaller systems as the circuit depth is equal to the dimension of the subspaces, in particular $2 |\mathfrak{k}| + |\mathfrak{h}|.$ Note, however, that these dimensions typically scale exponentially in the system size.

Conclusion

The KAK decomposition is a very general mathematical result with far-reaching consequences. While there is no canonical way of obtaining an actual decomposition in practice, we followed the approach of 1 which uses a specifically designed loss function and variational optimization to find the decomposition. This approach has the advantage that the resulting decomposition is itself already decomposed in terms of rotation gates in the original Lie algebra, as opposed to other methods such as 2 that find $K$ as a whole. We provided a flexible pipeline that lets users find KAK decompositions in PennyLane for systems with small DLA (Dynamical Lie Algebras) and specifically decomposed the Heisenberg model Hamiltonian with $n=4$ qubits that has a DLA of dimension $60$ ($\left(\mathfrak{s u}(2^{n-2})\right)^{\oplus 4}$).

As most DLAs scale exponentially in the number of qubits, KAK decompositions are limited to small system sizes or special cases of systems with small DLAs. This is in line with the notion that fast-forwarding is generally not possible and limited to special systems. In particular, a KAK decomposition is ultimately always a fast-forwarding of a Hamiltonian.

References

1(1,2,3,4,5)

Efekan Kökcü, Thomas Steckmann, Yan Wang, J. K. Freericks, Eugene F. Dumitrescu, Alexander F. Kemper “Fixed Depth Hamiltonian Simulation via Cartan Decomposition” arXiv:2104.00728, 2021.

2

Moody T. Chu “Lax dynamics for Cartan decomposition with applications to Hamiltonian simulation” doi:10.1093/imanum/drad018, preprint PDF 2024.
