The KAK decomposition

The KAK decomposition

Published: November 25, 2024. Last updated: March 26, 2025.

The KAK decomposition is a beautiful mathematical result from Lie theory, with particular relevance for quantum computing. It can be seen as a generalization of the singular value decomposition (SVD), as it decomposes a group element $U$ (think: unitary operator) into $U=K_1AK_2,$ where $K_{1,2}$ and $A$ belong to special subgroups that we will introduce. This means the KAK decomposition falls under the large umbrella of matrix factorizations, and it allows us to break down arbitrary quantum circuits into smaller building blocks, i.e., we can use it for quantum circuit decompositions.

In this demo, we will dive into Lie algebras and their groups. Then, we will discuss so-called symmetric spaces, which arise from certain subgroups of those Lie groups. With these tools in our hands, we will then learn about the KAK decomposition itself, breaking up the Lie group into the subgroup and the symmetric space.

We will make all steps explicit on a toy example on paper and in code, which splits single-qubit gates into a well-known sequence of rotations. Finally, we will get to know a handy decomposition of arbitrary two-qubit unitaries into rotation gates as another application of the KAK decomposition.

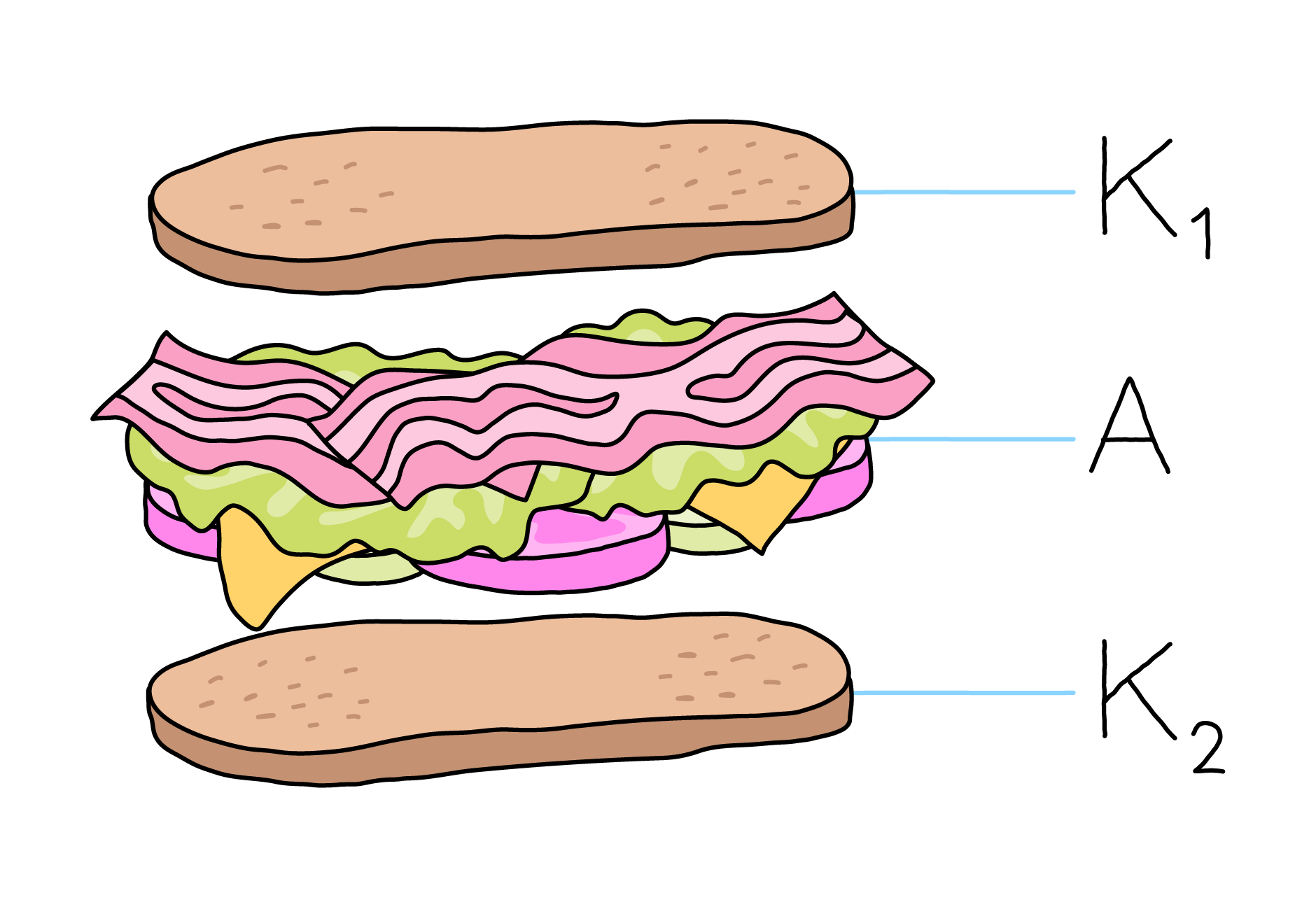

/_images/OGthumbnail_kak_decomposition.png

Along the way, we will put some non-essential mathematical details as well as a few gotchas regarding the nomenclature into boxes such as this one:

Prerequisites

In the following we will assume a basic understanding of vector spaces, linear maps, and Lie algebras. To review those topics, we recommend a look at your favourite linear algebra material. For the latter, also see our introduction to (dynamical) Lie algebras.

Without further ado, let’s get started!

Lie algebras and their groups

We start with Lie algebras, their Lie groups, and a particular interaction between the two, the adjoint action.

Lie algebras

As mentioned above, we will assume a basic understanding of the mathematical objects we will use. To warm up, however, let us briefly talk about Lie algebras (for details see our intro to (dynamical) Lie algebras).

A Lie algebra $\mathfrak{g}$ is a vector space with an additional operation that takes two vectors to a new vector, the Lie bracket. To form an algebra, $\mathfrak{g}$ must be closed under the Lie bracket. For our purposes, the vectors will always be matrices and the Lie bracket will be the matrix commutator.

Example

Our working example in this demo will be the special unitary algebra in two dimensions, $\mathfrak{su}(2).$ It consists of traceless complex-valued skew-Hermitian $2\times 2$ matrices, which we can conveniently describe using the Pauli matrices:

$$ \begin{split}\mathfrak{su}(2) &= \left\{i\left(\begin{array}{cc} a & b-ic \\ b+ic & -a \end{array}\right) {\large |} a, b, c \in \mathbb{R}\right\}\\ &= \left\{i(a Z + b X + c Y)| a, b, c \in \mathbb{R}\right\}.\end{split} $$

We will also look at a more involved example at the end of the demo.

Math detail: our Lie algebras are real

The algebra $\mathfrak{su}(n)$ is a real Lie algebra, i.e., it is a vector space over real numbers, $\mathbb{R}.$ This means that scalar-vector multiplication is only valid between vectors (complex-valued matrices) and real scalars.

There is a simple way to see this. Multiplying a skew-Hermitian matrix $x\in\mathfrak{su}(n)$ by a complex number $c\in\mathbb{C}$ will yield $(cx)^\dagger=\overline{c} x^\dagger=-\overline{c} x,$ so that the result might no longer be skew-Hermitian, i.e. no longer in the algebra! If we keep it to real scalars $c\in\mathbb{R}$ only, we have $\overline{c}=c,$ so that $(cx)^\dagger=-cx$ and we’re fine.

We will only consider real Lie algebras here.

Let us set up $\mathfrak{su}(2)$ in code. Note that the algebra itself consists of skew-Hermitian matrices, but we will work with the Hermitian counterparts as inputs, i.e., we will skip the factor $i.$ We can check that $\mathfrak{su}(2)$ is closed under commutators by computing all nested commutators, the so-called Lie closure, and observing that the closure is not larger than $\mathfrak{su}(2)$ itself. Of course, we could also check the closure manually for this small example.

from itertools import product, combinations
import pennylane as qml
from pennylane import X, Y, Z
import numpy as np

su2 = [X(0), Y(0), Z(0)] print(f"su(2) is {len(su2)}-dimensional")

all_hermitian = all(qml.equal(qml.adjoint(op).simplify(), op) for op in su2) print(f"The operators are all Hermitian: {all_hermitian}")

su2_lie_closed = qml.lie_closure(su2) print(f"The Lie closure of su(2) is {len(su2_lie_closed)}-dimensional.")

traces = [op.pauli_rep.trace() for op in su2] print(f"All operators are traceless: {np.allclose(traces, 0.)}")
su(2) is 3-dimensional
The operators are all Hermitian: True
The Lie closure of su(2) is 3-dimensional.
All operators are traceless: True

We find that $\mathfrak{su}(2)$ is indeed closed, and that it is a 3-dimensional space, as expected from the explicit expression above. We also picked a correct representation with traceless operators.

Math detail: (semi)simple Lie algebras

Our main result for this demo will be the KAK decomposition, which applies to so-called semisimple Lie algebras, which are in turn composed of simple Lie algebras as building blocks. Without going into detail, it often is sufficient to think of these building blocks as (1) special orthogonal algebras $\mathfrak{so}(n),$ (2) unitary symplectic algebras $\mathfrak{sp}(n),$ and (3) special unitary algebras $\mathfrak{su}(n).$ In particular, our example here is of the latter type, so it is not only semisimple, but even simple.

Lie group from a Lie algebra

The topic of Lie groups and Lie algebras is a large field of study and there are many things we could talk about in this section. For the sake of brevity, however, we will only list a few important properties that are needed further below. For more details and proofs, refer to your favourite Lie theory book, which could be 1 or 2.

The Lie group $\mathcal{G}$ associated to a Lie algebra $\mathfrak{g}$ is given by the exponential map applied to the algebra:

$$ \mathcal{G}=\exp(\mathfrak{g}). $$

We will only consider Lie groups $\exp(\mathfrak{g})$ arising from a Lie algebra $\mathfrak{g}$ here. As we usually think about the unitary algebras $\mathfrak{u}$ and their subalgebras, the correspondence is well-known to quantum practitioners: Exponentiate a skew-Hermitian matrix to obtain a unitary operation, i.e., a quantum gate.

Interaction between Lie groups and algebras

We will make use of a particular interaction between the algebra $\mathfrak{g}$ and its group $\mathcal{G},$ called the adjoint action of $\mathcal{G}$ on $\mathfrak{g}.$ It is given by

$$ \text{Ad}: \mathcal{G} \times \mathfrak{g} \to \mathfrak{g}, \ (\exp(x),y)\mapsto \text{Ad}_{\exp(x)}(y) = \exp(x) y\exp(-x). $$

Similarly, we can interpret the Lie bracket as a map of $\mathfrak{g}$ acting on itself, which is called the adjoint representation of $\mathfrak{g}$ on itself:

$$ \text{ad}: \mathfrak{g} \times \mathfrak{g} \to \mathfrak{g}, \ (x, y) \mapsto \text{ad}_x(y) = [x, y]. $$

The adjoint group action and adjoint algebra representation do not only carry a very similar name, they are intimately related:

$$ \text{Ad}_{\exp(x)}(y) = \exp(\text{ad}_x) (y), $$

where we applied the exponential map to $\text{ad}_x,$ which maps from $\mathfrak{g}$ to itself, via its series representation. We will refer to this relationship as the adjoint identity. We talk about $\text{Ad}$ and $\text{ad}$ in more detail in the box below, and refer to our demo g-sim: Lie algebraic classical simulations for further discussion.

Derivation: adjoint representations

We begin this derivation with the adjoint action of $\mathcal{G}$ on itself, given by

$$ \Psi: \mathcal{G} \times \mathcal{G} \to \mathcal{G}, \ (\exp(x),\exp(y))\mapsto \Psi_{\exp(x)}(\exp(y)) = \exp(x) \exp(y)\exp(-x). $$

The map $\Psi_{\exp(x)}$ (with fixed subscript) is a smooth map from the Lie group $\mathcal{G}$ to itself, so that we may differentiate it. This leads to the differential $\text{Ad}_{\exp(x)}=d\Psi_{\exp(x)},$ which maps the tangent spaces of $\mathcal{G}$ to itself. At the identity, where the algebra $\mathfrak{g}$ forms the tangent space, we find

$$ \text{Ad} : \mathcal{G} \times\mathfrak{g} \to \mathfrak{g}, \ (\exp(x), y)\mapsto \exp(x) y \exp(-x). $$

This is the adjoint action of $\mathcal{G}$ on $\mathfrak{g}$ as we introduced above.

Now that we have the adjoint action of $\mathcal{G}$ on $\mathfrak{g},$ we can differentiate it with respect to the subscript argument:

$$ \begin{split}\text{ad}_{\circ}(y)&=d\text{Ad}_\circ(y),\\ \text{ad}: \mathfrak{g}\times \mathfrak{g}&\to\mathfrak{g}, \ (x, y)\mapsto \text{ad}_x(y) = [x, y].\end{split} $$

It is a non-trivial observation that this differential equals the commutator! With $\text{ad}$ we arrived at a map that represents the action of an algebra element $x$ on the vector space that is the algebra itself. That is, we found the adjoint representation of $\mathfrak{g}.$

Finally, note that the adjoint identity can be proven with similar tools as above, i.e., chaining derivatives and exponentiation suitably.

Symmetric spaces

Symmetric spaces are a popular field of study both in physics and mathematics. We will not go into depth regarding their interpretation or classification, but refer the interested reader to the broad existing literature, including 3 and 4. In the following, we mostly care about the algebraic structure of symmetric spaces.

Subalgebras and Cartan decompositions

A subalgebra $\mathfrak{k}$ of a Lie algebra $\mathfrak{g}$ is a vector subspace that is closed under the Lie bracket. Overall, this means that $\mathfrak{k}$ is closed under addition, scalar multiplication, and the Lie bracket. The latter often is simply written as $[\mathfrak{k}, \mathfrak{k}]\subset \mathfrak{k}.$

The algebras we are interested in come with an inner product between its elements. For our purposes, it is sufficient to assume that it is

$$ \langle x, y\rangle = \text{tr}[x^\dagger y]. $$

Let’s implement the inner product and an orthogonality check based on it:

def inner_product(op1, op2):
    """Compute the trace inner product between two operators."""
    # Use two wires to reuse it in the second example on two qubits later on
    return qml.math.trace(qml.matrix(qml.adjoint(op1) @ op2, wire_order=[0, 1]))

def is_orthogonal(op, basis): """Check whether an operator is orthogonal to a space given by some basis.""" return np.allclose([inner_product(op, basis_op) for basis_op in basis], 0)

Given a subalgebra $\mathfrak{k}\subset \mathfrak{g},$ the inner product allows us to define an orthogonal complement

$$ \mathfrak{p} = \{x\in\mathfrak{g} | \langle x, y\rangle=0 \ \forall \ y\in\mathfrak{k}\}. $$

In this context, $\mathfrak{k}$ is commonly called the vertical space, $\mathfrak{p}$ accordingly is the horizontal space. The KAK decomposition will apply to scenarios in which these spaces satisfy additional commutation relations, which do not hold for all subalgebras:

$$ \begin{split}[\mathfrak{k}, \mathfrak{p}] \subset& \mathfrak{p} \qquad \text{(Reductive property)},\\ [\mathfrak{p}, \mathfrak{p}] \subset& \mathfrak{k} \qquad \text{(Symmetric property)}.\end{split} $$

The first property tells us that $\mathfrak{p}$ is left intact by the adjoint action of $\mathfrak{k}.$ The second property suggests that $\mathfrak{p}$ behaves like the opposite of a subalgebra, i.e., all commutators lie in its complement, the subalgebra $\mathfrak{k}.$ Due to the adjoint identity from above, the first property also holds for group elements acting on algebra elements; for all $x\in\mathfrak{p}$ and $K\in\mathcal{K}=\exp(\mathfrak{k}),$ we have

$$ K x K^\dagger = \exp(y) x \exp(-y) = \text{Ad}_{\exp(y)}(x) = \exp(\text{ad}_y) (x) = \sum_{n=0}^\infty \frac{1}{n!} \underset{\in\mathfrak{p}}{\underbrace{(\text{ad}_y)^n (x)}} \in \mathfrak{p}. $$

If the reductive property holds, the quotient space $\mathcal{G}/\mathcal{K}$ of the groups of $\mathfrak{g}$ and $\mathfrak{k}$ (see detail box below) is called a reductive homogeneous space. If both properties hold, $(\mathfrak{k}, \mathfrak{p})$ is called a Cartan pair and we call $\mathfrak{g}=\mathfrak{k} \oplus \mathfrak{p}$ a Cartan decomposition. $(\mathfrak{g}, \mathfrak{k})$ is named a symmetric pair and the quotient $\mathcal{G}/\mathcal{K}$ is a symmetric space. Symmetric spaces are relevant for a wide range of applications in physics and have been studied a lot throughout the last hundred years.

Nomenclature: Cartan decomposition/pair

Depending on context and field, there sometimes is an additional requirement for $\mathfrak{g}=\mathfrak{k}\oplus\mathfrak{p}$ to be called a Cartan decomposition. Without going into detail, this requirement is that the so-called Killing form must be negative definite on $\mathfrak{k}$ and positive definite on $\mathfrak{p}$ 4.

Math detail: quotient space

The quotient space of a Lie group $\mathcal{G}$ and a subgroup $\mathcal{K}$ is the space of cosets of $\mathcal{K},$ i.e., $\mathcal{G}/\mathcal{K} = \{g\mathcal{K} | g\in G\}.$ In this space, two elements are equal if they just differ by multiplying an element from $\mathcal{K}$ from the left to one of them. The quotient space is a manifold like the two groups $\mathcal{G}$ and $\mathcal{K},$ but in general it will not be a group itself. For example, a product of two elements is $(g'\mathcal{K})(g\mathcal{K})=g'g(g^{-1} \mathcal{K} g) \mathcal{K},$ which only is a coset again if $g^{-1} \mathcal{K} g\subset \mathcal{K}.$ Subgroups for which this condition holds for any $g\in \mathcal{G}$ are called normal subgroups. We are interested in cases where the symmetric property $[\mathfrak{p}, \mathfrak{p}] \subset \mathfrak{k}$ holds, which excludes (non-Abelian) normal subgroups, and thus our quotient space $\mathcal{G}/\mathcal{K}$ will not be a group.

Example

For our example, we consider the subalgebra $\mathfrak{k}=\mathfrak{u}(1)$ of $\mathfrak{su}(2)$ that generates Pauli-$Z$ rotations:

$$ \mathfrak{k} = \text{span}_{\mathbb{R}} \{iZ\}. $$

Let us define it in code, and check whether it gives rise to a Cartan decomposition. As we want to look at another example later, we wrap everything in a function. A similar function is available in PennyLane as check_cartan_decomp().

def check_cartan_decomp(g, k, space_name):
    """Given an algebra g and an operator subspace k, verify that k is a subalgebra
    and gives rise to a Cartan decomposition. Similar to qml.liealg.check_cartan_decomp"""
    # Check Lie closure of k
    k_lie_closure = qml.lie_closure(k)
    k_is_closed = len(k_lie_closure) == len(k)
    print(f"The Lie closure of k is as big as k itself: {k_is_closed}.")

# Orthogonal complement of k, assuming that everything is given in the same basis. p = [g_op for g_op in g if is_orthogonal(g_op, k)] print( f"k has dimension {len(k)}, p has dimension {len(p)}, which combine to " f"the dimension {len(g)} of g: {len(k)+len(p)==len(g)}" )

# Check reductive property k_p_commutators = [qml.commutator(k_op, p_op) for k_op, p_op in product(k, p)] k_p_coms_in_p = all([is_orthogonal(com, k) for com in k_p_commutators])

print(f"All commutators in [k, p] are in p (orthogonal to k): {k_p_coms_in_p}.") if k_p_coms_in_p: print(f"{space_name} is a reductive homogeneous space.")

# Check symmetric property p_p_commutators = [qml.commutator(*ops) for ops in combinations(p, r=2)] p_p_coms_in_k = all([is_orthogonal(com, p) for com in p_p_commutators])

print(f"All commutators in [p, p] are in k (orthogonal to p): {p_p_coms_in_k}.") if p_p_coms_in_k: print(f"{space_name} is a symmetric space.")

return p

u1 = [Z(0)] space_name = "SU(2)/U(1)" p = check_cartan_decomp(su2, u1, space_name)
The Lie closure of k is as big as k itself: True.
k has dimension 1, p has dimension 2, which combine to the dimension 3 of g: True
All commutators in [k, p] are in p (orthogonal to k): True.
SU(2)/U(1) is a reductive homogeneous space.
All commutators in [p, p] are in k (orthogonal to p): True.
SU(2)/U(1) is a symmetric space.

Cartan subalgebras

The symmetric property of a Cartan decomposition $([\mathfrak{p}, \mathfrak{p}]\subset\mathfrak{k})$ tells us that $\mathfrak{p}$ is very far from being a subalgebra (commutators never end up in $\mathfrak{p}$ again). This also gives us information about potential subalgebras within $\ \mathfrak{p}.$ Assume we have a subalgebra $\mathfrak{a}\subset\mathfrak{p}.$ Then the commutator between any two elements $x, y\in\mathfrak{a}$ must satisfy

$$ \begin{split}[x, y] \in \mathfrak{a} \subset \mathfrak{p} &\Rightarrow [x, y]\in\mathfrak{p} \text{(subalgebra property)}, \\ [x, y] \in [\mathfrak{a}, \mathfrak{a}] \subset [\mathfrak{p}, \mathfrak{p}] \subset \mathfrak{k} &\Rightarrow [x, y]\in\mathfrak{k}\ \text{(symmetric property)}.\end{split} $$

That is, the commutator must lie in both orthogonal complements $\mathfrak{k}$ and $\mathfrak{p},$ which only have the zero vector in common. This tells us that all commutators in $\mathfrak{a}$ vanish, making it an Abelian subalgebra:

$$ [\mathfrak{a}, \mathfrak{a}] = \{0\}. $$

Such an Abelian subalgebra is a (horizontal) Cartan subalgebra (CSA) if it is maximal, i.e., if it can not be made any larger (higher-dimensional) without leaving $\mathfrak{p}.$

Nomenclature: Cartan subalgebra

Depending on context and field, there are inequivalent notions of Cartan subalgebras. In particular, there is a common notion of Cartan subalgebras which are not contained in a horizontal space. Throughout this demo, we always mean a horizontal maximal Abelian subalgebra $\mathfrak{a}\subset\mathfrak{p}.$ The two notions can be made compatible by being precise about the space of which the subalgebra is a CSA.

How many different CSAs are there? Given a CSA $\mathfrak{a},$ we can pick a vertical element $y\in\mathfrak{k}$ and apply the corresponding group element $K=\exp(y)$ to all elements of the CSA, using the adjoint action we studied above. This will yield a valid CSA again: First, $K\mathfrak{a} K^\dagger$ remains in $\mathfrak{p}$ due to the reductive property, as we discussed when introducing the Cartan decomposition. Second, the adjoint action will not change the Abelian property because

$$ [K x_1 K^\dagger, K x_2 K^\dagger] = K [x_1, x_2] K^\dagger = K 0 K^\dagger = 0 \quad \forall\ x_{1, 2}\in\mathfrak{a}. $$

Finally, we are guaranteed that $K\mathfrak{a} K^\dagger$ remains maximal:

Math detail: CSAs remain maximal

The reason that $K\mathfrak{a} K^\dagger$ is maximal if $\mathfrak{a}$ was, is that we assume $\mathfrak{g}$ to be a semisimple Lie algebra, for which the adjoint representation is faithful. This in turn implies that linearly independent elements of $\mathfrak{g}$ will not be mapped to linearly dependent elements by the adjoint action of $K.$

For most $y\in\mathfrak{k},$ applying $K=\exp(y)$ in this way will yield a different CSA, so that we find a whole continuum of them. It turns out that they all can be found by starting with any $\mathfrak{a}$ and applying all of $\mathcal{K}$ to it.

This is what powers the KAK decomposition.

Example

For our example, we established the decomposition $\mathfrak{su}(2)=\mathfrak{u}(1)\oplus \mathfrak{p}$ with the two-dimensional horizontal space $\mathfrak{p} = \text{span}_{\mathbb{R}}\{iX, iY\}.$ Starting with the subspace $\mathfrak{a}=\text{span}_{\mathbb{R}} \{iY\},$ we see that we immediately reach a maximal Abelian subalgebra (a CSA), because $[Y, X]\neq 0.$ Applying a rotation $\exp(i\eta Z)\in\mathcal{K}$ to this CSA gives us a new CSA via

$$ \mathfrak{a}'=\{\exp(i\eta Z) (c iY) \exp(-i\eta Z) | c\in\mathbb{R}\} =\{c\cos(2\eta) iY + c\sin(2\eta) iX | c\in\mathbb{R}\} . $$

The vertical group element $\exp(i\eta Z)$ simply rotates the CSA within $\mathfrak{p}.$ Let us not forget to define the CSA in code.

# CSA generator: iY
a = p[1]

# Rotate CSA by applying some vertical group element exp(i eta Z) eta = 0.6 # The factor -2 compensates the convention -1/2 in the RZ gate a_prime = qml.RZ(-2 * eta, 0) @ a @ qml.RZ(2 * eta, 0)

# Expectation from our theoretical calculation a_prime_expected = np.cos(2 * eta) * a + np.sin(2 * eta) * p[0] a_primes_equal = np.allclose(qml.matrix(a_prime_expected), qml.matrix(a_prime)) print(f"The rotated CSAs match between numerics and theory: {a_primes_equal}")
The rotated CSAs match between numerics and theory: True

Cartan involutions

In practice, there often is a more convenient way to obtain a Cartan decomposition than by specifying the subalgebra $\mathfrak{k}$ or its horizontal counterpart $\mathfrak{p}$ manually. It goes as follows.

We will look at a map $\theta$ from the total Lie algebra $\mathfrak{g}$ to itself. We demand that $\theta$ has the following properties, for $x, y\in\mathfrak{g}$ and $c\in\mathbb{R}.$

  1. It is linear, i.e., $\theta(x + cy)=\theta(x) +c \theta(y),$

  2. It is compatible with the commutator, i.e., $\theta([x, y])=[\theta(x),\theta(y)],$ and

  3. It is an involution, i.e., $\theta(\theta(x)) = x,$ or $\theta^2=\mathbb{I}_{\mathfrak{g}}.$

In short, we demand that $\theta$ be an involutive automorphism of $\mathfrak{g}.$

As an involution, $\theta$ only can have the eigenvalues $\pm 1,$ with associated eigenspaces $\mathfrak{g}_\pm.$ Let’s see what happens when we compute commutators between elements $x_\pm\in\mathfrak{g}_\pm \Leftrightarrow \theta(x_\pm) = \pm x_\pm:$

$$ \begin{split}&\theta([x_+, x_+]) = [\theta(x_+), \theta(x_+)] = [x_+, x_+] &\ \Rightarrow\ [x_+, x_+]\in\mathfrak{g}_+ ,\\ &\theta([x_+, x_-]) = [\theta(x_+), \theta(x_-)] = -[x_+, x_-] &\ \Rightarrow\ [x_+, x_-]\in\mathfrak{g}_- ,\\ &\theta([x_-, x_-]) = [\theta(x_-), \theta(x_-)] = (-1)^2 [x_-, x_-] &\ \Rightarrow\ [x_-, x_-]\in\mathfrak{g}_+.\end{split} $$

Or, in other words, $[\mathfrak{g}_+, \mathfrak{g}_+] \subset \mathfrak{g}_+,$ $[\mathfrak{g}_+, \mathfrak{g}_-] \subset \mathfrak{g}_-,$ and $[\mathfrak{g}_-, \mathfrak{g}_-] \subset \mathfrak{g}_+.$ So an involution is enough to find us a Cartan decomposition, with $\mathfrak{k}=\mathfrak{g}_+$ and $\mathfrak{p}=\mathfrak{g}_-.$

🤯

We might want to call such a $\theta$ a Cartan involution.

Nomenclature: Cartan involution

Some people do so, some people again require more properties for such an involution to be called Cartan involution. For our purposes, let’s go with the more general definition and call all involutions with the properties above Cartan involutions.

Conversely, if we have a Cartan decomposition based on a subalgebra $\mathfrak{k},$ we can define the map

$$ \theta_{\mathfrak{k}}(x) = \Pi_{\mathfrak{k}}(x)-\Pi_{\mathfrak{p}}(x), $$

where $\Pi_{\mathfrak{k},\mathfrak{p}}$ are the projectors onto the two vector subspaces. Clearly, $\theta_{\mathfrak{k}}$ is linear because projectors are. It is also compatible with the commutator due to the commutation relations between $\mathfrak{k}$ and $\mathfrak{p}$ (see box below). Finally, $\theta_{\mathfrak{k}}$ is an involution because

$$ \theta_{\mathfrak{k}}^2=(\Pi_{\mathfrak{k}}-\Pi_{\mathfrak{p}})^2 = \Pi_{\mathfrak{k}}^2-\Pi_{\mathfrak{k}}\Pi_{\mathfrak{p}} -\Pi_{\mathfrak{p}}\Pi_{\mathfrak{k}}+\Pi_{\mathfrak{p}}^2 =\Pi_{\mathfrak{k}}+\Pi_{\mathfrak{p}} = \mathbb{I}_{\mathfrak{g}}, $$

where we used the projectors’ property $\Pi_{\mathfrak{k}}^2=\Pi_{\mathfrak{k}}$ and $\Pi_{\mathfrak{p}}^2=\Pi_{\mathfrak{p}},$ as well as the fact that $\Pi_{\mathfrak{k}}\Pi_{\mathfrak{p}}=\Pi_{\mathfrak{p}}\Pi_{\mathfrak{k}}=0$ because the spaces $\mathfrak{k}$ and $\mathfrak{p}$ are orthogonal to each other.

Math detail: $\theta_{\mathfrak{k}}$ is a homomorphism

To see that $\theta_{\mathfrak{k}}$ is compatible with the commutator, i.e., an algebra homomorphism, see how a commutator $[x, y]$ splits:

$$ \begin{split}[x, y] &= [\Pi_{\mathfrak{k}}(x) + \Pi_{\mathfrak{p}}(x), \Pi_{\mathfrak{k}}(y) + \Pi_{\mathfrak{p}}(y)] \\ &= \underset{\in \mathfrak{k}}{\underbrace{[\Pi_{\mathfrak{k}}(x), \Pi_{\mathfrak{k}}(y)]}} +\underset{\in \mathfrak{p}}{\underbrace{[\Pi_{\mathfrak{k}}(x), \Pi_{\mathfrak{p}}(y)]}} +\underset{\in \mathfrak{p}}{\underbrace{[\Pi_{\mathfrak{p}}(x), \Pi_{\mathfrak{k}}(y)]}} +\underset{\in \mathfrak{k}}{\underbrace{[\Pi_{\mathfrak{p}}(x), \Pi_{\mathfrak{p}}(y)]}},\end{split} $$

where we used $\mathbb{I}_{\mathfrak{g}} = \Pi_{\mathfrak{k}} + \Pi_{\mathfrak{p}}$ and the commutation relations between $\mathfrak{k}$ and $\mathfrak{p}.$ We can use this split to compute

$$ \begin{split}\theta_{\mathfrak{k}} ([x, y]) &=\Pi_{\mathfrak{k}}([x, y]) - \Pi_{\mathfrak{p}}([x, y])\\ &=[\Pi_{\mathfrak{k}}(x), \Pi_{\mathfrak{k}}(y)] + [\Pi_{\mathfrak{p}}(x), \Pi_{\mathfrak{p}}(y)] - [\Pi_{\mathfrak{k}}(x), \Pi_{\mathfrak{p}}(y)] - [\Pi_{\mathfrak{p}}(x), \Pi_{\mathfrak{k}}(y)]\\ &=[\Pi_{\mathfrak{k}}(x) -\Pi_{\mathfrak{p}}(x), \Pi_{\mathfrak{k}}(y)-\Pi_{\mathfrak{p}}(y)]\\ &=[\theta_{\mathfrak{k}} (x),\theta_{\mathfrak{k}} (y)].\end{split} $$

Thus, $\theta_{\mathfrak{k}}$ indeed is compatible with the commutator.

This shows us that we can easily switch between a Cartan involution and a Cartan decomposition, in either direction!

Example

In our example, an involution that reproduces our choice $\mathfrak{k}=\text{span}_{\mathbb{R}} \{iZ\}$ is $\theta_Z(x) = Z x Z$ (convince yourself that it is an involution that respects commutators, or verify that it matches $\theta_{\mathfrak{k}}$ from above).

def theta_Z(x):
    return qml.simplify(Z(0) @ x @ Z(0))

theta_of_u1 = [theta_Z(x) for x in u1] u1_is_su2_plus = all(qml.equal(x, theta_of_x) for x, theta_of_x in zip(u1, theta_of_u1)) print(f"U(1) is the +1 eigenspace: {u1_is_su2_plus}")

theta_of_p = [theta_Z(x) for x in p] p_is_su2_minus = all(qml.equal(-x, theta_of_x) for x, theta_of_x in zip(p, theta_of_p)) print(f"p is the -1 eigenspace: {p_is_su2_minus}")
U(1) is the +1 eigenspace: True
p is the -1 eigenspace: True

We can easily get a new subalgebra by modifying the involution, say, to $\theta_Y(x) = Y x Y,$ expecting that $\mathfrak{k}_Y=\text{span}_{\mathbb{R}} \{iY\}$ becomes the new subalgebra.

def theta_Y(x):
    return qml.simplify(Y(0) @ x @ Y(0))

eigvals = [] for x in su2: if qml.equal(theta_Y(x), x): eigvals.append(1) elif qml.equal(theta_Y(x), -x): eigvals.append(-1) else: raise ValueError("Operator not purely in either eigenspace.")

print(f"Under theta_Y, the operators\n{su2}\nhave the eigenvalues\n{eigvals}")
Under theta_Y, the operators
[X(0), Y(0), Z(0)]
have the eigenvalues
[-1, 1, -1]

This worked! A new involution gave us a new subalgebra and Cartan decomposition.

Math detail: classification of Cartan decompositions

You might already see that the two different decompositions created by $\theta_Z$ and $\theta_Y$ are very similar. There is a whole field of study that characterizes—and even fully classifies—the possible Cartan decompositions of semisimple Lie algebras. This classification plays a big role when talking about decompositions without getting stuck on details like the choice of basis or the representation of the algebra as matrices. For example, there are only three types of Cartan decompositions of the special unitary algebra $\mathfrak{su}(n),$ called AI, AII, and AIII. The subalgebras $\mathfrak{k}$ for these decompositions are the special orthogonal algebra $\mathfrak{so}(n)$ (AI), the unitary symplectic algebra $\mathfrak{sp}(n)$ (AII), and a sum of (special) unitary algebras $\mathfrak{su}(p)\oplus\mathfrak{su}(q)\oplus\mathfrak{u}(1)$ (AIII, $p+q=n$). For a quick overview, see for example the Wikipedia entry on symmetric spaces. Their involutions are usually represented by complex conjugation (AI), by the adjoint action with a Pauli operator (AIII, for qubits, $p=q=2^{N-1}$), or by both (AII). It is instructive to try and see why those three are not equivalent under a unitary basis change!

The KAK decomposition

Now that we covered all prerequisites, we are ready for our main result. It consists of two steps that are good to know individually, so we will look at both of them in sequence. We will not conduct formal proofs but leave those to the literature references. In the following, let $\mathfrak{g}$ be a compact real semisimple Lie algebra and $\mathfrak{k}$ a subalgebra such that $\mathfrak{g}=\mathfrak{k}\oplus \mathfrak{p}$ is a Cartan decomposition.

The first step is a decomposition of the Lie group $\mathcal{G}=\exp(\mathfrak{g})$ into the Lie subgroup $\mathcal{K}=\exp(\mathfrak{k})$ and the exponential of the horizontal space, $\mathcal{P}=\exp(\mathfrak{p}),$ which is not a group (see box on quotient spaces). The decomposition is a simple product within $\mathcal{G}:$

$$ \begin{split}\mathcal{G} &= \mathcal{K}\mathcal{P}, \text{ or }\\ \forall\ G\in\mathcal{G}\ \ \exists K\in\mathcal{K}, x\in\mathfrak{p}: \ G &= K \exp(x).\end{split} $$

This KP decomposition can be seen as the group version of $\mathfrak{g} = \mathfrak{k} \oplus\mathfrak{p}$ and is known as a global Cartan decomposition of $\mathcal{G}.$

The second step is the further decomposition of the space $\mathcal{P}=\exp(\mathfrak{p}).$ For this we first need to fix a Cartan subalgebra (CSA) $\mathfrak{a}\subset\mathfrak{p}.$ The CSA might be given through some application or from context, but there is no canonical choice. Given a horizontal vector $x\in\mathfrak{p},$ we can always construct a second CSA $\mathfrak{a}_x\subset\mathfrak{p}$ that contains $x.$ As any two CSAs can be mapped to each other by some subalgebra element $y\in\mathfrak{k}$ using the adjoint action $\text{Ad},$ we know that a $y$ exists such that

$$ \exp(y)\mathfrak{a}_x\exp(-y)=\mathfrak{a} \quad\Rightarrow\quad x\in(\exp(-y) \mathfrak{a}\exp(y). $$

Generalizing this statement across all horizontal elements $x\in\mathfrak{p},$ we find

$$ \mathfrak{p} \subset \{\exp(-y) \mathfrak{a} \exp(y) | y\in\mathfrak{k}\}. $$

As we discussed, the converse inclusion also must hold for a reductive space, so that we may even replace $\subset$ by an equality. Now we can use $\exp(\text{Ad}_{K} x)=\text{Ad}_{K}\exp(x)$ to move this statement to the group level,

$$ \mathcal{P} =\exp(\mathfrak{p}) = \{\exp(\exp(-y) \mathfrak{a} \exp(y)) | y\in\mathfrak{k}\} = \{\exp(K^{-1} \mathfrak{a} K) | K\in\mathcal{K}\} = \{K^{-1} \mathcal{A} K | K\in\mathcal{K}\}, $$

where we abbreviated $\mathcal{A} = \exp(\mathfrak{a}).$

Chaining the two steps together and combining the left factor $K^{-1}$ with the group $\mathcal{K}$ in the KP decomposition, we obtain the KAK decomposition

$$ \mathcal{G} =\mathcal{K}\mathcal{P} = \mathcal{K}\{K^{-1} \mathcal{A} K | K\in\mathcal{K}\}, = \{K_1 \mathcal{A} K_2 | K_{1,2}\in\mathcal{K}\}, = \mathcal{K} \mathcal{A} \mathcal{K} \qquad\textbf{(KAK Decomposition).} $$

It teaches us that any group element can be decomposed into two factors from the Lie subgroup and the exponential of a CSA element, i.e., of commuting elements from the horizontal subspace $\mathfrak{p}.$ This may already hint at the usefulness of the KAK decomposition for matrix factorizations in general, and for quantum circuit decompositions in particular. Given a group operation $G=\exp(x)$ with $x\in\mathfrak{g},$ there are two subalgebra elements $y_{1,2}\in\mathfrak{k}$ (or subgroup elements $K_{1,2}=\exp(y_{1,2})\in \mathcal{K}$) and a Cartan subgalgebra element $a\in\mathfrak{a}$ so that

$$ G\in\mathcal{G} \quad\Rightarrow\quad G=K_1 \exp(a) K_2. $$

If $x$ happens to be from the horizontal subspace $\mathfrak{p},$ so that $G\in \mathcal{P}\subset\mathcal{G},$ we know that the two subgroup elements $K_1$ and $K_2$ will in fact be related, namely

$$ G\in\mathcal{P} \quad\Rightarrow\quad G=K\exp(a)K^\dagger. $$

Example

Applying what we just learned to our example on $\mathfrak{su}(2),$ we can state that any single-qubit gate can be implemented by running a gate from $\mathcal{K}=\{\exp(i\eta Z) | \eta\in\mathbb{R}\},$ a CSA gate $\mathcal{A}=\{\exp(i\varphi Y) | \eta\in\mathbb{R}\},$ and another gate from $\mathcal{K}.$ We rediscovered a standard decomposition of an arbitrary $SU(2)$ gate! PennyLane produces it with one_qubit_decomposition():

x = 0.2j * su2[0] - 0.1j * su2[1] - 0.2j * su2[2]
G = qml.math.linalg.expm(qml.matrix(x))
print(qml.ops.one_qubit_decomposition(G, 0, rotations="ZYZ"))
[RZ(11.662595005666786, wires=[0]), RY(0.44417792154986363, wires=[0]), RZ(1.310521826895794, wires=[0])]

If we pick a horizontal gate, i.e., a gate $G\in\mathcal{P}$, we obtain the same rotation angle for the initial and final $R_Z$ rotations, up to the expected sign, and a shift by some multiple of $2\pi.$

horizontal_x = -0.1j * p[0] - 4.1j * p[1]
print(horizontal_x)
P = qml.math.linalg.expm(qml.matrix(horizontal_x))
decomp = qml.ops.one_qubit_decomposition(P, 0, rotations="ZYZ")
print(decomp)
angle_match = np.isclose((decomp[0].data[0] + decomp[-1].data[0]) % (2 * np.pi), 0.0)
print(f"First and last rotation angle match up to sign and shift by 2kπ: {angle_match}")
(-0-0.1j) * X(0) + (-0-4.1j) * Y(0)
[RZ(6.307570716352305, wires=[0]), RY(1.9192533545843649, wires=[0]), RZ(12.541985205186453, wires=[0])]
First and last rotation angle match up to sign and shift by 2kπ: True

Other choices for involutions or—equivalently—subalgebras $\mathfrak{k}$ will lead to other decompositions of Rot. For example, using $\theta_Y$ from above together with the CSA $\mathfrak{a}_Y=\text{span}_{\mathbb{R}} \{iX\},$ we find the decomposition

$$ \text{Rot}(\phi, \theta, \omega) = R_Y(\eta_1) R_X(\vartheta) R_Y(\eta_2). $$

And that’s it for our main discussion. We conclude this demo by applying the KAK decomposition to the group of arbitrary two-qubit gates.

Application: Two-qubit gate decomposition

Two-qubit operations are described by the special unitary group $SU(4)$ and here we will use a decomposition of its algebra $\mathfrak{su}(4)$ to decompose such gates. Specifically, we use the subalgebra that generates single-qubit operations independently on either qubit, $\mathfrak{su}(2)\oplus\mathfrak{su}(2).$ Let’s set it up with our tool from earlier:

# Define su(4). Skip first entry of Pauli group, which is the identity
su4 = list(qml.pauli.pauli_group(2))[1:]
print(f"su(4) is {len(su4)}-dimensional")

# Define subalgebra su(2) ⊕ su(2) su2_su2 = [X(0), Y(0), Z(0), X(1), Y(1), Z(1)] space_name = "SU(4)/(SU(2)xSU(2))" p = check_cartan_decomp(su4, su2_su2, space_name)
su(4) is 15-dimensional
The Lie closure of k is as big as k itself: True.
k has dimension 6, p has dimension 9, which combine to the dimension 15 of g: True
All commutators in [k, p] are in p (orthogonal to k): True.
SU(4)/(SU(2)xSU(2)) is a reductive homogeneous space.
All commutators in [p, p] are in k (orthogonal to p): True.
SU(4)/(SU(2)xSU(2)) is a symmetric space.

Math detail: involution for two-qubit decomposition

The accompanying involution sorts operators by the number of qubits on which they are supported ($\mathfrak{k}$ is supported on one, $\mathfrak{p}$ on two). This can be realized with the operation

$$ \theta(x) = -Y_0Y_1 x^T Y_0Y_1. $$

Intuitively, the conjugation by $Y_0Y_1$ adds a minus sign for each $X$ and $Z$ factor in $x,$ and the transposition adds a minus sign for each $Y.$ Taken together, each Pauli operator contributes a minus sign. Finally, as we want the single-qubit operators to receive no sign in total ($\mathfrak{k}$ is the $+1$ eigenspace), we add a minus sign overall.

Now we can pick a Cartan subalgebra within $\mathfrak{p},$ the vector space of all two-qubit Paulis. A common choice is

$$ \mathfrak{a} = \text{span}_{\mathbb{R}}\{iX_0X_1, iY_0Y_1, iZ_0Z_1\}. $$

These three operators commute, making $\mathfrak{a}$ Abelian. They also form a maximal Abelian algebra within $\mathfrak{p},$ which is less obvious.

The KAK decomposition now tells us that any two-qubit gate $U,$ being part of $SU(4),$ can be implemented by a sequence

$$ \begin{split}U &= \exp(y_1) \exp(a)\exp(y_2)\\ &= \exp(i[\varphi^x_0 X_0 + \varphi^y_0 Y_0 + \varphi^z_0 Z_0]) \exp(i[\varphi^x_1 X_1 + \varphi^y_1 Y_1 + \varphi^z_1 Z_1])\\ &\times \exp(i [\eta^x X_0X_1 + \eta^y Y_0Y_1 + \eta^z Z_0Z_1])\\ &\times \exp(i[\vartheta^x_0 X_0 + \vartheta^y_0 Y_0 + \vartheta^z_0 Z_0]) \exp(i[\vartheta^x_1 X_1 + \vartheta^y_1 Y_1 + \vartheta^z_1 Z_1]).\end{split} $$

Here we decomposed the exponentials of the vertical elements $y_{1,2}$ further by splitting them into exponentials acting on the first and second qubit, respectively.

The three parameters $\eta^{x, y, z}$ sometimes are called the Cartan coordinates of $U,$ and they can be used, e.g., to assess the smallest-possible duration to implement the gate in hardware.

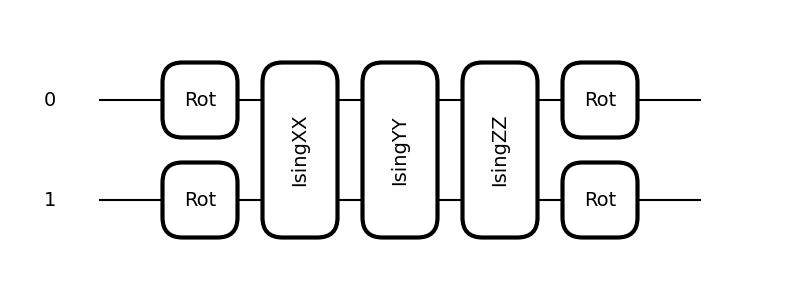

With this result, we can implement a template that can create any two-qubit gate. We’ll use Rot for the single-qubit exponentials (which changes the meaning of the angles, but maintains the coverage) and are allowed to split the Cartan subalgebra term $\exp(a)$ into three exponentials, as its terms commute.

def su4_gate(params):
    phi0, phi1, eta, theta0, theta1 = np.split(params, range(3, 15, 3))
    qml.Rot(*phi0, wires=0)
    qml.Rot(*phi1, wires=1)
    qml.IsingXX(eta[0], wires=[0, 1])
    qml.IsingYY(eta[1], wires=[0, 1])
    qml.IsingZZ(eta[2], wires=[0, 1])
    qml.Rot(*theta0, wires=0)
    qml.Rot(*theta1, wires=1)

params = np.random.random(15) fig, ax = qml.draw_mpl(su4_gate, wire_order=[0, 1])(params)
tutorial kak decomposition

And that’s a wrap on our application of the KAK decomposition for two-qubit gates!

You may have noticed that this mathematical result only states the existence of a decomposition, but does not provide a constructive way of finding $y_{1,2}$ and $a$ for a given gate $U.$ For this, some additional work is required, as explained in 7, for example.

Conclusion

In this demo we learned about the KAK decomposition and how it breaks up a Lie group using the Cartan decomposition of its Lie algebra. This allows us to break down arbitrary quantum gates from that group, as we implemented in code for the groups of single-qubit and two-qubit gates, $SU(2)$ and $SU(4).$

If you are interested in other applications of Lie theory in the field of quantum computing, you are in luck! It has been a handy tool throughout the last decades, e.g., for the simulation of quantum circuits 6 5 and their compression 8 9, in quantum optimal control 10, and for trainability analyses 11 12. For Lie algebraic classical simulation of quantum circuits, also take a look at the g-sim and (g+P)-sim demos.

References

1

Brian C. Hall “Lie Groups, Lie Algebras, and Representations. An Elementary Introduction” Graduate Texts in Mathematics, Springer, 2015.

2

Loring W. Tu “An Introduction to Manifolds” Universitext, Springer, 2011.

3

Andreas Arvanitogeorgos “An Introduction to Lie Groups and the Geometry of Homogeneous Spaces” Student Mathematical Library **22**, 2003

4(1,2)

Sigurdur Helgason “Differential geometry, Lie groups, and symmetric spaces” Graduate Studies in Mathematics **34**, 2001

5

Matthew L. Goh, Martin Larocca, Lukasz Cincio, M. Cerezo, Frédéric Sauvage “Lie-algebraic classical simulations for variational quantum computing” arXiv:2308.01432, 2023.

6

Rolando D. Somma “Quantum Computation, Complexity, and Many-Body Physics” arXiv:quant-ph/0512209, 2005.

7

Efekan Kökcü, Thomas Steckmann, Yan Wang, J. K. Freericks, Eugene F. Dumitrescu, Alexander F. Kemper “Fixed Depth Hamiltonian Simulation via Cartan Decomposition” arXiv:2104.00728, 2021. PRL (closed access), 2022.

8

Efekan Kökcü, Daan Camps, Lindsay Bassman, James K. Freericks, Wibe A. de Jong, Roel Van Beeumen, Alexander F. Kemper “Algebraic Compression of Quantum Circuits for Hamiltonian Evolution” arXiv:2108.03282, 2021. PRA (closed access), 2022.

9

Shouzhen Gu, Rolando D. Somma, Burak Şahinoğlu “Fast-forwarding quantum evolution” Quantum **5**, 2021.

10

G. Dirr, U. Helmke “Lie Theory for Quantum Control” GAMM-Mitteilungen **31**, 2008.

11

Enrico Fontana, Dylan Herman, Shouvanik Chakrabarti, Niraj Kumar, Romina Yalovetzky, Jamie Heredge, Shree Hari Sureshbabu, Marco Pistoia “The Adjoint Is All You Need: Characterizing Barren Plateaus in Quantum Ansätze” Nat. Commun. **15**, 2024.

12

Michael Ragone, Bojko N. Bakalov, Frédéric Sauvage, Alexander F. Kemper, Carlos Ortiz Marrero, Martin Larocca, M. Cerezo “A Unified Theory of Barren Plateaus for Deep Parametrized Quantum Circuits” Nat. Commun. **15**, 2024.

About the author

Total running time of the script: (0 minutes 0.309 seconds)

David Wierichs

David Wierichs

I like to think about differentiation and representations of quantum programs, and I enjoy coding up research ideas and useful features for anyone to use in PennyLane.
