Quantum just-in-time compiling Shor’s algorithm with Catalyst¶

Classical compilation¶

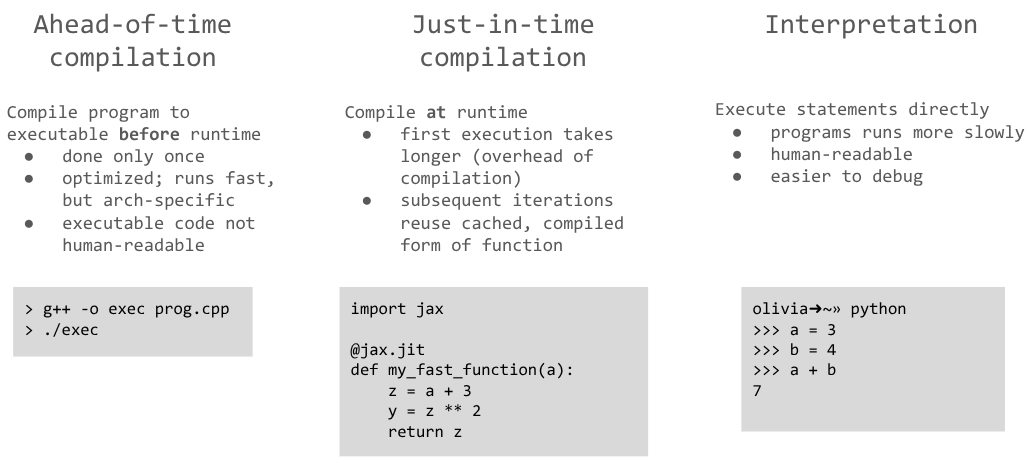

Compilation is the process of translating operations expressed in a high-level language to a low-level language. In compiled languages like C and C++, compilation happens offline prior to code execution. A compiler takes a program as input and sends it through a sequence of passes that perform tasks such as syntax analysis, code generation, and optimization. The compiler outputs a new program in assembly code, which gets passed to an assembler. The assembler translates this code into a machine-executable program that we can feed inputs to, then run 2.

Compilation is not the only way to execute a program. Python, for example, is an interpreted language. Both a source program and inputs are fed to the interpreter, which processes them line by line and directly yields the program output 2.

Compilation and interpretation each have strengths and weaknesses. Compilation generally leads to faster execution, because optimizations can consider the overall structure of a program. However, the executable code is not human-readable and thus harder to debug. Interpretation is slower, but debugging is often easier because execution can be paused to inspect the program state or view diagnostic information 2.

In between these extremes lies just-in-time compilation. Just-in-time (JIT) compilation happens during execution. If a programmer specifies a function should be JIT compiled, the first time the interpreter sees it, it will spend a little more time to construct and cache a compiled version of that function. The next time that function is executed, the compiled version can be reused, provided the structure of the inputs hasn’t changed 3.

Quantum compilation¶

Quantum compilation, like its classical counterpart, lowers an algorithm from high-level instructions to low-level instructions. The bulk of this process involves converting a circuit expressed as generic, abstract gates to a sequence of gates that satisfy the constraints of a particular hardware device. Quantum compilation also involves multiple passes through one or more intermediate representations, and both machine-independent and dependent optimizations, as depicted below.

Developing automated compilation tools is an active area of quantum software research. Even if a library contains built-in implementations of quantum circuits (e.g., the Fourier transform, or a multi-controlled operation), without a proper compiler a user would be left to optimize and map them to hardware by hand. This is a laborious (and error-prone!) process, and furthermore, is unlikely to be optimal.

Suppose we want to compile and optimize quantum circuits for Shor’s algorithm to factor an integer $N$. Recalling the pseudocode above, let’s break the algorithm down into a few distinct steps to identify where quantum compilation happens (for a full description of Shor’s algorithm, the interested reader is referred to the PennyLane Codebook).

• Randomly select an integer, $a$, between 2 and $N-1$ (double check we didn’t get lucky and $a$ has a common factor with $N$)

• Using $N$ and $a$, generate a circuit for order finding on a quantum computer. Execute it, and use the measurement results to obtain a candidate non-trivial square root

• If the square root is non-trivial, test for valid factors. Otherwise, take more measurement shots, or try a different $a$.

The key thing to note is that for every $N$ and $a$, a different quantum circuit must be generated, compiled and optimized. Even with a good compiler, this will lead to a huge computational overhead! Recall also that in a cryptographic context, $N$ relates to a public key that is unique for every entity. Moreover, for sizes of cryptographic relevance, $N$ will be a 2048-bit integer (or larger)! It would be ideal if we could reuse and share some of this work across different $a$ and $N$. To that end, JIT compilation is a worthwhile option to explore.

Quantum just-in-time compilation¶

In standard PennyLane, quantum circuit execution can be JIT compiled with JAX. To learn more, check out the JAX documentation 3 and the PennyLane demo on the subject. But this only compiles a single circuit. What about all the other code around it? What if you also wanted to optimize that quantum circuit, based on contextual information?

This is where Catalyst comes in. Catalyst enables quantum JIT (QJIT) compilation of the entire algorithm from beginning to end. On the surface, it looks to be as simple as the following:

import pennylane as qml


@qml.qjit
def shors_algorithm(N):
    # Implementation goes here
    return p, q

In practice, it is not so simple, and requires some special-purpose functions and data manipulation. But ultimately, we will show how to QJIT the most important parts such that the signature can be as minimal as this:

@qml.qjit(autograph=True, static_argnums=(1))
def shors_algorithm(N, n_bits):
    # Implementation goes here
    return p, q

Furthermore, along the way we’ll leverage the structure of $a$ to construct more optimal quantum circuits in the QJITted function.

Quantum subroutines¶

The implementation of the classical portion of Shor’s algorithm is near-identical to the pseudocode at the beginning, and can be JIT compiled essentially as-is. The quantum aspects are where challenges arise.

This section outlines the quantum circuits used in the order-finding subroutine. The presented implementation is based on that of Beauregard 4. For an integer $N$ with an $n = \lceil \log_2 N \rceil$-bit representation, we require $2n + 3$ qubits, where $n + 1$ are for computation and $n + 2$ are auxiliary.

Order finding is an application of quantum phase estimation (QPE) for the operator

where $\vert x \rangle$ is the binary representation of integer $x$, and $a$ is the randomly-generated integer discussed above. The full QPE circuit for producing a $t$-bit estimate of a phase, $\theta$, is presented below.

This high-level view hides the circuit’s complexity; the implementation details of $U_a$ are not shown, and auxiliary qubits are omitted. In what follows, we’ll leverage shortcuts afforded by Catalyst and the hybrid nature of computation. Specifically, with mid-circuit measurement and reset, we can reduce the number of estimation wires to $t=1$. Most arithmetic will be performed in the Fourier basis. Finally, with Catalyst, we can vary circuit structure based on $a$ to save resources, even though its value isn’t known until runtime.

First, we’ll use our classical knowledge of $a$ to simplify the implementation of the controlled $U_a^{2^k}$. Naively, it looks like we must apply the controlled $U_a$ operations $2^k$ times. However, note

Since $a$ is known, we can classically evaluate $a^{2^k} \pmod N$ and implement controlled-$U_{a^{2^k}}$ instead.

However, there is a tradeoff. The implementation of $U_{a^{2^k}}$ will be different for each power of $a$, so we must compile and optimize more than one circuit. On the other hand, we now run only $t$ controlled operations instead of $1 + 2 + 4 + \cdots + 2^{t-1} = 2^t - 1$. The additional compilation time is likely to be outweighed by the reduced number of function calls, especially if we can JIT compile the circuit construction.

Next, let’s zoom in on an arbitrary controlled $U_a$.

The control qubit, $\vert c\rangle$, is an estimation qubit. The register $\vert x \rangle$ and the auxiliary register contain $n$ and $n + 1$ qubits respectively, for reasons described below.

$M_a$ multiplies the contents of one register by $a$ and adds it to another register, in place and modulo $N$,

Ignoring the control qubit, we can validate that this circuit implements $U_a$:

where we’ve omitted the “mod $N$” for readability, and used the fact that the adjoint of addition is subtraction.

A high-level implementation of a controlled $M_a$ is shown below.

First, note that the controls on the quantum Fourier transforms (QFTs) are not needed. If we remove them and $\vert c \rangle = \vert 1 \rangle$, the circuit works as expected. If $\vert c \rangle = \vert 0 \rangle$, they run, but cancel each other out since none of the operations in between will execute (this optimization is broadly applicable to controlled operations, and quite useful!).

At first glance, it’s not clear how this produces $a x$. The qubits in register $\vert x \rangle$ control operations that depend on $a$ multiplied by various powers of 2. There is a QFT before and after, whose purpose is unclear, and we have yet to define the gate labelled $\Phi_+$.

The operation, $\Phi_+$, performs addition modulo $N$ in the Fourier basis 5. This is another trick that leverages prior knowledge of $a$. Rather than performing addition on bits in computational basis states, we apply a QFT, adjust the phases based on the bits of the number being added, and then an inverse QFT to obtain the result in the computational basis.

To understand how Fourier addition works, let’s begin with the simpler case of non-modular addition. The regular addition circuit, denoted by $\Phi$, is shown below.

Fourier addition of two $n$-bit numbers uses $n+1$ qubits, as it accounts for the possibility of overflow during addition (this constitutes one of our auxiliary qubits). The $\mathbf{R}_k$ are rotations that depend on the binary representation of $a$,

A detailed derivation of this circuit is included in the Appendix.

Next, we must augment Fourier addition to work modulo $N$ (i.e., $\Phi_+$). This can be done by adding an auxiliary qubit and a sequence of operations to compensate for any overflow that occurs during addition. A full explanation of Fourier addition modulo $N$ is also provided in the Appendix.

This completes our implementation of the controlled $U_{a^{2^k}}$. The full circuit, shown below, uses $t + 2n + 2$ qubits.

Taking advantage of classical information¶

Above, we incorporated information about $a$ in the controlled $U_a$ and the Fourier adder. In what follows, we identify a few other places where classical information can be leveraged.

First, consider the controlled $U_{a^{2^0}} = U_a$ at the beginning of the algorithm. The only basis state this operation applies to is $\vert 1 \rangle$, which gets mapped to $\vert a \rangle$. This is effectively just controlled addition of $a - 1$ to $1$. Since $a$ is selected from between $2$ and $N-2$ inclusive, the addition is guaranteed to never overflow. This means we can simply do a controlled Fourier addition, and save a significant number of resources!

We can also make some optimizations to the end of the algorithm by keeping track of the powers of $a$. If, at iteration $k,$ we have $a^{2^k} = 1$, no further multiplication is necessary because we would be multiplying by $1.$ In fact, we can terminate the algorithm early because we’ve found the order of $a$ is simply $2^k$.

There are also less-trivial optimizations we can make. Consider the sequence of doubly-controlled adders in the controlled $M_a$. Below, we show the initial instance where the auxiliary register is in state $\vert 0 \rangle$.

The doubly-controlled adders are each controlled on an estimation qubit and a qubit in the target register. Consider the state of the system after the initial controlled-$U_a$ (or, rather, controlled addition of $a-1$),

$$ \begin{equation*} \vert + \rangle ^{\otimes (t - 1)} \frac{1}{\sqrt{2}} \left( \vert 0 \rangle \vert 1 \rangle + \vert 1 \rangle \vert a \rangle \right). \end{equation*} $$

The next controlled operation is controlled $U_{a^2}$. Since the only two basis states present are $\vert 1 \rangle$ and $\vert a \rangle$, the only doubly-controlled $\Phi_+$ that trigger are the first one (with the second control on the bottom-most qubit) and those controlled on qubits that are $1$ in the binary representation of $a$. Thus, we only need doubly-controlled operations on qubits where the logical OR of the bit representations of $1$ and $a$ are $1!$ We present here an example for $a = 5$.

Depending on $a$, this could be major savings, especially at the beginning of the algorithm where very few basis states are involved. The same trick can be used after the controlled SWAPs, as demonstrated below.

Eventually we expect diminishing returns because each controlled $U_{a^{2^k}}$ contributes more terms to the superposition. Before the $k-$ th iteration, the control register contains a superposition of $\{ \vert a^j \rangle \}, j = 0, \ldots, 2^{k - 1}$ (inclusive), and after the controlled SWAPs, the relevant superposition is $\{ \vert a^j \rangle \}, j = 2^{k-1}+1, \ldots, 2^{k} - 1$.

The “single-qubit” QPE¶

The optimizations in the previous section focus on reducing the number of operations (circuit depth). The number of qubits (circuit width) can be reduced using a well-known trick for the QFT. Let’s return to the QPE circuit and expand the final inverse QFT.

Consider the bottom estimation wire. After the final Hadamard, this qubit only applies controlled operations. Rather than preserving its state, we can make a measurement and apply rotations classically controlled on the outcome (essentially, the reverse of the deferred measurement process). The same can be done for the next estimation wire; rotations applied to the remaining estimation wires then depend on the previous two measurement outcomes. We can repeat this process for all remaining estimation wires. Moreover, we can simply reuse the same qubit for all estimation wires, provided we keep track of the measurement outcomes classically, and apply an appropriate $RZ$ rotation,

$$ \begin{split}\mathbf{M}_{k} = \begin{pmatrix} 1 & 0 \\ 0 & e^{-2\pi i\sum_{\ell=0}^{k} \frac{\theta_{\ell}}{2^{k + 2 - \ell}}} \end{pmatrix}.\end{split} $$

This allows us to reformulate the QPE algorithm as:

A step-by-step example is included in the Appendix.

The final Shor circuit¶

Replacing the controlled-$U_a$ with the subroutines derived above, we see Shor’s algorithm requires $2n + 3$ qubits in total, as summarized in the graphic below.

From this, we see some additional optimizations are possible. In particular, the QFT and inverse QFT are applied before and after each $M_a$ block, so we can remove the ones that occur between the different controlled $U_a$ (the only ones remaining are the very first and last, and those before and after the controlled SWAPs).

Catalyst implementation¶

Circuits in hand, we now present the full implementation of Shor’s algorithm.

First, we require some utility functions for modular arithmetic: exponentiation by repeated squaring (to avoid overflow when exponentiating large integers), and computation of inverses modulo $N$. Note that the first can be done in regular Python with the built-in pow method. However, it is not JIT-compatible and there is no equivalent in JAX NumPy.

from jax import numpy as jnp


def repeated_squaring(a, exp, N):
    """QJIT-compatible function to determine (a ** exp) % N.

    Source: https://en.wikipedia.org/wiki/Modular_exponentiation#Left-to-right_binary_method
    """
    bits = jnp.array(jnp.unpackbits(jnp.array([exp]).view("uint8"), bitorder="little"))
    total_bits_one = jnp.sum(bits)

    result = jnp.array(1, dtype=jnp.int32)
    x = jnp.array(a, dtype=jnp.int32)

    idx, num_bits_added = 0, 0

    while num_bits_added < total_bits_one:
        if bits[idx] == 1:
            result = (result * x) % N
            num_bits_added += 1
        x = (x**2) % N
        idx += 1

    return result


def modular_inverse(a, N):
    """QJIT-compatible modular multiplicative inverse routine.

    Source: https://en.wikipedia.org/wiki/Extended_Euclidean_algorithm#Modular_integers
    """
    t = jnp.array(0, dtype=jnp.int32)
    newt = jnp.array(1, dtype=jnp.int32)
    r = jnp.array(N, dtype=jnp.int32)
    newr = jnp.array(a, dtype=jnp.int32)

    while newr != 0:
        quotient = r // newr
        t, newt = newt, t - quotient * newt
        r, newr = newr, r - quotient * newr

    if t < 0:
        t = t + N

    return t

We also require a few helper functions for phase estimation.

def fractional_binary_to_float(sample):
    """Convert an n-bit sample [k1, k2, ..., kn] to a floating point
    value using fractional binary representation,

        k = (k1 / 2) + (k2 / 2 ** 2) + ... + (kn / 2 ** n)
    """
    powers_of_two = 2 ** (jnp.arange(len(sample)) + 1)
    return jnp.sum(sample / powers_of_two)


def as_integer_ratio(f):
    """QJIT compatible conversion of a floating point number to two 64-bit
    integers such that their quotient equals the input to available precision.
    """
    mantissa, exponent = jnp.frexp(f)

    i = 0
    while jnp.logical_and(i < 300, mantissa != jnp.floor(mantissa)):
        mantissa = mantissa * 2.0
        exponent = exponent - 1
        i += 1

    numerator = jnp.asarray(mantissa, dtype=jnp.int64)
    denominator = jnp.asarray(1, dtype=jnp.int64)
    abs_exponent = jnp.abs(exponent)

    if exponent > 0:
        num_to_return, denom_to_return = numerator << abs_exponent, denominator
    else:
        num_to_return, denom_to_return = numerator, denominator << abs_exponent

    return num_to_return, denom_to_return


def phase_to_order(phase, max_denominator):
    """Given some floating-point phase, estimate integers s, r such that s / r =
    phase.  Uses a JIT-compatible re-implementation of Fraction.limit_denominator.
    """
    numerator, denominator = as_integer_ratio(phase)

    order = 0

    if denominator <= max_denominator:
        order = denominator

    else:
        p0, q0, p1, q1 = 0, 1, 1, 0

        a = numerator // denominator
        q2 = q0 + a * q1

        while q2 < max_denominator:
            p0, q0, p1, q1 = p1, q1, p0 + a * p1, q2
            numerator, denominator = denominator, numerator - a * denominator

            a = numerator // denominator
            q2 = q0 + a * q1

        k = (max_denominator - q0) // q1
        bound1 = p0 + k * p1 / q0 + k * q1
        bound2 = p1 / q1

        loop_res = 0

        if jnp.abs(bound2 - phase) <= jnp.abs(bound1 - phase):
            loop_res = q1
        else:
            loop_res = q0 + k * q1

        order = loop_res

    return order

Below, we have the implementations of the arithmetic circuits derived in the previous section.

import pennylane as qml
import catalyst
from catalyst import measure

catalyst.autograph_strict_conversion = True


def QFT(wires):
    """The standard QFT, redefined because the PennyLane one uses terminal SWAPs."""
    shifts = jnp.array([2 * jnp.pi * 2**-i for i in range(2, len(wires) + 1)])

    for i in range(len(wires)):
        qml.Hadamard(wires[i])

        for j in range(len(shifts) - i):
            qml.ControlledPhaseShift(shifts[j], wires=[wires[(i + 1) + j], wires[i]])


def fourier_adder_phase_shift(a, wires):
    """Sends QFT(|b>) -> QFT(|b + a>)."""
    n = len(wires)
    a_bits = jnp.unpackbits(jnp.array([a]).view("uint8"), bitorder="little")[:n][::-1]
    powers_of_two = jnp.array([1 / (2**k) for k in range(1, n + 1)])
    phases = jnp.array([jnp.dot(a_bits[k:], powers_of_two[: n - k]) for k in range(n)])

    for i in range(len(wires)):
        if phases[i] != 0:
            qml.PhaseShift(2 * jnp.pi * phases[i], wires=wires[i])


def doubly_controlled_adder(N, a, control_wires, wires, aux_wire):
    """Sends |c>|x>QFT(|b>)|0> -> |c>|x>QFT(|b + c x a) mod N>)|0>."""
    qml.ctrl(fourier_adder_phase_shift, control=control_wires)(a, wires)

    qml.adjoint(fourier_adder_phase_shift)(N, wires)

    qml.adjoint(QFT)(wires)
    qml.CNOT(wires=[wires[0], aux_wire])
    QFT(wires)

    qml.ctrl(fourier_adder_phase_shift, control=aux_wire)(N, wires)

    qml.adjoint(qml.ctrl(fourier_adder_phase_shift, control=control_wires))(a, wires)

    qml.adjoint(QFT)(wires)
    qml.PauliX(wires=wires[0])
    qml.CNOT(wires=[wires[0], aux_wire])
    qml.PauliX(wires=wires[0])
    QFT(wires)

    qml.ctrl(fourier_adder_phase_shift, control=control_wires)(a, wires)


def controlled_ua(N, a, control_wire, target_wires, aux_wires, mult_a_mask, mult_a_inv_mask):
    """Sends |c>|x>|0> to |c>|ax mod N>|0> if c = 1.

    The mask arguments allow for the removal of unnecessary double-controlled additions.
    """
    n = len(target_wires)

    # Apply double-controlled additions where bits of a can be 1.
    for i in range(n):
        if mult_a_mask[n - i - 1] > 0:
            pow_a = (a * (2**i)) % N
            doubly_controlled_adder(
                N, pow_a, [control_wire, target_wires[n - i - 1]], aux_wires[:-1], aux_wires[-1]
            )

    qml.adjoint(QFT)(wires=aux_wires[:-1])

    # Controlled SWAP the target and aux wires; note that the top-most aux wire
    # is only to catch overflow, so we ignore it here.
    for i in range(n):
        qml.CNOT(wires=[aux_wires[i + 1], target_wires[i]])
        qml.Toffoli(wires=[control_wire, target_wires[i], aux_wires[i + 1]])
        qml.CNOT(wires=[aux_wires[i + 1], target_wires[i]])

    # Adjoint of controlled multiplication with the modular inverse of a
    a_mod_inv = modular_inverse(a, N)

    QFT(wires=aux_wires[:-1])

    for i in range(n):
        if mult_a_inv_mask[i] > 0:
            pow_a_inv = (a_mod_inv * (2 ** (n - i - 1))) % N
            qml.adjoint(doubly_controlled_adder)(
                N,
                pow_a_inv,
                [control_wire, target_wires[i]],
                aux_wires[:-1],
                aux_wires[-1],
            )

Finally, let’s put it all together in the core portion of Shor’s algorithm, under the @qml.qjit decorator.

from jax import random


# ``n_bits`` is a static argument because ``jnp.arange`` does not currently
# support dynamically-shaped arrays when jitted.
@qml.qjit(autograph=True, static_argnums=(3))
def shors_algorithm(N, key, a, n_bits, n_trials):
    # If no explicit a is passed (denoted by a = 0), randomly choose a
    # non-trivial value of a that does not have a common factor with N.
    if a == 0:
        while jnp.gcd(a, N) != 1:
            key, subkey = random.split(key)
            a = random.randint(subkey, (1,), 2, N - 1)[0]

    est_wire = 0
    target_wires = jnp.arange(n_bits) + 1
    aux_wires = jnp.arange(n_bits + 2) + n_bits + 1

    dev = qml.device("lightning.qubit", wires=2 * n_bits + 3, shots=1)

    @qml.qnode(dev)
    def run_qpe():
        meas_results = jnp.zeros((n_bits,), dtype=jnp.int32)
        cumulative_phase = jnp.array(0.0)
        phase_divisors = 2.0 ** jnp.arange(n_bits + 1, 1, -1)

        a_mask = jnp.zeros(n_bits, dtype=jnp.int64)
        a_mask = a_mask.at[0].set(1) + jnp.array(
            jnp.unpackbits(jnp.array([a]).view("uint8"), bitorder="little")[:n_bits]
        )
        a_inv_mask = a_mask

        # Initialize the target register of QPE in |1>
        qml.PauliX(wires=target_wires[-1])

        # The "first" QFT on the auxiliary register; required here because
        # QFT are largely omitted in the modular arithmetic routines due to
        # cancellation between adjacent blocks of the algorithm.
        QFT(wires=aux_wires[:-1])

        # First iteration: add a - 1 using the Fourier adder.
        qml.Hadamard(wires=est_wire)

        QFT(wires=target_wires)
        qml.ctrl(fourier_adder_phase_shift, control=est_wire)(a - 1, target_wires)
        qml.adjoint(QFT)(wires=target_wires)

        # Measure the estimation wire and store the phase
        qml.Hadamard(wires=est_wire)
        meas_results[0] = measure(est_wire, reset=True)
        cumulative_phase = -2 * jnp.pi * jnp.sum(meas_results / jnp.roll(phase_divisors, 1))

        # For subsequent iterations, determine powers of a, and apply controlled
        # U_a when the power is not 1. Unnecessary double-controlled operations
        # are removed, based on values stored in the two "mask" variables.
        powers_cua = jnp.array([repeated_squaring(a, 2**p, N) for p in range(n_bits)])

        loop_bound = n_bits
        if jnp.min(powers_cua) == 1:
            loop_bound = jnp.argmin(powers_cua)

        # The core of the QPE routine
        for pow_a_idx in range(1, loop_bound):
            pow_cua = powers_cua[pow_a_idx]

            if not jnp.all(a_inv_mask):
                for power in range(2**pow_a_idx, 2 ** (pow_a_idx + 1)):
                    next_pow_a = jnp.array([repeated_squaring(a, power, N)])
                    a_inv_mask = a_inv_mask + jnp.array(
                        jnp.unpackbits(next_pow_a.view("uint8"), bitorder="little")[:n_bits]
                    )

            qml.Hadamard(wires=est_wire)

            controlled_ua(N, pow_cua, est_wire, target_wires, aux_wires, a_mask, a_inv_mask)

            a_mask = a_mask + a_inv_mask
            a_inv_mask = jnp.zeros_like(a_inv_mask)

            # Rotate the estimation wire by the accumulated phase, then measure and reset it
            qml.PhaseShift(cumulative_phase, wires=est_wire)
            qml.Hadamard(wires=est_wire)
            meas_results[pow_a_idx] = measure(est_wire, reset=True)
            cumulative_phase = (
                -2 * jnp.pi * jnp.sum(meas_results / jnp.roll(phase_divisors, pow_a_idx + 1))
            )

        # The adjoint partner of the QFT from the beginning, to reset the auxiliary register
        qml.adjoint(QFT)(wires=aux_wires[:-1])

        return meas_results

    # The "classical" part of Shor's algorithm: run QPE, extract a candidate
    # order, then check whether a valid solution is found. We run multiple trials,
    # and return a success probability.
    p, q = jnp.array(0, dtype=jnp.int32), jnp.array(0, dtype=jnp.int32)
    successful_trials = jnp.array(0, dtype=jnp.int32)

    for _ in range(n_trials):
        sample = run_qpe()
        phase = fractional_binary_to_float(sample)
        guess_r = phase_to_order(phase, N)

        # If the guess order is even, we may have a non-trivial square root.
        # If so, try to compute p and q.
        if guess_r % 2 == 0:
            guess_square_root = repeated_squaring(a, guess_r // 2, N)

            if guess_square_root != 1 and guess_square_root != N - 1:
                candidate_p = jnp.gcd(guess_square_root - 1, N).astype(jnp.int32)

                if candidate_p != 1:
                    candidate_q = N // candidate_p
                else:
                    candidate_q = jnp.gcd(guess_square_root + 1, N).astype(jnp.int32)

                    if candidate_q != 1:
                        candidate_p = N // candidate_q

                if candidate_p * candidate_q == N:
                    p, q = candidate_p, candidate_q
                    successful_trials += 1

    return p, q, key, a, successful_trials / n_trials

Let’s ensure the algorithm can successfully factor a small case, $N = 15$. We will randomly generate $a$ within the function, and do 100 shots of the phase estimation procedure to get an idea of the success probability.

key = random.PRNGKey(123456789)

N = 15
n_bits = int(jnp.ceil(jnp.log2(N)))

p, q, _, a, success_prob = shors_algorithm(N, key.astype(jnp.uint32), 0, n_bits, 100)

print(f"Found {N} = {p} x {q} (using random a = {a}) with probability {success_prob:.2f}")

Found 15 = 5 x 3 (using random a = 8) with probability 0.67

Performance and validation¶

Next, let’s verify QJIT compilation is happening properly. We will run the algorithm for different $N$ with the same bit width, and different values of $a$. We expect the first execution, for the very first $N$ and $a$, to take longer than the rest.

import time
import matplotlib.pyplot as plt

# Some 6-bit numbers
N_values = [33, 39, 51, 55, 57]
n_bits = int(jnp.ceil(jnp.log2(N_values[0])))

num_a = 3

execution_times = []

key = random.PRNGKey(1010101)

for N in N_values:
    unique_a = []

    while len(unique_a) != num_a:
        key, subkey = random.split(key.astype(jnp.uint32))
        a = random.randint(subkey, (1,), 2, N - 1)[0]
        if jnp.gcd(a, N) == 1 and a not in unique_a:
            unique_a.append(a)

    for a in unique_a:
        start = time.time()
        p, q, key, _, _ = shors_algorithm(N, key.astype(jnp.uint32), a, n_bits, 1)
        end = time.time()
        execution_times.append((N, a, end - start))


labels = [f"{ex[0]}, {int(ex[1])}" for ex in execution_times]
times = [ex[2] for ex in execution_times]

plt.scatter(range(len(times)), times, c=[ex[0] for ex in execution_times])
plt.xticks(range(len(times)), labels=labels, rotation=80)
plt.xlabel("N, a")
plt.ylabel("Runtime (s)")
plt.tight_layout()
plt.show()

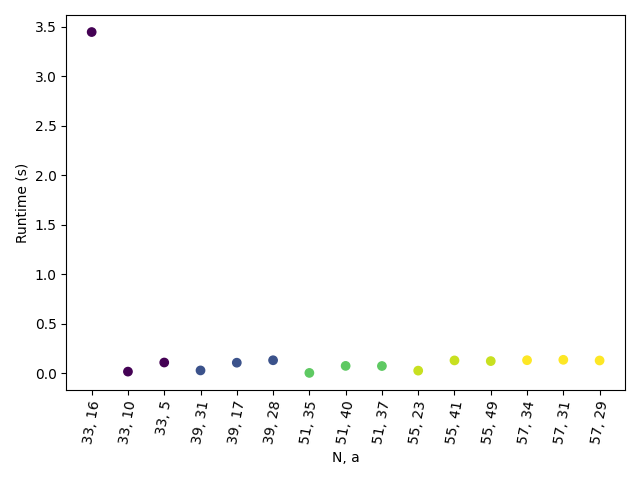

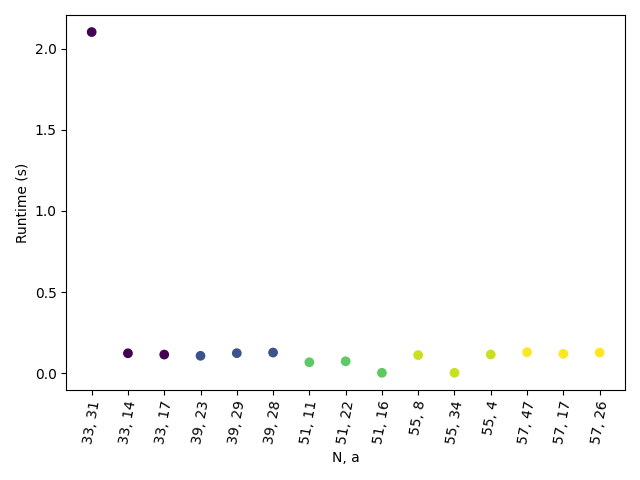

This plot demonstrates exactly what we suspect: changing $N$ and $a$ does not lead to recompilation of the program! This will be particularly valuable for large $N$, where traditional circuit processing times can grow very large.

To show this more explicitly, let’s fix $a = 2$, and generate Shor circuits for many different $N$ using both the QJIT version, and the plain PennyLane version below. Note the standard PennyLane version makes use of many of the same subroutines and optimizations, but due to limitations on how PennyLane handles mid-circuit measurements, we must use qml.cond and explicit qml.PhaseShift gates.

def shors_algorithm_no_qjit(N, key, a, n_bits, n_trials):
    est_wire = 0
    target_wires = list(range(1, n_bits + 1))
    aux_wires = list(range(n_bits + 1, 2 * n_bits + 3))

    dev = qml.device("lightning.qubit", wires=2 * n_bits + 3, shots=1)

    @qml.qnode(dev)
    def run_qpe():
        a_mask = jnp.zeros(n_bits, dtype=jnp.int64)
        a_mask = a_mask.at[0].set(1) + jnp.array(
            jnp.unpackbits(jnp.array([a]).view("uint8"), bitorder="little")[:n_bits]
        )
        a_inv_mask = a_mask

        measurements = []

        qml.PauliX(wires=target_wires[-1])

        QFT(wires=aux_wires[:-1])

        qml.Hadamard(wires=est_wire)

        QFT(wires=target_wires)
        qml.ctrl(fourier_adder_phase_shift, control=est_wire)(a - 1, target_wires)
        qml.adjoint(QFT)(wires=target_wires)

        qml.Hadamard(wires=est_wire)
        measurements.append(qml.measure(est_wire, reset=True))

        powers_cua = jnp.array([repeated_squaring(a, 2**p, N) for p in range(n_bits)])

        loop_bound = n_bits
        if jnp.min(powers_cua) == 1:
            loop_bound = jnp.argmin(powers_cua)

        for pow_a_idx in range(1, loop_bound):
            pow_cua = powers_cua[pow_a_idx]

            if not jnp.all(a_inv_mask):
                for power in range(2**pow_a_idx, 2 ** (pow_a_idx + 1)):
                    next_pow_a = jnp.array([repeated_squaring(a, power, N)])
                    a_inv_mask = a_inv_mask + jnp.array(
                        jnp.unpackbits(next_pow_a.view("uint8"), bitorder="little")[:n_bits]
                    )

            qml.Hadamard(wires=est_wire)

            controlled_ua(N, pow_cua, est_wire, target_wires, aux_wires, a_mask, a_inv_mask)

            a_mask = a_mask + a_inv_mask
            a_inv_mask = jnp.zeros_like(a_inv_mask)

            # The main difference with the QJIT version
            for meas_idx, meas in enumerate(measurements):
                qml.cond(meas, qml.PhaseShift)(
                    -2 * jnp.pi / 2 ** (pow_a_idx + 2 - meas_idx), wires=est_wire
                )

            qml.Hadamard(wires=est_wire)
            measurements.append(qml.measure(est_wire, reset=True))

        qml.adjoint(QFT)(wires=aux_wires[:-1])

        return qml.sample(measurements)

    p, q = jnp.array(0, dtype=jnp.int32), jnp.array(0, dtype=jnp.int32)
    successful_trials = jnp.array(0, dtype=jnp.int32)

    for _ in range(n_trials):
        sample = jnp.array([run_qpe()])
        phase = fractional_binary_to_float(sample)
        guess_r = phase_to_order(phase, N)

        if guess_r % 2 == 0:
            guess_square_root = repeated_squaring(a, guess_r // 2, N)

            if guess_square_root != 1 and guess_square_root != N - 1:
                candidate_p = jnp.gcd(guess_square_root - 1, N).astype(jnp.int32)

                if candidate_p != 1:
                    candidate_q = N // candidate_p
                else:
                    candidate_q = jnp.gcd(guess_square_root + 1, N).astype(jnp.int32)

                    if candidate_q != 1:
                        candidate_p = N // candidate_q

                if candidate_p * candidate_q == N:
                    p, q = candidate_p, candidate_q
                    successful_trials += 1

    return p, q, key, a, successful_trials / n_trials

Let’s do the same experiment as before, with three different choices of $a$ for each $N$.

execution_times_qjit = []
execution_times_standard = []

key = random.PRNGKey(1010101)

for N in N_values:
    unique_a = []

    while len(unique_a) != num_a:
        key, subkey = random.split(key.astype(jnp.uint32))
        a = random.randint(subkey, (1,), 2, N - 1)[0]
        if jnp.gcd(a, N) == 1 and a not in unique_a:
            unique_a.append(a)

    for a in unique_a:
        # QJIT times
        start = time.time()
        p, q, _, _, _ = shors_algorithm(N, key.astype(jnp.uint32), a, n_bits, 1)
        end = time.time()
        execution_times_qjit.append((N, a, end - start))

        # No QJIT times
        start = time.time()
        p, q, _, _, _ = shors_algorithm_no_qjit(N, key.astype(jnp.uint32), a, n_bits, 1)
        end = time.time()
        execution_times_standard.append((N, a, end - start))

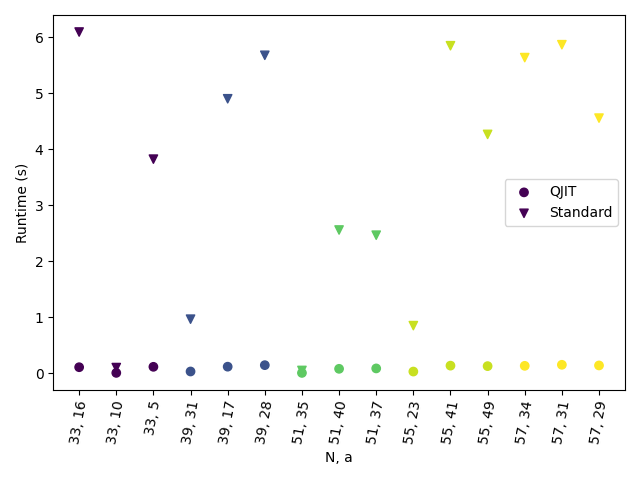

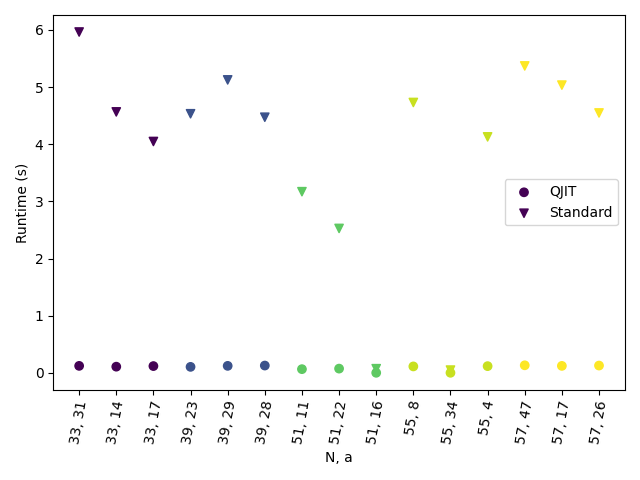

labels = [f"{ex[0]}, {int(ex[1])}" for ex in execution_times_qjit]
colours = [ex[0] for ex in execution_times_qjit]

times_qjit = [ex[2] for ex in execution_times_qjit]
times_standard = [ex[2] for ex in execution_times_standard]


plt.scatter(range(len(times)), times_qjit, c=colours, label="QJIT")
plt.scatter(range(len(times)), times_standard, c=colours, marker="v", label="Standard")
plt.xticks(range(0, len(times)), labels=labels, rotation=80)
plt.xlabel("N, a")
plt.ylabel("Runtime (s)")
plt.legend()
plt.tight_layout()
plt.show()

Without QJIT, different values of $a$ for the same $N$ can have wildly different execution times! This is largely due to the $a$-specific optimizations. When we use QJIT, we get the benefits of that optimization and comparable performance across any choice of $a$.

Finally, let’s compare different values of N with same choice of $a$.

N_values = [15, 21, 33, 39, 51, 55, 57, 65]
execution_times_qjit = []
execution_times_standard = []

for N in N_values:
    start = time.time()
    p, q, key, _, _ = shors_algorithm(N, key.astype(jnp.uint32), 2, n_bits, 1)
    end = time.time()
    execution_times_qjit.append(end - start)

    start = time.time()
    p, q, key, _, _ = shors_algorithm_no_qjit(N, key.astype(jnp.uint32), 2, n_bits, 1)
    end = time.time()
    execution_times_standard.append(end - start)

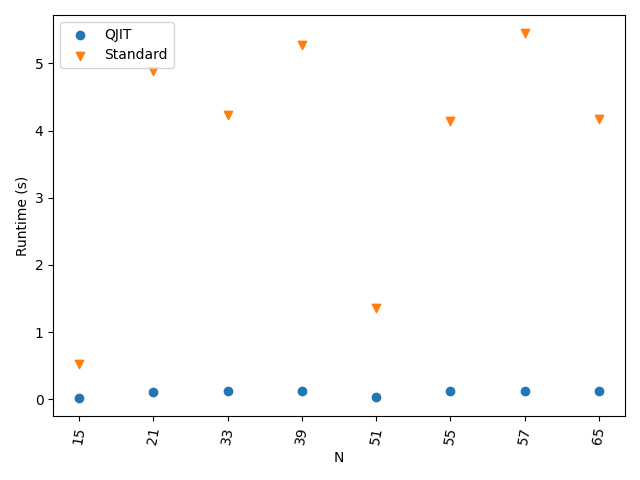

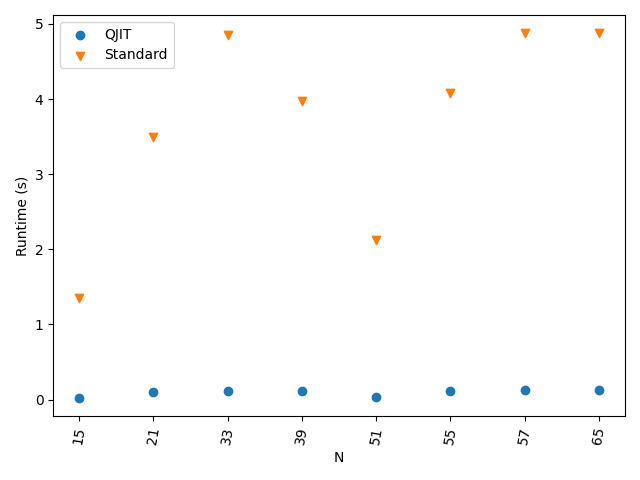

plt.scatter(range(len(N_values)), execution_times_qjit, label="QJIT")
plt.scatter(range(len(N_values)), execution_times_standard, marker="v", label="Standard")
plt.xticks(range(0, len(N_values)), labels=N_values, rotation=80)
plt.xlabel("N")
plt.ylabel("Runtime (s)")
plt.legend()
plt.tight_layout()
plt.show()

Here we observe that without QJIT, the runtime for different $N$, even with the same bit width, may differ greatly. QJIT enables more consistent performance, and greatly benefits from reuse of the cached program. Preliminary experiments show this to be true even for larger problem sizes!

Standard Fourier addition¶

We recall the circuit from the main text.

In the third circuit, we’ve absorbed the Fourier transforms into the basis states, and denoted this by calligraphic letters. The $\mathbf{R}_k$ are phase shifts based on $a$, and will be described below.

To understand how Fourier addition works, we begin by revisiting the QFT.

In this circuit we define the phase gate

The qubits are ordered using big endian notation. For an $n$-bit integer $b$, $\vert b\rangle = \vert b_{n-1} \cdots b_0\rangle$ and $b = \sum_{k=0}^{n-1} 2^k b_k$.

Suppose we wish to add $a$ to $b$. We can add a new register prepared in $\vert a \rangle$, and use its qubits to control the addition of phases to qubits in $\vert b \rangle$ (after a QFT is applied) in a very particular way:

Each qubit in $\vert b \rangle$ picks up a phase that depends on the bits in $a$. In particular, the $k$’th bit of $b$ accumulates information about all the bits in $a$ with an equal or lower index, $a_0, \ldots, a_{k}$. This adds $a_k$ to $b_k$, and the cumulative effect adds $a$ to $b$, up to an inverse QFT.

However, we must be careful. Fourier basis addition is not automatically modulo $N$. If the sum $b + a$ requires $n+ 1$ bits, it will overflow. To handle that, one extra qubit is added to the $\vert b\rangle$ register (initialized to $\vert 0 \rangle$). This is the source of one of the auxiliary qubits mentioned earlier.

In our case, a second register of qubits is not required. Since we know $a$ in advance, we can precompute the amount of phase to apply: qubit $\vert b_k \rangle$ must be rotated by $\sum_{\ell=0}^{k} \frac{a_\ell}{2^{\ell+1}}$. We’ll express this as a new gate,

The final circuit for the Fourier adder is

As one may expect, $\Phi^\dagger$ performs subtraction. However, we must also consider the possibility of underflow.

Doubly-controlled Fourier addition modulo $N$¶

Let’s analyze below circuit, keeping in mind $a < N$ and $b < N$, and the main register has $n + 1$ bits.

Suppose both control qubits are $\vert 1 \rangle$. We add $a$ to $b$, then subtract $N$. If $a + b \geq N$, we get overflow on the top qubit (which was included to account for precisely this), but subtraction gives us the correct result modulo $N$. After shifting back to the computational basis with the $QFT^\dagger$, the topmost qubit is in $\vert 0 \rangle$ so the CNOT does not trigger. Next, we subtract $a$ from the register, in state $\vert a + b - N \pmod N \rangle$, to obtain $\vert b - N \rangle$. Since $b < N$, there is underflow. The top qubit, now in state $\vert 1 \rangle$, does not trigger the controlled-on-zero CNOT, and the auxiliary qubit is untouched.

If instead $a + b < N$, we subtracted $N$ for no reason, leading to underflow. The topmost qubit is $\vert 1 \rangle$, the CNOT will trigger, and $N$ gets added back. The register then contains $\vert b + a \rangle$. Subtracting $a$ puts the register in state $\vert b \rangle$, which by design will not overflow; the controlled-on-zero CNOT triggers, and the auxiliary qubit is returned to $\vert 0 \rangle$.

If the control qubits are not both $\vert 1 \rangle$, $N$ is subtracted and the CNOT triggers (since $b < N$), but $N$ is always added back. By similar reasoning, the controlled-on-zero CNOT always triggers and correctly uncomputes the auxiliary qubit.

Recall that $\Phi_+$ is used in $M_a$ to add $2^{k}a$ to $b$ (controlled on $x_{k}$) in the Fourier basis. In total, we obtain (modulo $N$)

QPE with one estimation wire¶

Here we show how the inverse QFT in QPE can be implemented using a single estimation wire when mid-circuit measurement and feedforward are available. Our starting point is the full algorithm below.

Look carefully at the qubit in $\vert \theta_0\rangle$. After the final Hadamard, it is used only for controlled gates. Thus, we can just measure it and apply subsequent operations controlled on the classical outcome, $\theta_0$.

However, we can do better if we can directly modify the circuit based on the measurement outcomes. Instead of applying controlled $R^\dagger_2$, we can apply $R^\dagger$ where the rotation angle is 0 if $\theta_0 = 0$, and $-2\pi i/2^2$ if $\theta_0 = 1$, i.e., $R^\dagger_{2 \theta_0}$. The same can be done for all other gates controlled on $\theta_0$.

We’ll leverage this trick again with the second-last estimation qubit. Moreover, we can make a further improvement by noting that once the last qubit is measured, we can reset and repurpose it to play the role of the second-last qubit.

Next, we adjust rotation angles based on measurement values, removing the need for classical controls.

We can do this for all remaining estimation qubits, adding more rotations depending on previous measurement outcomes.

Finally, since these are all $RZ$, we can merge them. Let

With a bit of index gymnastics, we obtain our final QPE algorithm with a single estimation qubit:
